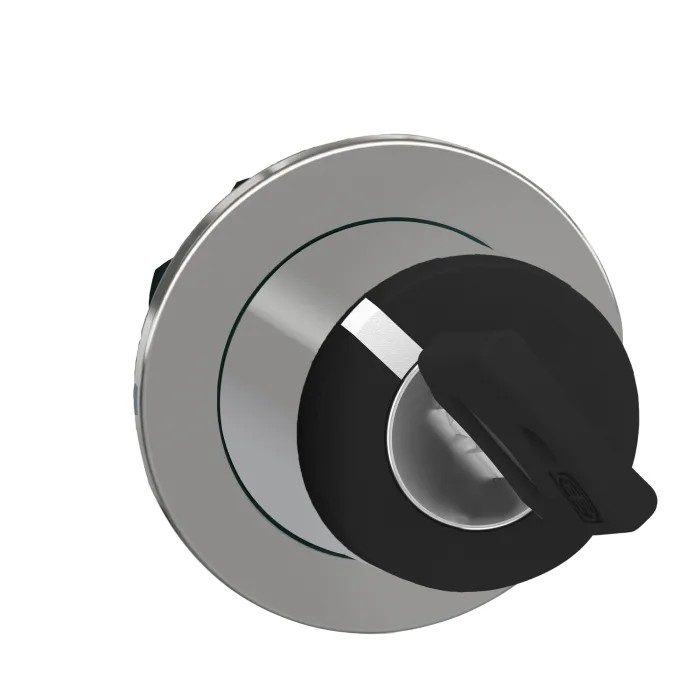

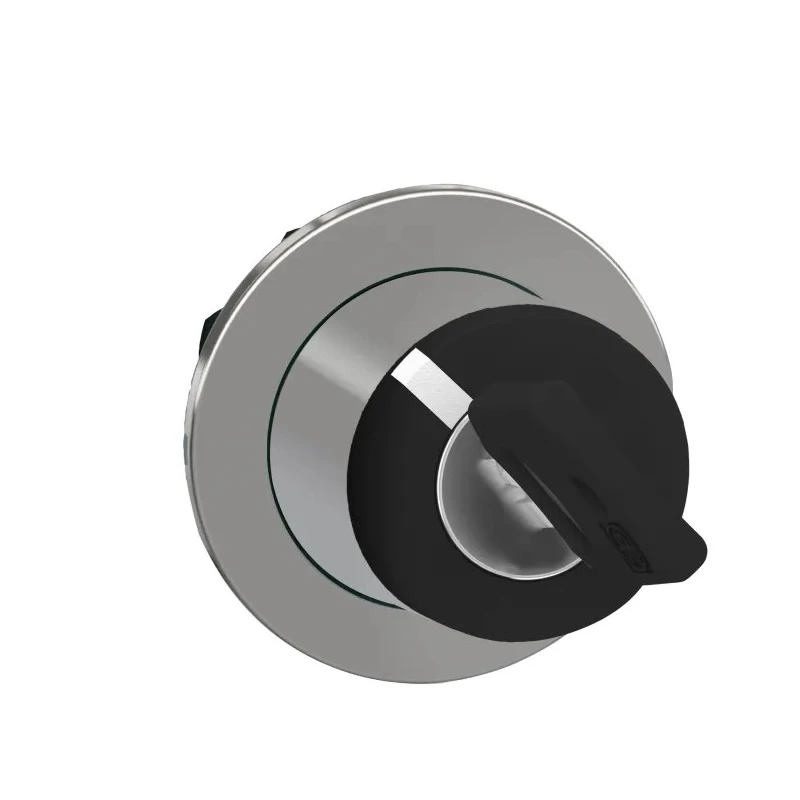

Schneider Electric Harmony 2-position Key Switch Head, Round Key, Stay Put Operation, 30 mm Cutout ZB4FG2

Schneider Electric ZB4FG2 Harmony series 2-position Key Switch Head features a stay put switch operation designed for robust industrial and commercial panel control applications. It is engineered with a 30 mm cutout diameter, round key type, and a 90° angle of throw, providing intuitive and secure switching. This key switch is rated for IP67, IP66, and IP69K ingress protection, making it highly resistant to dust, water, and harsh environments.

The switch head boasts a mechanical life of one million cycles, ensuring long-term reliability under frequent use. It meets numerous international standards and approvals including UL 508, IEC 60529, EN/IEC 60947-1 series, CSA C22.2 No 14, EAC, CCC, and CSA, highlighting its compliance and quality.

Designed with high vibration resistance and shake-proof terminal screws, this switch head offers secure connections and operational stability. A large set of accessories allows customization for different panel requirements. Multiple connection methods such as screw clamp, connector, Faston connector, spring terminal, or printed circuit board options increase versatility.

Ideal for use across various segments including industrial machinery, packaging, material handling, and control panels. It performs excellently in harsh environments such as food and beverage processing, automotive applications, mining, water treatment, and public infrastructure.

Flush mounting provisions and modular design simplify installation and maintenance. The wide range of contact blocks available facilitates application-specific configurations, from low current to high power switching needs.

Compact 30 mm cutout diameter suitable for panel mounting. Two-position switch operation with stay put mechanism. Round key type provides secure control. IP67, IP66, and IP69K ratings for excellent ingress protection. 90° angle of throw for precise switching action.

Mechanical life of up to 1,000,000 cycles ensuring durability. Certified to multiple international standards including UL 508 and IEC 60947 series. High vibration resistance with shake-proof terminal screws. Various connection types available including screw clamp and Faston connectors.

Suitable for demanding industrial and infrastructure applications. Browse the comprehensive range of Schneider Electric Harmony Key Switch Heads on EnvMart for dependable quality and advanced operational features.
