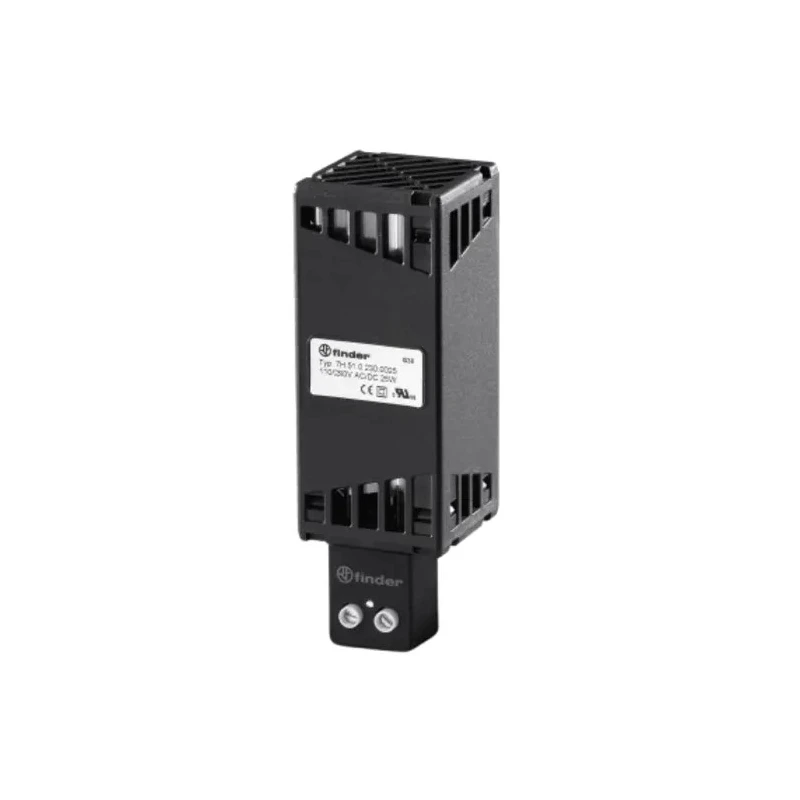

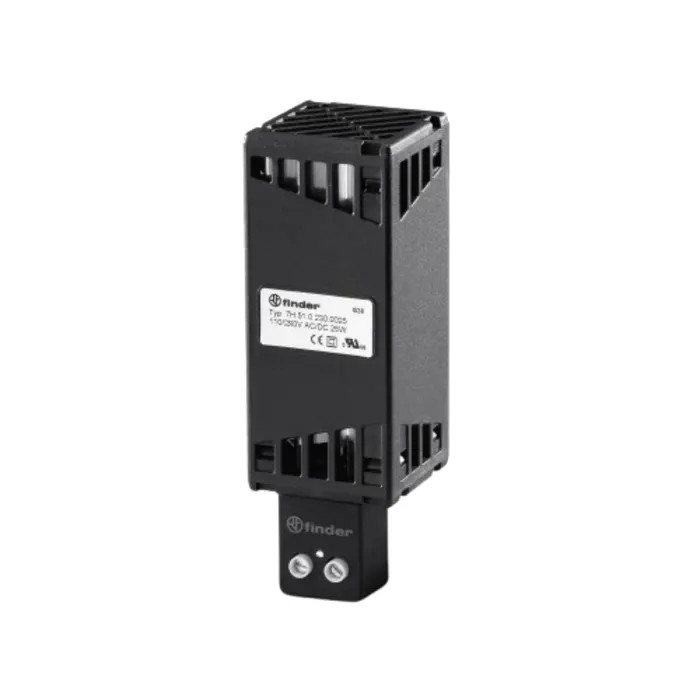

Finder 50 °C Enclosure Heater 110V AC 230V AC 25W Output Self-Regulating PTC Resistor 7H.51.0.230.0025
Specifications
| Country of Origin | Italy |
|---|---|
| Frequency | 60Hz |
| Brand | Finder |
| Air Flow | 30m³/h |
| Model | 7H.51.0.230.0025 |
| Connection Type | Screw |
| Depth | 41mm |
| IP Rating | IP20 |
| Width | 41mm |
| Output Power | 25W |
| Mount Type | DIN Rail |
| Series | 7h |
| Input power | 25W |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -45°C |
| Nominal Current | 0.13A |
| Surface Temperature | 50°C |
| Supply Voltage | 110, 230V ac |
| Mounting Position | Vertical |
| Standards/Approvals | UL, EAC, CE |
Key Features
- The self-regulating PTC resistor ensures stable and safe heating performance.
- Designed with a safe-touch rugged plastic housing to prevent accidental burns.
- Compact dimensions of 41mm width, 41mm depth, and vertical mounting optimize installation space.
- Equipped with screw connection type and DIN rail mounting for easy attachment.
- IP20 rated enclosure suitable for indoor electrical panel environments.
- Operates reliably in a wide temperature range from -45°C to 50°C maximum surface temperature.
- Nominal current is low at 0.13A, working at 60Hz frequency.
- Certified to UL, EAC, and CE standards to meet safety and quality requirements.
Product Description
Finder 7H.51.0.230.0025 is a high-quality enclosure heater designed for effective temperature maintenance inside electrical cabinets and enclosures. It operates with a supply voltage range of 110V to 230V AC and delivers an output power of 25W through a self-regulating PTC resistor, which adjusts heating output based on ambient conditions for safety and efficiency.
This enclosure heater has compact dimensions of 41mm width, 41mm depth, and mounts vertically via a DIN rail system using screw connections, enabling easy and secure installation in standard electrical distribution panels.
The device features a rugged plastic housing with a safe-touch design to prevent accidental burns, certified with UL, EAC, and CE approvals. It is IP20 rated, ideal for indoor environments, and can operate in ambient temperatures ranging from -45°C up to a maximum surface temperature of 50°C.
This enclosure heater is particularly useful in industrial, commercial, and manufacturing applications such as automatic car washes to prevent freezing, hoists and cranes for temperature stability, drying kilns for efficient heat control, and forced-air ventilation systems to enhance airflow.
The self-regulating PTC resistor ensures consistent heating. Safe-touch plastic housing reduces hazard risks. Compact size and vertical mounting optimize space. DIN rail mounting simplifies installation. Wide operating temperature range for harsh environments.
Complies with major international safety standards. Low nominal current reduces power consumption. IP20 rated for indoor enclosure protection. Designed for electrical panel temperature maintenance. Italian-made quality with reliable performance.
Suitable across industrial automation, electrical enclosures, and HVAC sectors, this Finder Enclosure Heater ensures stable thermal management. Explore more high-quality electrical heating solutions in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output power of this model is 25W, which is delivered through a self-regulating PTC resistor.
It operates reliably in a temperature range from -45°C to a maximum surface temperature of 50°C.
This enclosure heater has compact dimensions of 41mm in width and 41mm in depth.
It mounts vertically via a DIN rail system using screw connections, allowing for easy and secure installation.
This model operates with a supply voltage range of 110V to 230V AC.
The nominal current for this heater is low at 0.13A.
This unit has an IP20 rating, making it suitable for indoor environments.
It is certified to UL, EAC, and CE standards, ensuring it meets safety and quality requirements.
The heater features a rugged plastic housing designed with a safe-touch feature to prevent accidental burns.
It has an airflow capacity of 30m³/h, which aids in effective temperature maintenance.
It is suitable for applications such as automatic car washes, hoists and cranes, drying kilns, and forced-air ventilation systems.
This model is an enclosure heater designed for effective temperature maintenance inside electrical cabinets and enclosures.
