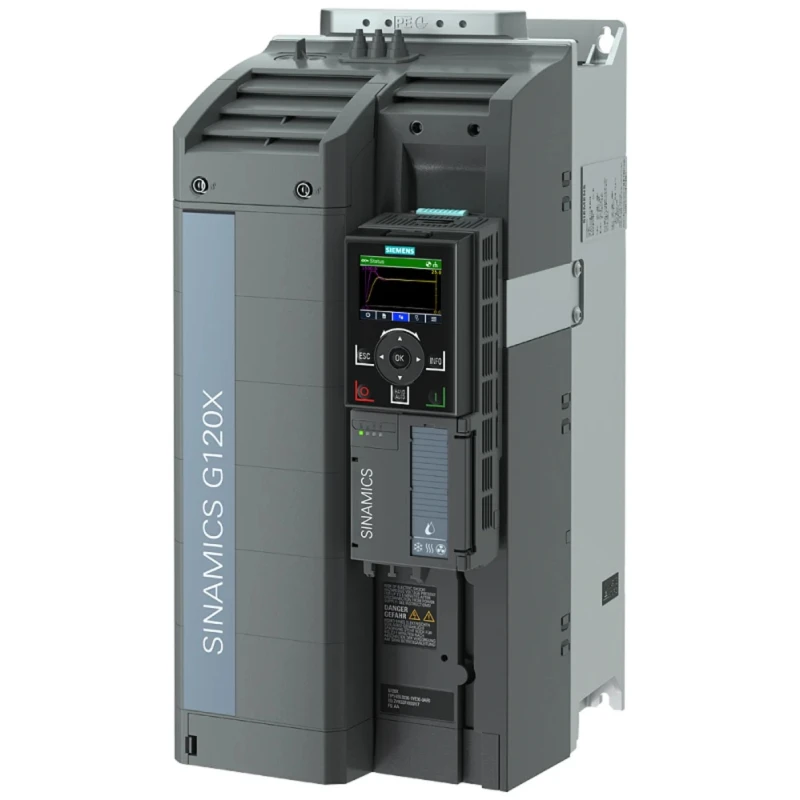

Siemens Inverter Drive, 22 kW Power Rating, 3 Phase, SINAMICS G120X Series, 480V, 12A, PID Control 6SL3220-1YE32-0UF0
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Siemens |
| Model | 6SL3220-1YE32-0UF0 |
| IP Rating | IP20 |
| Drive Type | PID Control |
| Mount Type | Wall |
| Overall Length | 472mm |
| Series | SINAMICS G120X |
| Overall Width | 200mm |
| Power Rating | 22kW |
| Maximum Operating Temperature | +55°C |
| Output Frequency | 550Hz |
| Minimum Operating Temperature | -20°C |
| Number of Phases | 3 |
| Maximum Output Current | 12A |
| Standards/Approvals | CE Certified, cUL Recognized, EAC Certified, KCC, RCM, REACH, SEMI F47, UL Listed |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 184-0126Brand: SiemensManufacturers Part No.: 6SL3220-1YE32-0UF0 |
| Maximum Supply Voltage | 480V |
| Overall Depth | 248mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | AC Motor |
Key Features
- Supports precise speed regulation with PID control for enhanced motor performance.
- Designed for wall mounting with compact dimensions of 472mm length, 200mm width, and 248mm depth.
- Compatible with AC motors, supporting supply voltages from 380V to 480V.
- Maximum output current rated at 12A and output frequency up to 550Hz.
- Robust operating temperature range from -20°C to +55°C ensures adaptability in diverse environments.
- Equipped with Profinet fieldbus communication for seamless integration into control systems.
- Conforms to multiple international standards including CE, UL, cUL, and RCM among others.
- Low overload capability at 110% for short durations improves reliability under temporary load spikes.
Product Description
Siemens 6SL3220-1YE32-0UF0 Inverter Drive from the SINAMICS G120X Series is a high-performance industrial motor controller delivering 22 kW power with 3 phase operation. It features PID control for precise speed regulation and is designed for wall mounting with compact dimensions of 472mm length, 200mm width, and 248mm depth. The unit supports a voltage range from 380V to 480V and outputs current up to 12A with a frequency of 550Hz.
This inverter drive ensures robust operation within a wide temperature range from -20°C up to +55°C, suitable for challenging industrial environments. Its advanced Profinet fieldbus communication facilitates easy integration into automation and control networks, enhancing system reliability and performance. The IP20 enclosure rating offers typical protection against solid objects, making it ideal for industrial automation installations.
Certified with multiple international standards such as CE, UL, cUL, RCM, and EAC, this Siemens inverter drive is built for dependable, energy-efficient motor control. The device also features low overload capability at 110% for short durations, ensuring stability during peak load conditions. Compatible with AC motors, it finds application in manufacturing processes, automation systems, and industrial environments demanding precise and reliable motor control.
Supports precise speed regulation with PID control for enhanced motor performance. Compact wall mount design with dimensions 472mm x 200mm x 248mm (LxWxD). Voltage input range from 380V to 480V with 3 phase connection. Maximum output current of 12A and output frequency up to 550Hz.
Wide operating temperature range from -20°C to +55°C for varied environments. Profinet fieldbus communication for effective system integration. Complies with CE, UL, cUL, RCM, EAC, KCC, REACH, SEMI F47 standards. Low overload capability improves reliability under temporary peak loads.
IP20 protection rating suitable for industrial applications.
This Inverter Drive is ideal for industrial applications including manufacturing motor control, automation systems, and processes requiring efficient and precise speed regulation. Siemens by EnvMart provides trusted industrial automation products for diverse engineering sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Siemens inverter drive has a power rating of 22 kW.
It can handle a maximum output current of 12A.
The input voltage range is from 380V to 480V.
The maximum output frequency of this inverter drive is up to 550Hz.
This model uses PID control for precise speed regulation.
It operates within a temperature range of -20°C to +55°C.
The dimensions are 472mm in length, 200mm in width, and 248mm in depth.
It is compatible with AC motors.
It is equipped with Profinet fieldbus communication for system integration.
The inverter drive has an IP20 protection rating.
It conforms to CE, UL, cUL, RCM, EAC, KCC, REACH, and SEMI F47 standards.
This model is designed for wall mounting.
