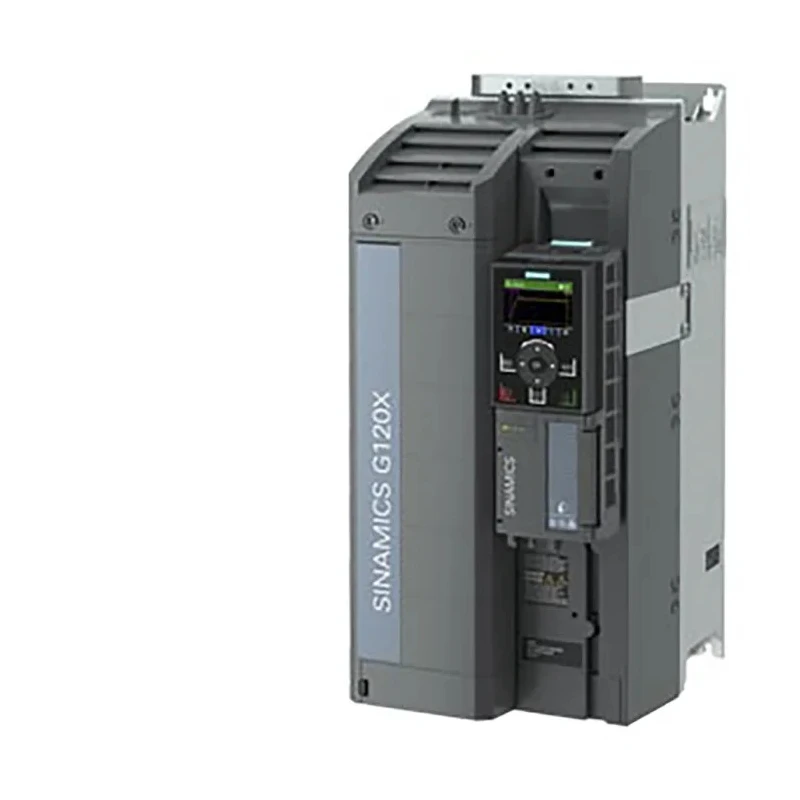

Siemens Inverter Drive 18.5 kW 3 Phase PID Control Wall Mount SINAMICS G120X Series 6SL3220-3YE30-0UF0

Siemens 6SL3220-3YE30-0UF0 is an advanced inverter drive from the SINAMICS G120X Series, delivering a power rating of 18.5 kW with three phase input and PID control capabilities. It is designed for wall mounting and offers high operational efficiency through its optimized converter topology, requiring lower line current compared to comparable drives.

This inverter drive is equipped with functions like flux reduction via automatic motor current adaptation for energy savings of up to 5% under partial load. It features a hibernation mode configurable based on process set points, enabling further energy efficiency improvements.

Operating with an output frequency capability up to 200 Hz and compatible with AC motors, the drive supports a voltage supply range of 380 V minimum to 480 V maximum. The device operates effectively within a temperature range from -20°C to +55°C, suitable for various industrial environments.

The SINAMICS SD memory card facilitates pre-parameterization and cloning of data sets, making commissioning and replacement straightforward. Four integrated PID controllers offer distributed closed-loop control for motor-independent process control without requiring a higher-level PLC. Additionally, three programmable digital timer switches allow for customizable daily and weekly control programs.

Its robust design includes an IP20 protection rating and compliance with international certifications such as CE, UL Listed, cUL Recognized, EAC Certified, KCC, RCM, REACH, and SEMI F47 standards, ensuring reliable and compliant use in industrial, HVAC, manufacturing, and automation applications.

Power rating of 18.5 kW ensures high performance for demanding applications. Three phase input supports stable and efficient motor control. Equipped with PID control type for precise and optimized drive management. Compatible with AC motors and supports output frequency up to 200 Hz.

Wall mounting design with IP20 rating for protection against solid objects. Operating voltage range from 380 V to 480 V suits various power supply conditions. Wide operating temperature range from -20°C to +55°C for reliable operation in diverse environments.

Includes SINAMICS SD memory card for pre-parameterization and easy cloning of drive settings. Four integrated PID controllers allow motor-independent process control without additional PLC. Certified to multiple standards including CE, UL, cUL, EAC, KCC, RCM, REACH, SEMI F47, ensuring compliance and safety.

This Siemens Inverter Drive is ideal for industrial automation, electrical motor control, HVAC systems, manufacturing processes, and water treatment facilities. The efficient design and advanced control features support improved energy savings and process reliability.
