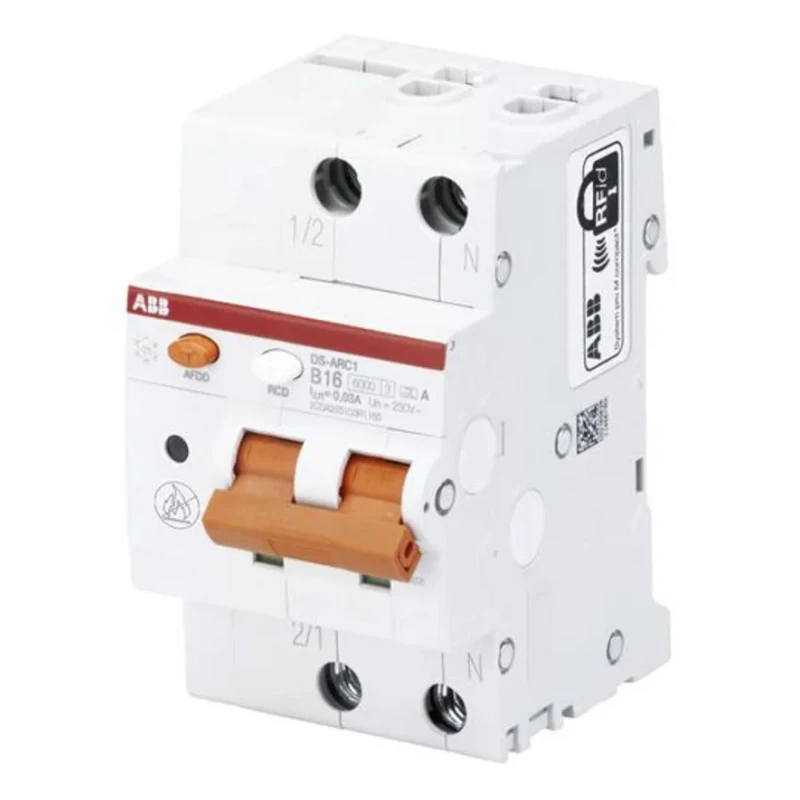

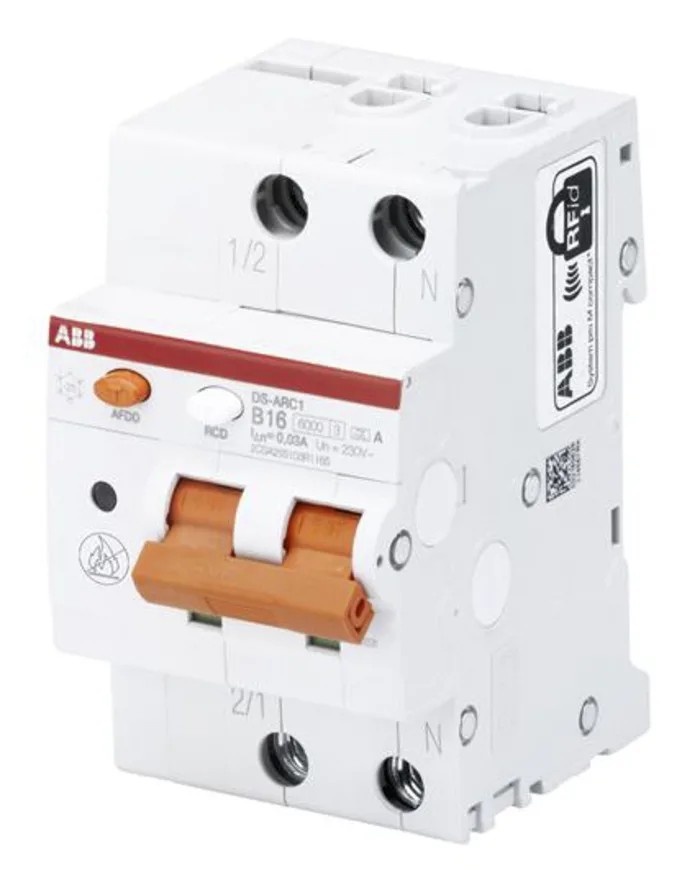

ABB Residual Current Circuit Breaker with Overload Protection, 16A Current Rating, 1-Pole 2CSA255103R1165 DS-ARC1 B16 A30
Specifications
| Country of Origin | Italy |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 85mm |
| Model | 2CSA255103R1165 DS-ARC1 B16 A30 |
| Depth | 85mm |
| Width | 52.5mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | DS-ARC1 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Standards/Approvals | RoHS, IEC |
| Rated AC Voltage | 240V ac |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | Type A |
| Supply possible both from top and bottom side | double slots available for connection with cables and busbars |
Key Features
- Designed for DIN rail mounting ensuring easy installation and integration.
- Provides reliable earth leakage protection with Type A sensitivity.
- Thermal magnetic tripping mechanism combines overload and short circuit protection.
- Compact dimensions of 85mm height, 85mm depth, and 52.5mm width optimize panel space.
- Breaking capacity of 6 kA supports high fault current interruption.
- Equipped with toggle switch reset actuator for straightforward operation.
- Supports supply connection from both top and bottom with double slots.
- Complies with RoHS and IEC standards for safety and environmental compliance.
Product Description
ABB 2CSA255103R1165 DS-ARC1 B16 A30 Residual Current Circuit Breaker combines overload protection with residual current detection, designed to protect electrical installations by interrupting circuits during fault conditions.
With a rated current of 16A and a single pole configuration, it ensures effective protection against overloads, short circuits, and earth leakage currents with a trip sensitivity of 30 mA, suitable for residential, commercial, and industrial applications.
This device features a thermal magnetic tripping mechanism, DIN rail mounting compatibility, and robust screw-type terminals for secure and reliable connections. The compact dimensions (85mm height, 85mm depth, 52.5mm width) save installation space without compromising performance.
Breaking capacity of 6 kA ensures interruption of high fault currents up to this value, enhancing safety and equipment protection. The device is part of ABB's System Pro M Compact range offering modular and easy integration into electrical systems.
Additional features include double-slot supply connections at both top and bottom, LED indicators for easy troubleshooting, and two test buttons to verify correct operation of arc fault detection and residual current functions. The internal continuous self-test further guarantees ongoing safety assurance.
Designed for easy DIN rail mounting and installation integration. Provides combined protection against arc faults and earth leakage currents. Features user-friendly toggle switch to reset the breaker. Compatible with System Pro M Compact accessories and busbar systems.
Complies with RoHS and IEC safety standards. Offers high breaking capacity of 6 kA for robust circuit protection. Equipped with LED for quick diagnostics and fault indication. Supports supply from both top and bottom via double slots for flexible wiring.
Incorporates continuous self-test to ensure reliability and safety.
Originating from Italy, this product ensures quality and conformity in line with ABB's established electrical protection solutions. Ideal for industrial, commercial, laboratory, and residential electrical circuit protection applications.
Explore the environment-friendly, highly reliable ABB range of Residual Current Circuit Breakers on EnvMart for enhanced electrical safety and compliance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 16A, making it suitable for various electrical applications.
It features a breaking capacity of 6 kA, which allows it to interrupt high fault currents effectively.
It utilizes a thermal magnetic tripping mechanism, providing protection against overloads and short circuits.
The compact dimensions are 85mm in height, 85mm in depth, and 52.5mm in width, optimizing installation space.
It is designed for DIN rail mounting, ensuring easy installation and integration into electrical systems.
This model provides Type A earth leakage protection with a trip sensitivity of 30 mA.
The rated AC voltage for this unit is 240V AC, suitable for standard electrical systems.
Yes, it supports supply connections from both the top and bottom, featuring double slots for flexible wiring.
It complies with RoHS and IEC standards, ensuring safety and environmental compliance.
It is equipped with screw-type terminals, providing secure and reliable connections.
This unit is part of the System Pro M Compact range, designed for modular integration into electrical systems.
It includes LED indicators for quick diagnostics and two test buttons to verify the operation of arc fault detection and residual current functions.
