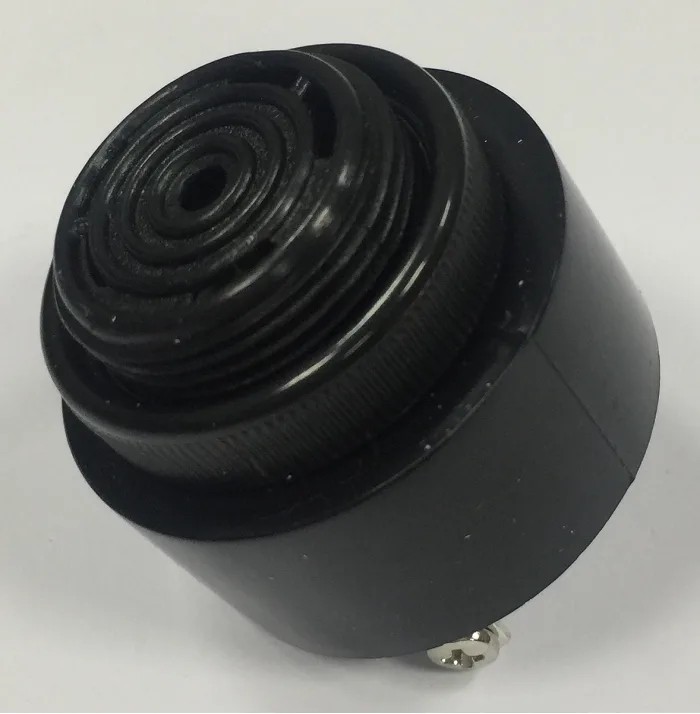

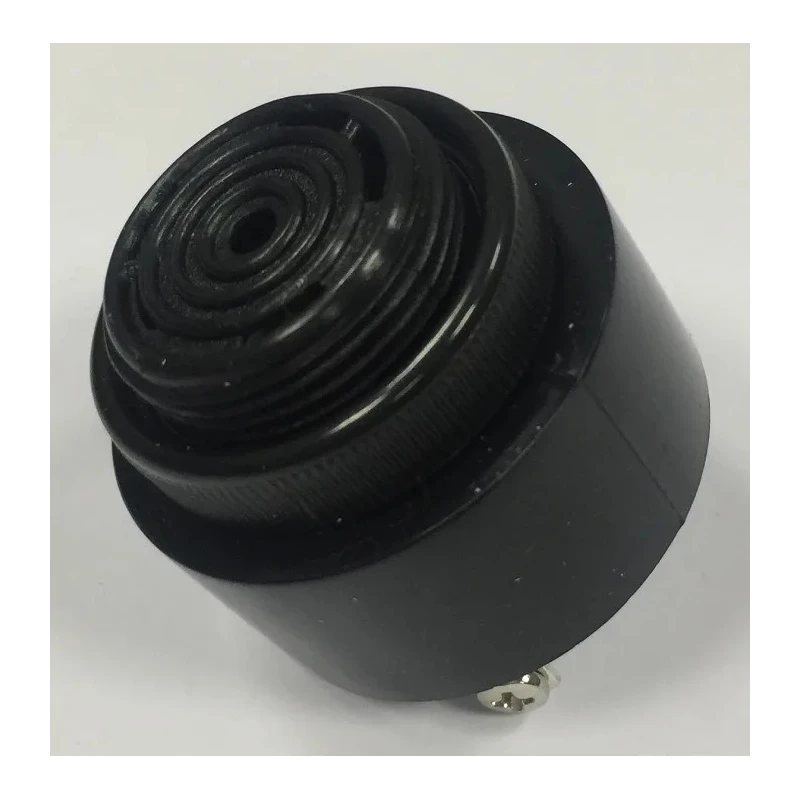

RS PRO 94 dB Continuous Tone Piezo Buzzer Component Screw Mount 42.5 mm Diameter 33 mm Height 6 V ac/dc Min 28 V 181-2682

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 94 dB Continuous Tone Piezo Buzzer Component Screw Mount 42.5 mm Diameter 33 mm Height 6 V ac/dc Min 28 V 181-2682

Name: RS PRO 94 dB Continuous Tone Piezo Buzzer Component Screw Mount 42.5 mm Diameter 33 mm Height 6 V ac/dc Min 28 V 181-2682
Brand: RS PRO
SKU: 155322
Price: 6.79 USD
Availability: InStock



Category Piezo Buzzer Component Brand RS PRO Condition New

Specifications

Country of Origin	India
Diameter	42.5mm
Brand	RS PRO
Sound Level	94dB
Height	33mm
Model	181-2682
Drive Type	Internal
Mount Type	Screw
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Standards/Approvals	RoHS
Maximum Frequency	3.3kHz
Termination Style	Tin Plated Tapped Screw
Maximum Supply Voltage	28V ac/dc
Minimum Supply Voltage	6V ac/dc
Supply Current	12mA
Tone Type	Continuous
Minimum Frequency	2.3kHz

Key Features

Delivers a continuous tone with a sound level of 94 dB.
Screw mount type provides secure fitting using tin plated tapped screw terminals.
Operates reliably between -30°C and +85°C temperature range.
Low supply current consumption of 12 mA for energy-efficient operation.
Constructed with ABS UL-94 1/16” HB high heat resistant black material.
Suitable for industrial, electronic, control panel, and security alert applications.
Compact form factor with 42.5 mm diameter and 33 mm height dimensions.

Product Description

RS PRO 181-2682 Piezo Buzzer Component is a robust and reliable audio signaling device designed for continuous tone generation with a loud sound level of 94 dB. Featuring a screw mount type with tin-plated tapped screw terminals, this buzzer ensures a secure installation in electronic equipment and industrial control panels.

It supports a flexible operating voltage range of 6 V ac/dc minimum to 28 V ac/dc maximum and operates efficiently within a temperature range of -30°C to +85°C, making it suitable for demanding environments. The buzzer produces tones in the frequency band of 2.3 kHz to 3.3 kHz, providing clear audio indication required in alarms, alerts, and signaling devices.

The product is manufactured using high heat resistant ABS UL-94 1/16” HB black plastic material that enhances its durability and performance under industrial conditions. Its compact dimensions of 42.5 mm diameter and 33 mm height allow easy integration into various electronic assemblies.

This piezo buzzer is ideal for applications in industrial machinery, automation systems, security alarms, and electronic component manufacturing where reliable high-decibel sound indication is essential.

Delivers continuous tone at 94 dB sound level for effective audio alerts. Screw mount with tin-plated tapped screw terminals ensures reliable mechanical and electrical connection. Wide operating voltage range of 6 V to 28 V ac/dc accommodates multiple applications.

Wide temperature tolerance from -30°C to +85°C supports harsh environments. Operates within a frequency range of 2.3 kHz to 3.3 kHz for clear signal output. Constructed from ABS UL-94 HB high heat resistant material for durability.

Compact size with 42.5 mm diameter and 33 mm height fits various equipment.

RS PRO products provide trusted solutions for professional industrial and electronic applications. Explore the Piezo Buzzer Component category to find compatible products for your design and manufacturing needs.
