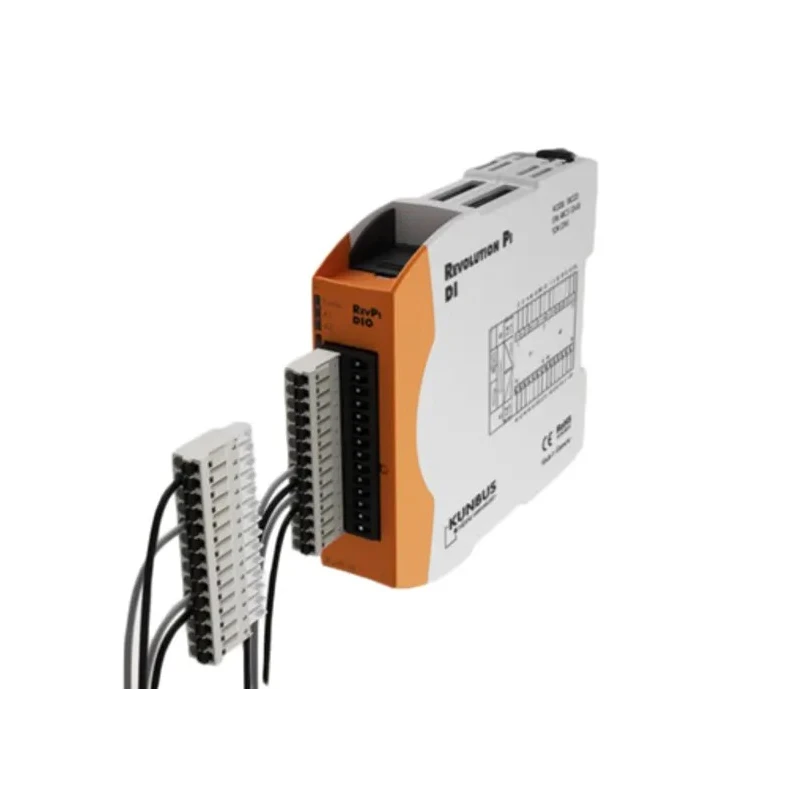

Revolution PI PLC I/O Module RevPI DI 16I Series for Use with Revolution Pi Core, Revolution Pi Connect 12, 24V dc PR100195

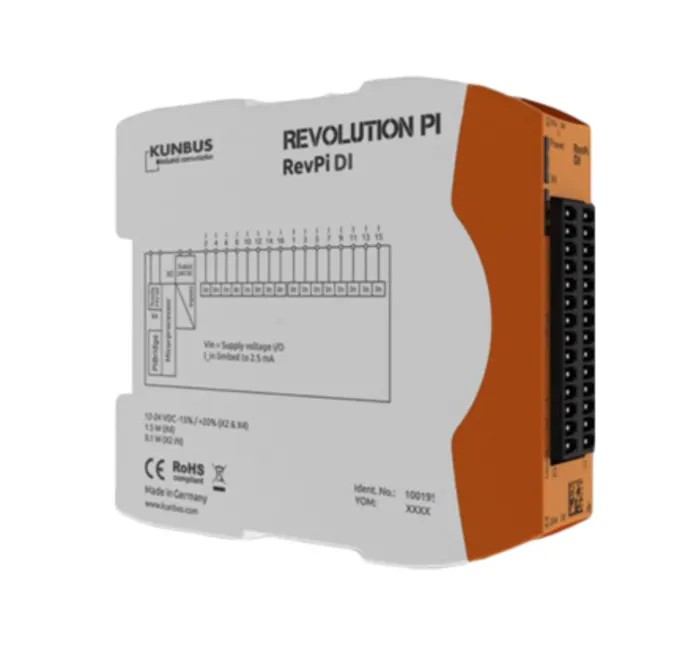

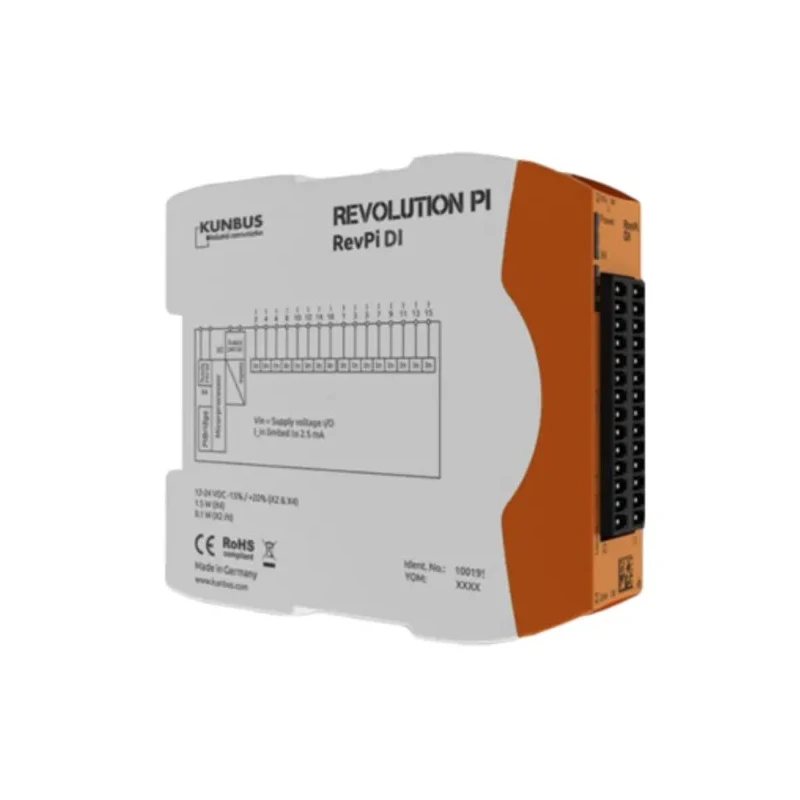

Revolution PI PR100195 PLC I/O Module RevPI DI 16I Series is a reliable digital input expansion module designed for use with Revolution Pi Core and Revolution Pi Connect platforms. Operating at 12 and 24V dc supply voltages, this module provides 16 digital inputs essential for building compact industrial controllers.

The module incorporates galvanic separation between its logic circuit and the PiBridge with its own power supply, enhancing protection against reverse polarity, overvoltages, and transient interference in compliance with EN61131-2 standards.

Adjustable low-pass filtering capabilities effectively reduce input signal bouncing, while all inputs feature robust protection against electrostatic discharge, bursts, and surge events. The module operates with input voltage thresholds aligned with EN61131-2 type 1 and 3 input definitions, ensuring reliable detection with an input current limited to 2.4mA maximum.

Connecting via a 28-pin front connector with 2 rows of 14 male pins, the RevPI DI module uses female spring clip connectors supporting up to 1.5mm² wiring. Its compact polycarbonate housing meets EN 61131-3 standards for resistance to vibration, shock, humidity, and temperature extremes, while being rated IP20 for protection against foreign object ingress.

DIN rail mounting to EN 50022 allows easy installation in control cabinets, making it suitable for demanding environments with space limitations. Data exchange with the RevPi Core is cyclically managed through the PiControl driver, providing error and configuration status in real time.

This module’s applications span automotive systems, energy sector controls, industrial lighting solutions, and home automation projects where precise and protected digital input monitoring is required.

Package includes the RevPI DI module along with female connectors and mounting provisions. The module supports SPI data exchange monitoring and safe states for output safety. Ideal for extending Revolution Pi Core's capabilities for small industrial controller setups.
