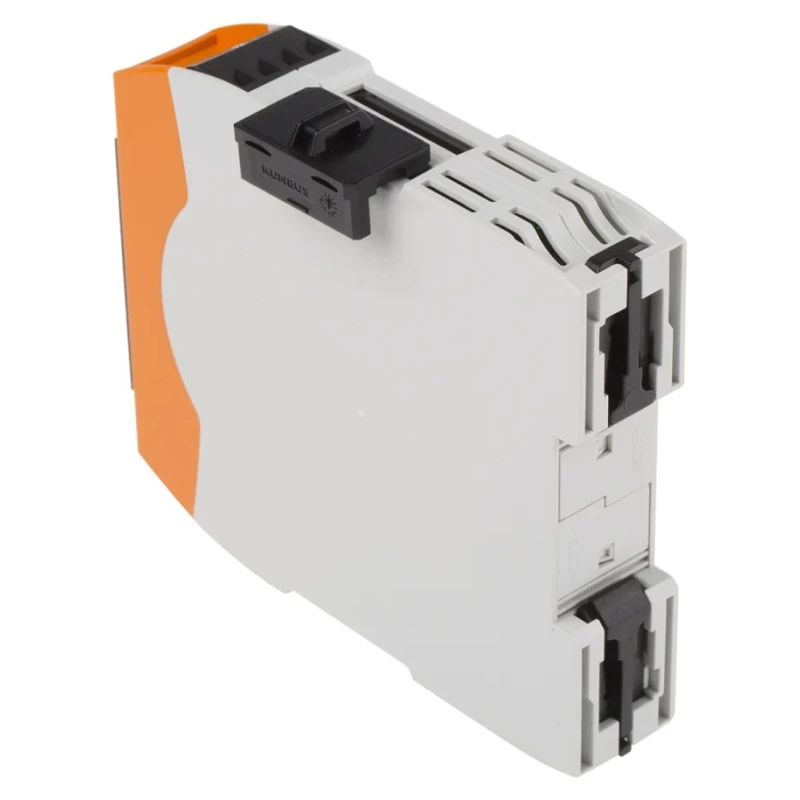

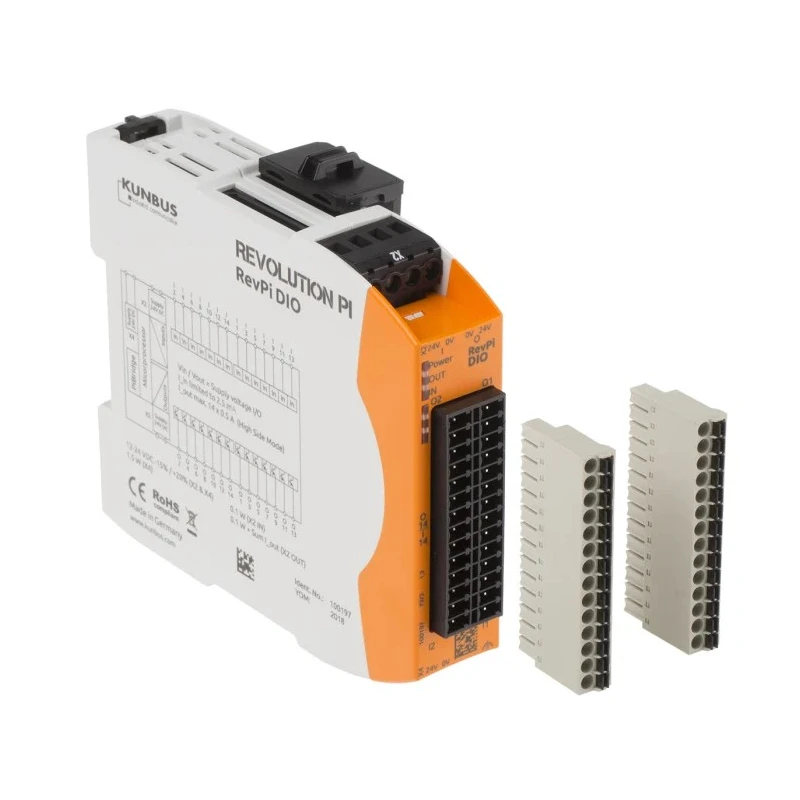

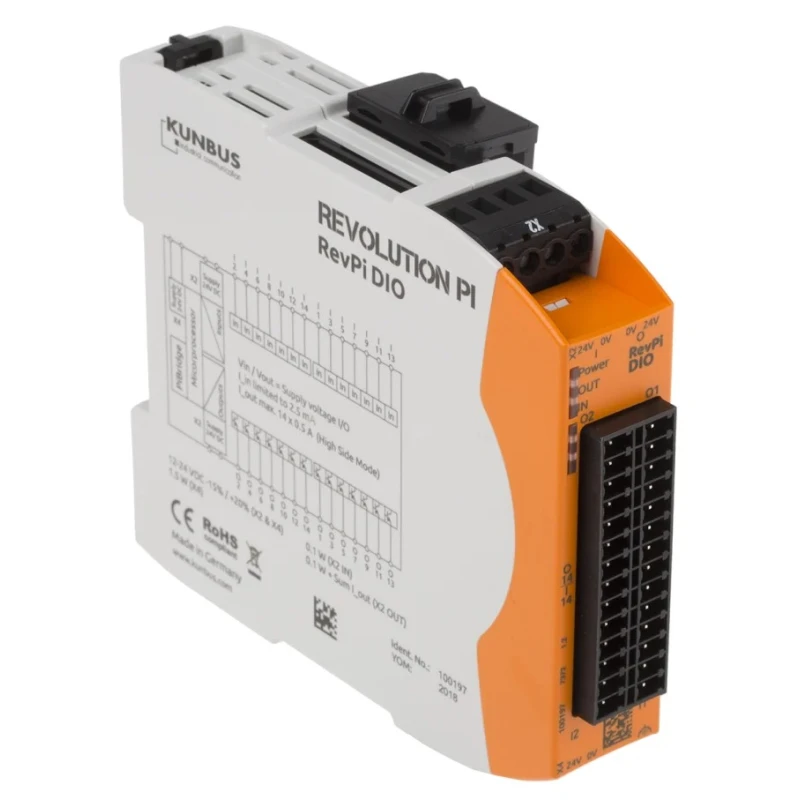

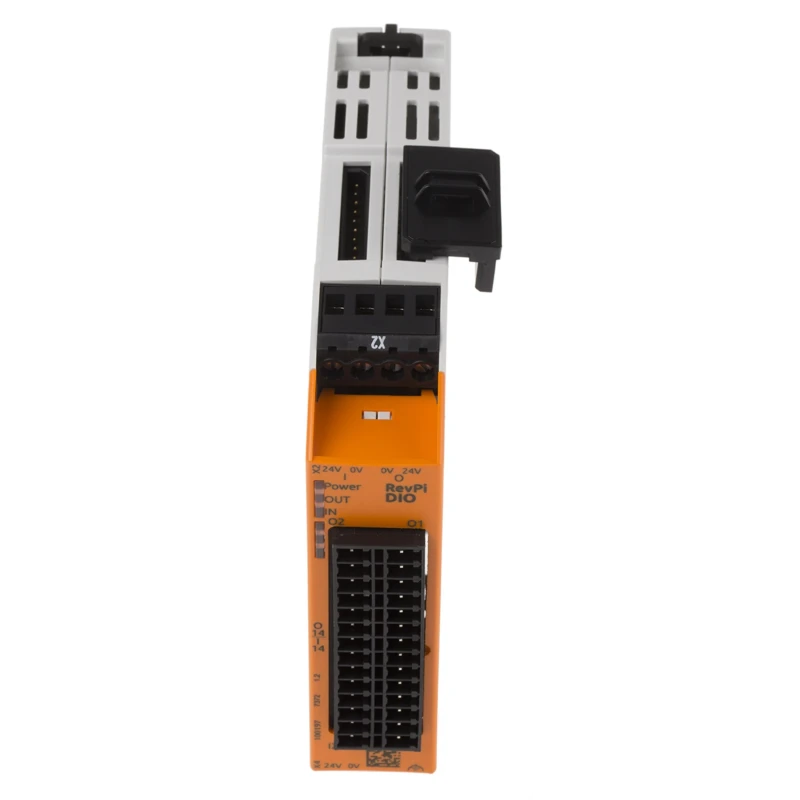

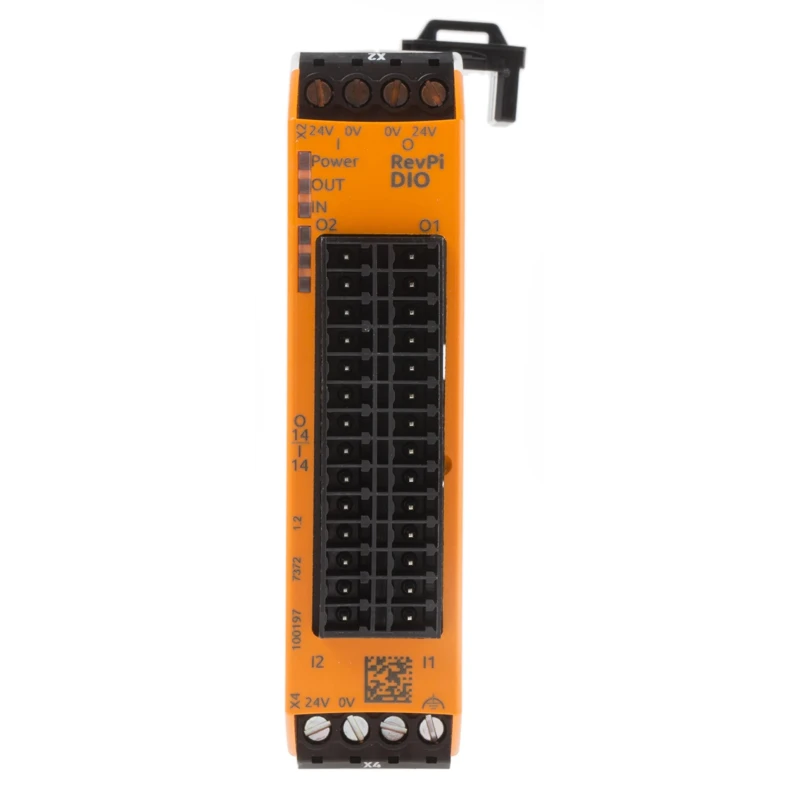

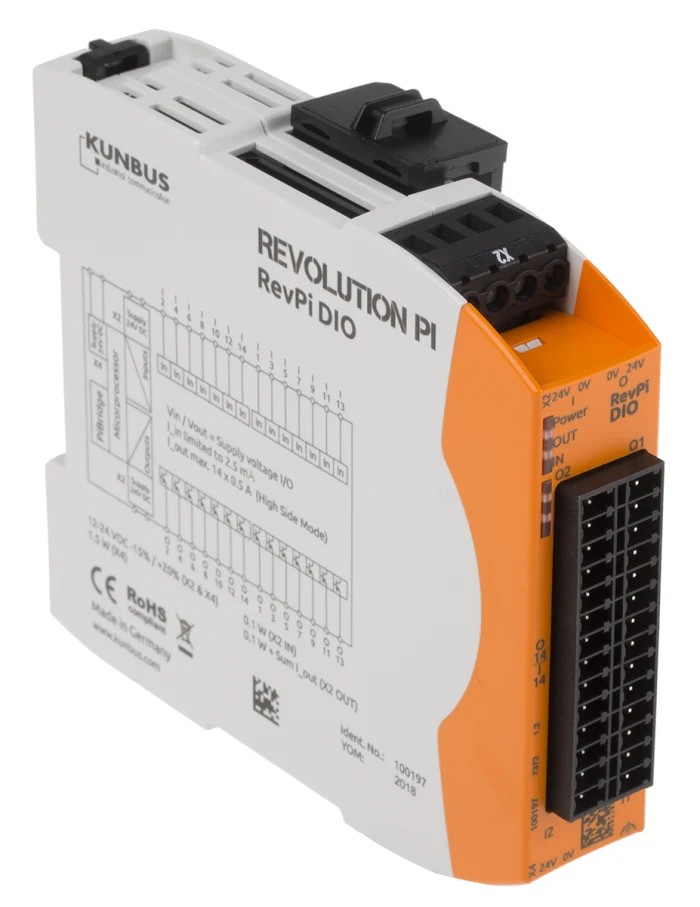

Revolution PI RevPI DIO 14IO Series PLC I/O Module with 14 Digital Inputs and Outputs, IP20, 12/24V DC Supply PR100197

Revolution PI PR100197 PLC I/O Module 14IO Series is a high-quality expansion module designed to enhance the functionality of the Revolution Pi Core and Revolution Pi Connect industrial controllers. Featuring 14 digital inputs and 14 digital outputs, this module facilitates complex automation tasks with reliable performance and safety compliance.

The module incorporates galvanic isolation between the PiBridge logic circuit, which operates on its own power supply, and the RevPi Core system. This separation protects the module from reverse polarity, overvoltage, and transient voltage or current interferences, fully meeting EN61131-2 requirements.

With a supply voltage range of 12 to 24V DC, the digital inputs adhere to EN61131-2 type 1 and 3 standards, providing a voltage threshold matching the supply voltage and limiting input current to a maximum of 2.4mA. An adjustable low-pass filter prevents unwanted signal bouncing, improving measurement reliability. Inputs also feature ESD protection compliant with EN61131-2, which helps prevent damage from bursts and surges.

Communication between the RevPi DIO module and the RevPi Core is managed via SPI through the PiBridge logic circuit using the PiControl driver. This protocol includes cyclic exchange of processing data, configuration parameters, and error monitoring to ensure continuous operation and safety.

The outputs of the module support both digital on/off signals and pulse-width modulated (PWM) signals, enabling more sophisticated control over connected devices. Safety features include automatic safe states when SPI communication fails, output power supply drops, output circuit overheating, or other fault conditions.

Typical industrial applications include automotive systems, energy management, lighting control, and home automation solutions. This module is ideal for creating compact, cost-effective industrial controllers with expanded I/O capabilities. The expansion module is connected to the RevPi Core via the top connector, which is included in the package, enabling quick and secure installation.

Manufactured in Germany, the Revolution PI PR100197 module complies with UL, RoHS, and CE standards, ensuring quality and regulatory adherence. It is designed for industrial automation, manufacturing, laboratory, and HVAC control environments where reliable digital I/O performance is essential.

The module features galvanic separation for protection against reverse polarity and overvoltage. Inputs comply with EN61131-2 standards with 2.4mA max input current and adjustable low-pass filtering to prevent signal bouncing.

The device uses PiBridge logic circuit and cyclic data exchange via PiControl driver for robust performance. Outputs include digital signals and PWM for versatile industrial automation control. Designed for use in automotive, energy, lighting, and home automation industries.

The expansion module connects directly to the RevPi Core via top connector included in delivery. Explore more industrial automation modules and accessories on EnvMart to build efficient, scalable control solutions with trusted brands.
