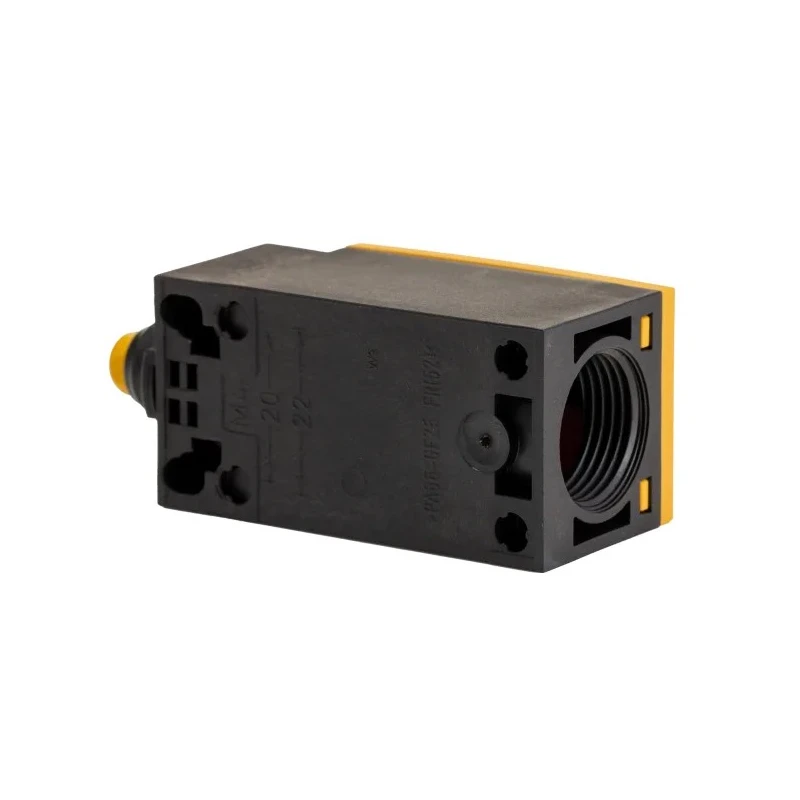

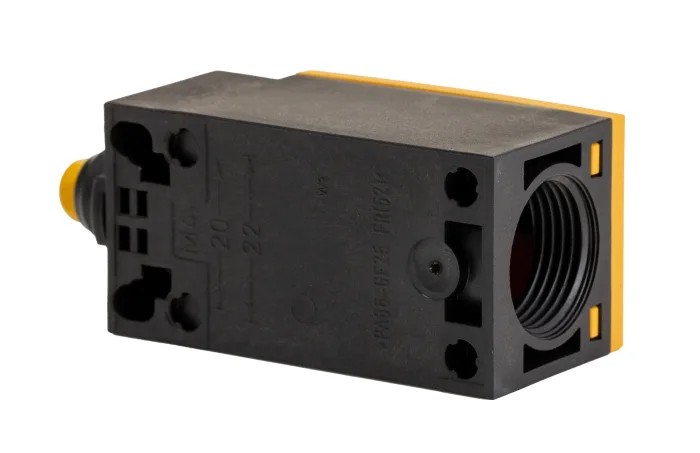

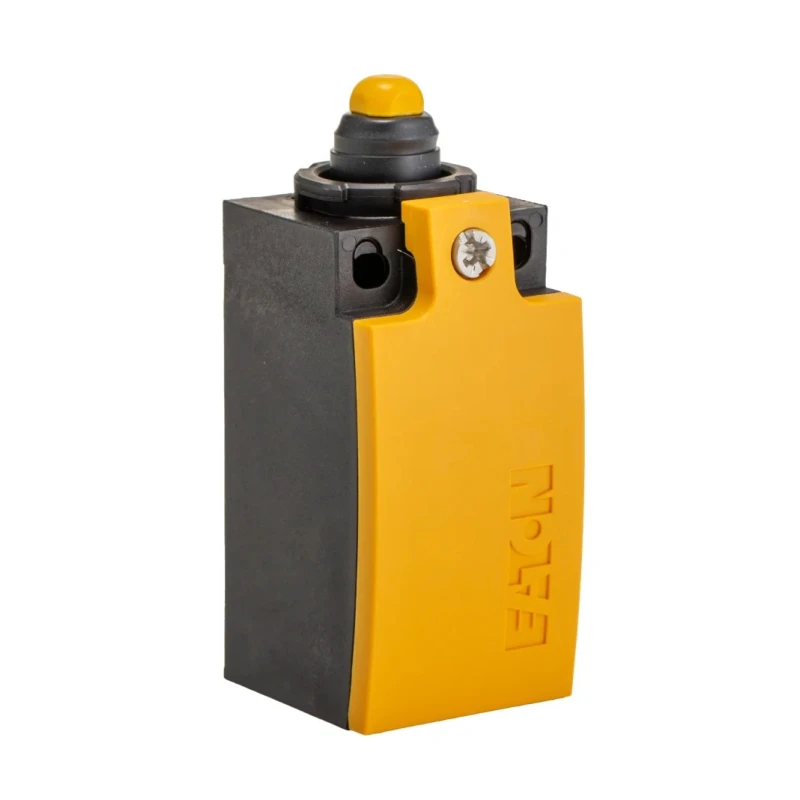

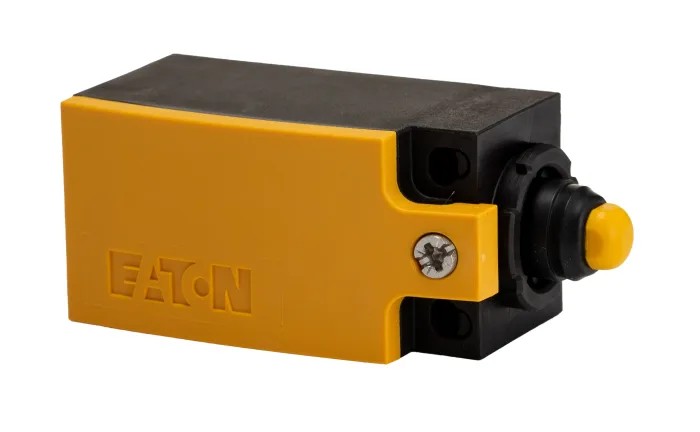

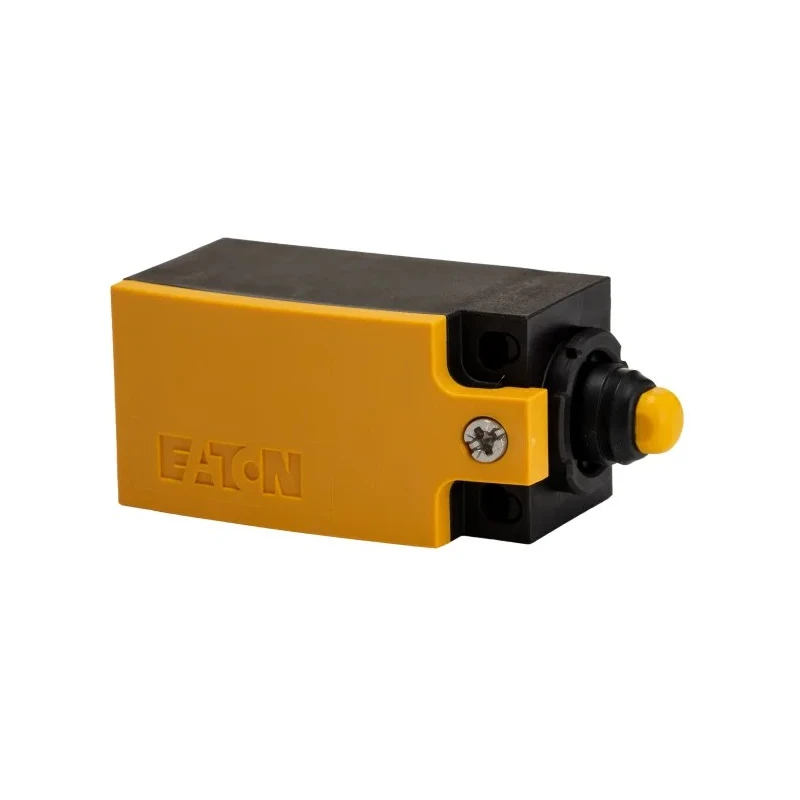

Eaton LS-Titan Series Plunger Limit Switch 2 NO Contacts Plastic Housing IP67 IP66 415V AC 6A 266120 LS-20
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Length | 76mm |
| Model | 266120 LS-20 |
| Depth | 31mm |
| IP Rating | IP67, IP66 |
| Width | 33.5mm |
| Housing Material | Plastic |
| Series | LS-Titan |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 2 NO |
| Actuator Type | Plunger |
| Contact Type | Slow Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 6A |
| Terminal type | Cage Clamp |
| Standards/Approvals | CE |
| Operating Force | 8N |
| Mechanical Life | 8000000Cycles |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 415V ac |
Key Features
- Features a robust plastic housing with IP67 and IP66 ratings for dust and water resistance.
- Designed to operate safely with switching voltages up to 415V AC and a switching current of 6A.
- Operates across a temperature range from -25°C to 70°C, suitable for harsh conditions.
- Equipped with cage clamp terminals for secure electrical connections.
- Mechanical life rated for 8 million operations ensuring long operational durability.
- Compact design dimensions of 31mm width, 76mm length, and 33.5mm depth enable installation in confined spaces.
- Slow action contact type provides controlled switching response.
- Operating force required is only 8N, facilitating responsive operation.
Product Description
Eaton 266120 LS-20 plunger limit switch features a durable plastic housing with IP67 and IP66 ingress protection ratings, making it suitable for demanding industrial and automation applications. Its two normally open (2 NO) contacts allow control of dual circuits simultaneously, providing versatile usage in conveyor systems and machinery automation.
The switch supports switching AC voltage of up to 415V and switching current of 6 amperes, ensuring compatibility with medium power industrial electrical systems. It uses cage clamp terminal technology to ensure strong and reliable wire connections. The slow action contact type allows precise control over the switching operation.
Designed to operate in ambient temperatures ranging from -25°C to 70°C, this unit is well-suited for both cold and warm environments. Its mechanical life extends to 8 million cycles, ensuring long-term durability and minimal maintenance.
With compact dimensional footprint of 31 mm width, 76 mm length, and 33.5 mm depth, installation in tight control panels or restricted spaces is easily achieved. The operating force required to activate the plunger is only 8 newtons, facilitating sensitive actuation.
Constructed in Germany and compliant with CE standards, the Eaton LS-Titan series limit switch provides a high-quality, reliable solution for industrial automation, conveyor control, manufacturing, and HVAC systems.
Durable Plastic Housing with IP67 and IP66 Ratings. Two Normally Open Contacts for Dual Circuit Control. Supports AC Voltage up to 415V and switching current of 6A. Robust Cage Clamp Terminals for Secure Connections. Slow Action Contact Type for Precise Switching.
Wide Operating Temperature Range from -25°C to 70°C. Compact Dimensions Suitable for Tight Installations. Mechanical Life Rated at 8,000,000 Cycles for Longevity. CE Certified Quality, Manufactured in Germany. Explore Eaton and other high-quality Limit Switches and components available on EnvMart for your industrial automation and electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton LS-Titan Series Plunger Limit Switch supports a maximum switching voltage of 415V AC.
This model has compact dimensions of 76mm in length, 31mm in width, and 33.5mm in depth, making it suitable for tight installations.
The mechanical life of the Eaton LS-Titan limit switch is rated at 8 million cycles, ensuring long-term durability.
It is equipped with cage clamp terminals, which provide secure and reliable electrical connections.
The switch operates effectively within a temperature range of -25°C to 70°C, suitable for various environments.
This model features two normally open (2 NO) contacts, allowing control of dual circuits simultaneously.
The operating force required to activate the plunger is only 8 newtons, facilitating sensitive actuation.
The Eaton LS-Titan Series Plunger Limit Switch has IP67 and IP66 ratings, providing protection against dust and water ingress.
It utilizes a slow action contact type, which allows for precise control over the switching operation.
This limit switch is manufactured in Germany and is compliant with CE standards.
The switch supports a maximum switching current of 6A, making it suitable for medium power industrial applications.
This model is designed for use in industrial automation, conveyor control, manufacturing, and HVAC systems.
