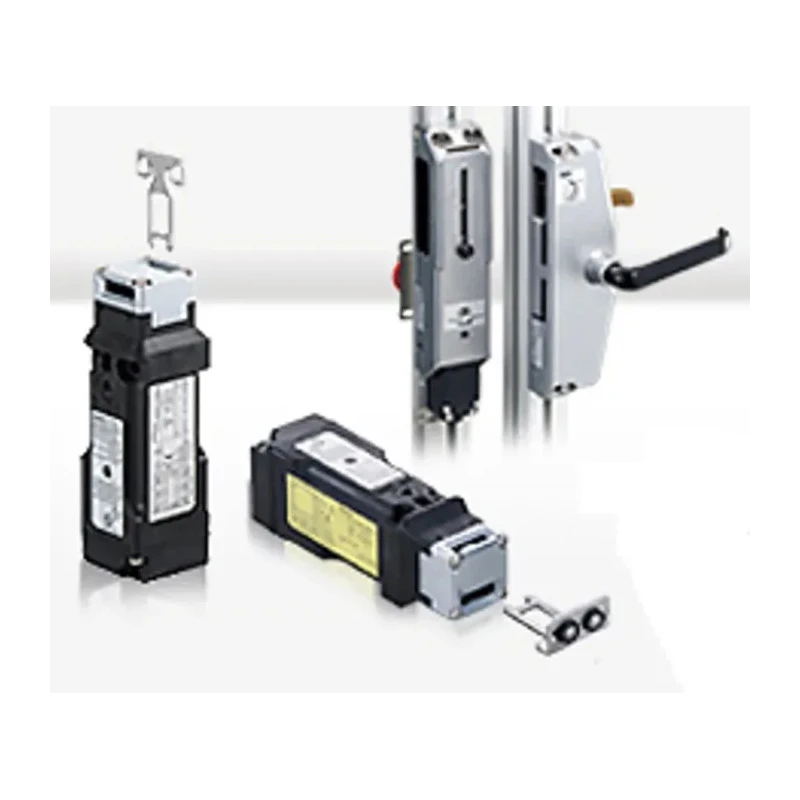

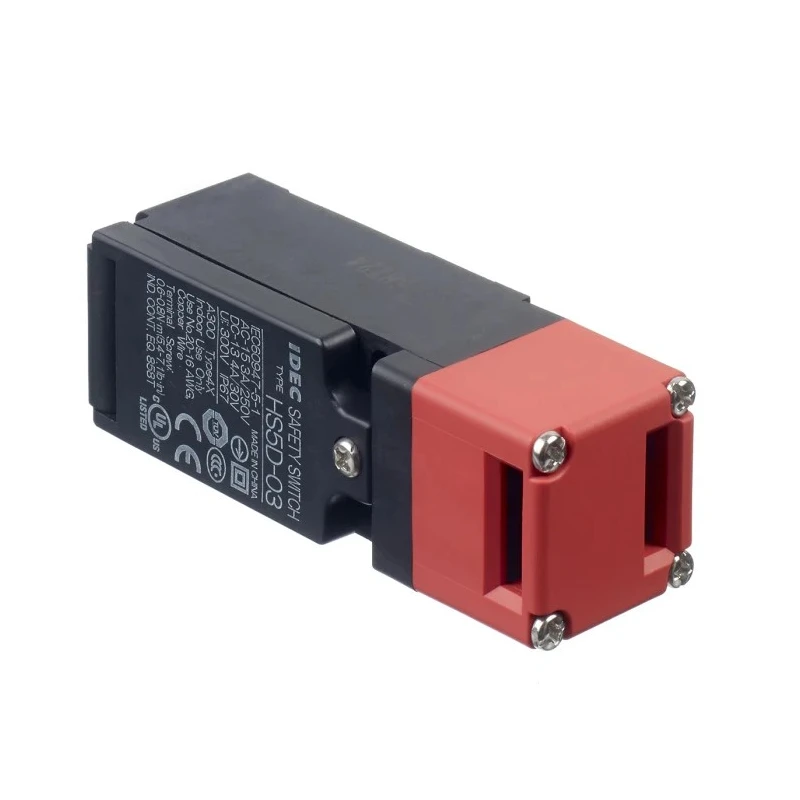

Idec Safety Interlock Switch with Handle Actuator, 3 NC Safety Contacts, IP67 Rated HS5D

Free Delivery in India | Lowest Global Shipping Charges

Idec Safety Interlock Switch with Handle Actuator, 3 NC Safety Contacts, IP67 Rated HS5D

Name: Idec Safety Interlock Switch with Handle Actuator, 3 NC Safety Contacts, IP67 Rated HS5D
Brand: Idec
SKU: 154076
Price: 52.36 USD
Availability: InStock



Category Safety Interlock Switch Brand Idec Condition New

Specifications

Country of Origin	China
Brand	Idec
Length	30mm
Model	HS5D
Depth	91mm
IP Rating	IP67
Width	30mm
Series	HS5D
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Lock Type	Interlock
Standards/Approvals	CCC, TUV, CE, cULus
Contact DC Voltage	30V dc
Switch Contact Current	10A
Contact AC Voltage	250V ac
Lock Style	Handle
Safety Contacts	3 NC

Key Features

The switch includes 3 normally closed safety contacts for secure operation.
IP67 rating guarantees protection against dust and water ingress.
Compact dimensions of 30mm width, 30mm length, and 91mm depth.
Operating temperature range from -30°C to 70°C for versatile environmental use.
Interlock lock style with interchangeable actuator compatible with HS5E and HS5L series.
M20 connection type and M3 terminal screws allow easy wiring.
Double insulation design removes requirement for grounding.
Compliance with CCC, TUV, CE, and cULus standards ensures global safety certification.

Product Description

Idec HS5D safety interlock switch with handle actuator included is designed for industrial safety applications requiring secure contact control. Its IP67 rating provides robust protection against dust and moisture, making it suitable for harsh environments. Featuring three normally closed (3 NC) safety contacts, this interlock switch effectively safeguards machinery operation by interrupting power upon unauthorized access or unsafe conditions.

The compact size of 30mm width, 30mm length, and 91mm depth facilitates installation in constrained spaces. It operates reliably within a temperature range of -30°C to 70°C, supporting various industrial ambient conditions.

The interlock lock style ensures contact enablement only when actuator conditions are met. Actuators are interchangeable with Idec HS5E and HS5L series models, offering flexibility in replacement or system design. Convenient wiring is supported by M20 connection fittings and M3 terminal screws.

Designed with a double insulation structure, the switch eliminates the need for grounding, enhancing safety and simplifying installation. The head removal detection function disables the main circuit when the switch head is detached, preventing unsafe operation.

The switch includes 3 normally closed safety contacts for fail-safe operation. IP67 ingress protection rating ensures resistance to dust and water ingress. Robust certification compliance including CCC, TUV, CE, and cULus supports global standards.

Wide operating temperature range of -30°C to 70°C accommodates demanding industrial conditions. Interchangeable actuator compatibility enhances maintenance flexibility. Compact dimensions allow for space-efficient installation.

M20 connection and M3 terminal screws support easy and secure wiring. Double insulation design eliminates grounding requirements for safer installation.

This HS5D Safety Interlock Switch is ideal for machinery door safety applications and other industrial equipment that require reliable interlock switch function to protect operators and machines. It is suitable in industrial automation, manufacturing, and electrical control systems requiring rigorous safety compliance.
