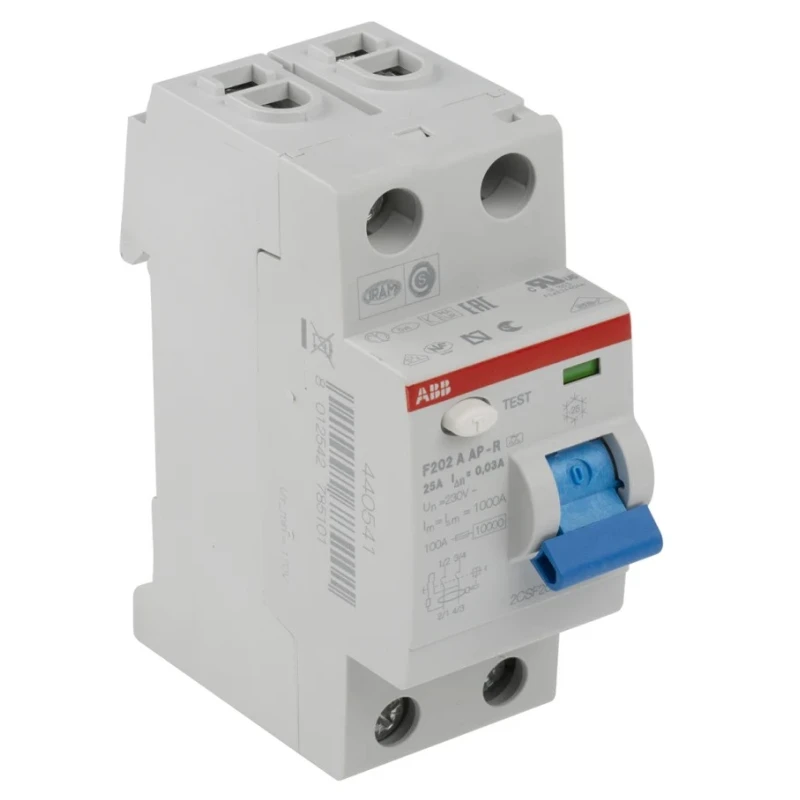

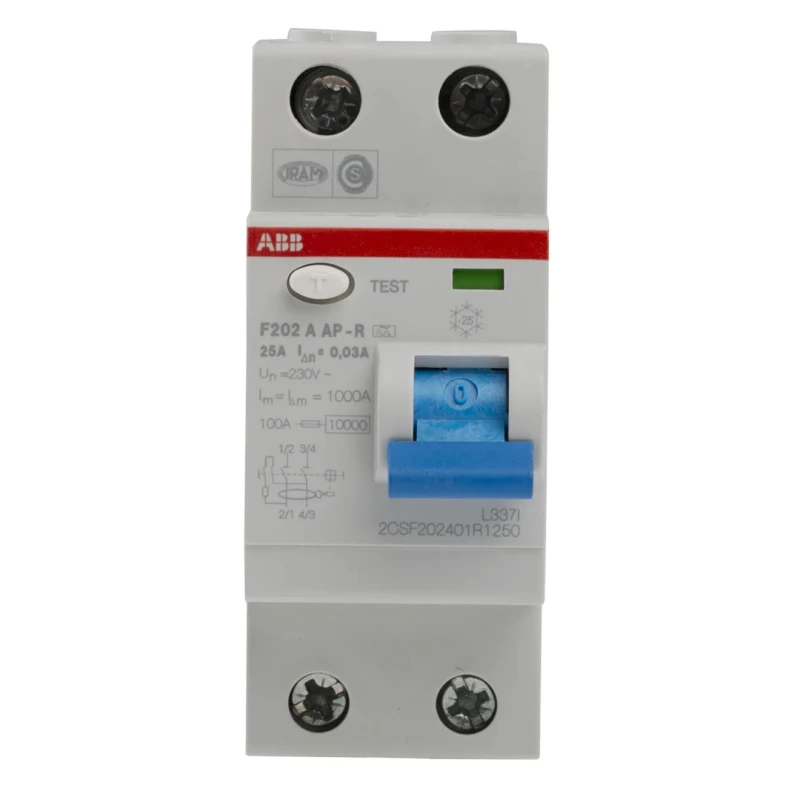

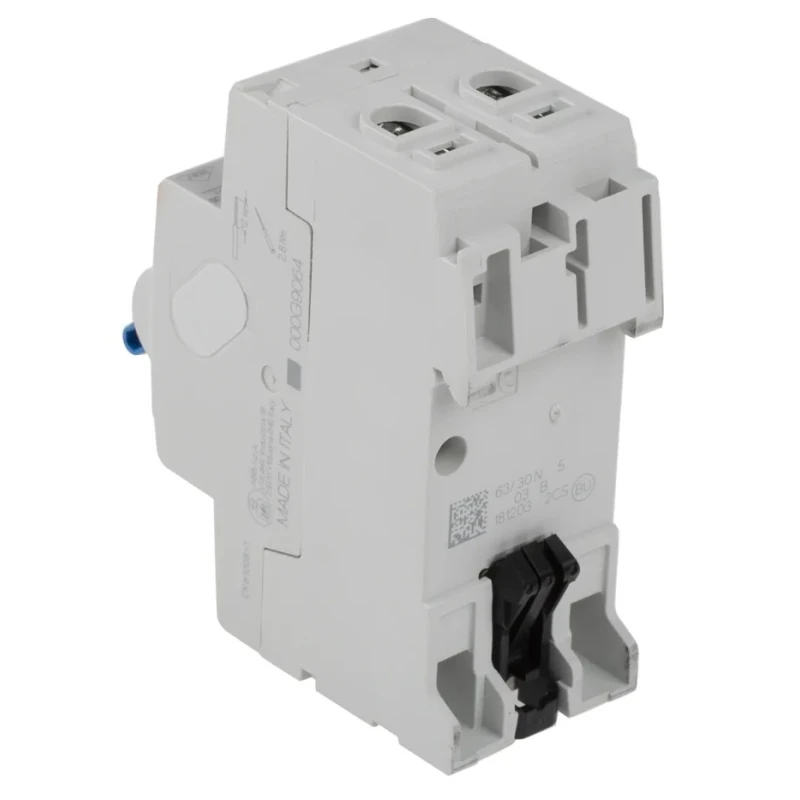

ABB Residual Current Circuit Breaker F200 Series, 25A, 2-Pole, 30mA, Type A, 1kA 2CSF202401R1250 F202 A-25/0,03 AP-R

Free Delivery in India | Lowest Global Shipping Charges

ABB Residual Current Circuit Breaker F200 Series, 25A, 2-Pole, 30mA, Type A, 1kA 2CSF202401R1250 F202 A-25/0,03 AP-R



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	F200
Brand	ABB
Height	85mm
Model	2CSF202401R1250 F202 A-25/0,03 AP-R
Depth	69mm
Width	35mm
Mount Type	DIN Rail
Current Rating	25A
Series	F200
Terminal type	Screw
Breaking Capacity	1kA
Number of Poles	2
Standards/Approvals	RoHS, CE, IEC EN 61008
Rated AC Voltage	277V ac
Tripping Characteristics	Type A
Tripping Mechanism	Electromagnetic
Reset Actuator Type	Toggle Switch
Trip Sensitivity	30mA
Break Time	Instantaneous
Earth Leakage Protection Type	Type A

Key Features

Compact design suitable for DIN rail mounting.
Provides earth fault safety protection with electromagnetic tripping mechanism.
Equipped with a toggle switch reset actuator for easy operation.
Meets international standards including RoHS, CE, and IEC EN 61008.
Features a green LED indicator for operational status.
Operates reliably in environments from -25°C to 55°C.
Designed for industrial and electronic circuit safety applications.
Manufactured in Italy ensuring high-quality standards.

Product Description

ABB 2CSF202401R1250 F202 A-25/0,03 AP-R Residual Current Circuit Breaker F200 Series is a high-performance 2-pole circuit breaker rated at 25A with a trip sensitivity of 30 mA and an instantaneous break time. It operates on 277V AC and features a breaking capacity of 1kA. This device uses an electromagnetic tripping mechanism and includes a toggle switch reset actuator for safe and convenient operation.

The compact DIN rail mount design allows for straightforward installation in control panels and circuit protection assemblies, suitable for harsh industrial environments up to 60°C. Its type A earth leakage protection ensures detection of AC and pulsating DC residual currents, providing superior safety for industrial and electronic circuits.

ABB’s F200 Series complies with international standards including RoHS, CE, and IEC EN 61008, guaranteeing product safety and reliability. The green LED operational status indicator allows quick visual confirmation of device status.

This breaker’s precise specifications include a height of 85mm, width of 35mm, and depth of 69mm. Its robust screw terminal connections ensure secure wiring. Made in Italy, this unit represents a quality solution for fault detection and industrial electrical safety.

Compact design suitable for DIN rail mounting. Provides earth fault safety protection with electromagnetic tripping mechanism. Equipped with a toggle switch reset actuator for easy operation. Meets international standards including RoHS, CE, and IEC EN 61008.

Features a green LED indicator for operational status. Dimensions: height 85mm, width 35mm, depth 69mm. Operates reliably in environments from -25°C to 55°C. Designed for industrial and electronic circuit safety applications.

Manufactured in Italy ensuring high-quality standards.

This ABB Residual Current Circuit Breaker is ideal for electrical, industrial, and automation applications requiring reliable earth fault protection. It delivers robust performance in electrical distribution boards and industrial control panels. Explore more circuit breakers and protection devices in the Electronics & Electricals category on EnvMart for comprehensive industrial safety solutions.
