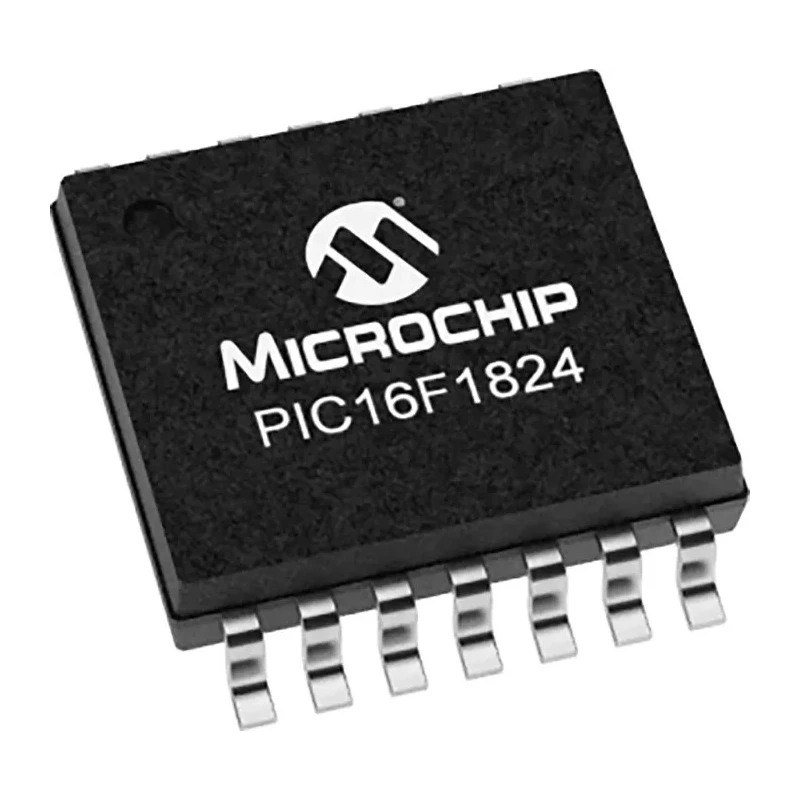

Microchip 8-bit PIC16F Microcontroller 7kB FLASH, 32 MHz, 14-Pin SOIC PIC16F1824T-I/SL

Microchip PIC16F1824T-I/SL is a high-performance 8-bit PIC microcontroller designed for industrial, automotive, and embedded applications. Featuring an enhanced mid-range PIC CPU core and 49 instruction set, this microcontroller operates at a maximum clock frequency of 32 MHz and includes 7kB FLASH program memory and 256-bit RAM for efficient code and data storage.

The device supports up to 17 programmable I/O pins enabling versatile interfacing with external devices. Its analog features include two analog comparators, eight 10-bit ADC channels for precise analog-to-digital conversion, and 5-bit DACs for control of analog outputs.

Built to withstand challenging environments, it complies with the automotive standard AEC-Q100 ensuring robust operation from -40°C to +85°C. The microcontroller package is a compact 14-Pin SOIC surface mount, measuring 8.65 mm in length, 3.9 mm in width, and only 1.5 mm in height, suitable for space-constrained PCB layouts.

The device supports a broad supply voltage range from 1.8V up to 5.5V, with a maximum power dissipation of 800 mW, balancing performance and power efficiency. Its instruction set architecture is based on RISC, facilitating rapid and efficient code execution for embedded control and processing tasks.

Applications for this microcontroller include automotive control systems, industrial automation, consumer electronics, and HVAC systems, where reliable high-speed computing and analog interfacing are essential. The PIC16F1824T-I/SL microcontroller aligns with RoHS standards, ensuring it meets environmental directives.

Built on an enhanced mid-range 8-bit PIC CPU core with 49 instructions. Operates with a maximum supply voltage of 5.5V and minimum supply voltage of 1.8V. Includes 256-bit RAM and 17 programmable input/output pins for flexible application.

Equipped with two analog comparators and eight 10-bit ADC channels for precise signal processing. Provides two timers and 5-bit DACs for timing and analog output capabilities. Designed for automotive applications compliant with AEC-Q100 standard.

Supports RISC instruction set architecture optimizing processing speed. Operating temperature range from -40°C to 85°C for harsh environment reliability. Compact dimensions: 8.65 mm length, 3.9 mm width, and 1.5 mm height.

This microcontroller is ideal for engineers and designers requiring a reliable, high-speed 8-bit processing solution with advanced analog features in a compact form factor. Explore more Microchip Microcontrollers and related components at EnvMart.
