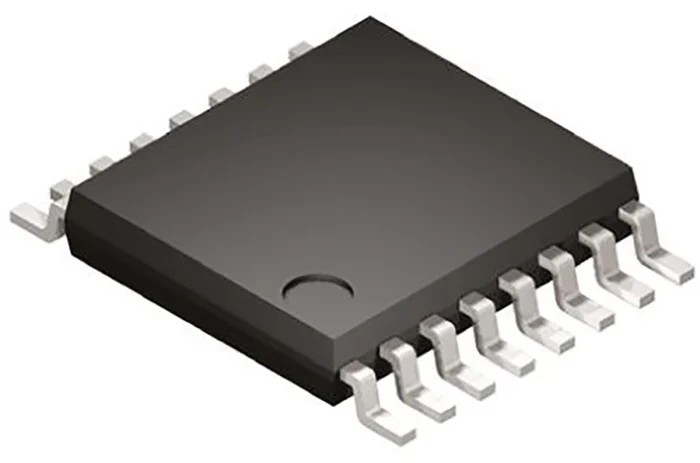

Texas Instruments Buck Converter, Surface Mount, 1.23V Output Voltage, 500 mA Output Current LM25574MT/NOPB

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Buck Converter, Surface Mount, 1.23V Output Voltage, 500 mA Output Current LM25574MT/NOPB

Name: Texas Instruments Buck Converter, Surface Mount, 1.23V Output Voltage, 500 mA Output Current LM25574MT/NOPB
Brand: Texas Instruments
SKU: 152894



Category DC-DC Converter Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Efficiency	90%
Length	5mm
Model	LM25574MT/NOPB
Depth	1.2mm
Width	4.4mm
Mount Type	Surface
Series	LM25574
Output Current	500mA
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	42V
Standards/Approvals	JEDEC, RoHS
Minimum Input Voltage	6V
Number of Pins	16
Output Voltage 1	1.23V

Key Features

Integrated N-channel MOSFET for efficient power conversion.
Wide input voltage range from 6V to 42V suitable for various applications.
Adjustable output voltage as low as 1.225V with 1.5% feedback reference accuracy.
Operating temperature range from -40°C to 125°C for robust performance.
Adjustable operating frequency between 50 kHz and 500 kHz for design flexibility.
Compact TSSOP package with 16 pins for surface mounting and easy integration.
Complies with JEDEC and RoHS standards ensuring quality and environmental safety.

Product Description

The Texas Instruments LM25574MT/NOPB is a high-performance SIMPLE SWITCHER® buck converter designed for efficient step-down voltage regulation, featuring a surface mount TSSOP package with 16 pins.

It supports a wide input voltage range from 6V to 42V and provides an adjustable output voltage starting as low as 1.225V, making it suitable for diverse industrial and electronic applications.

Equipped with an integrated N-channel MOSFET, this buck converter delivers up to 500 mA output current with an efficiency rating of approximately 90%.

The device operates reliably in temperatures ranging from -40°C to 125°C and allows adjustable switching frequency between 50 kHz and 500 kHz for optimized transient response and noise performance.

This converter complies with JEDEC and RoHS standards, ensuring quality and environmental compliance. Its compact size of 5 mm length, 4.4 mm width, and 1.2 mm depth enables easy integration into PCBs for industrial, electronic component manufacturing, power supply, and automation systems.

Integrated N-channel MOSFET enables efficient power conversion with minimal external components. Wide input voltage range supports designs from 6V up to 42V applications. Adjustable output voltage with high accuracy allows precise voltage regulation.

Wide operating temperature range for use in demanding environments. Adjustable switching frequency provides design flexibility for noise and efficiency trade-offs. Compact surface mount TSSOP package ensures easy PCB integration.

Compliance with JEDEC and RoHS certifications ensures reliable and environmentally safe operation. Ideal for power management in industrial electronics, embedded systems, and other low voltage current supply applications needing a robust and flexible DC/DC converter solution.
