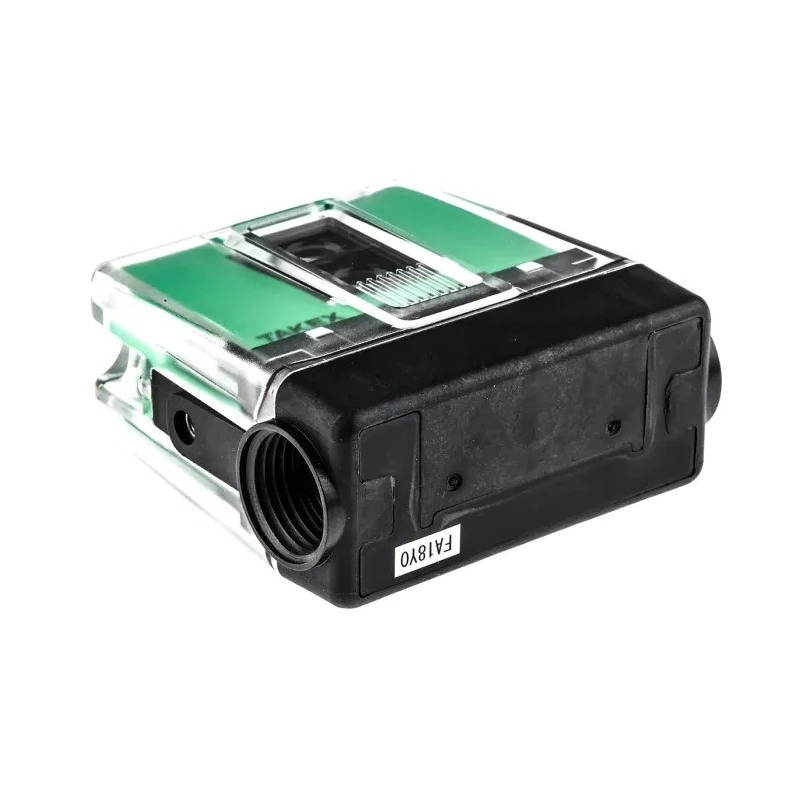

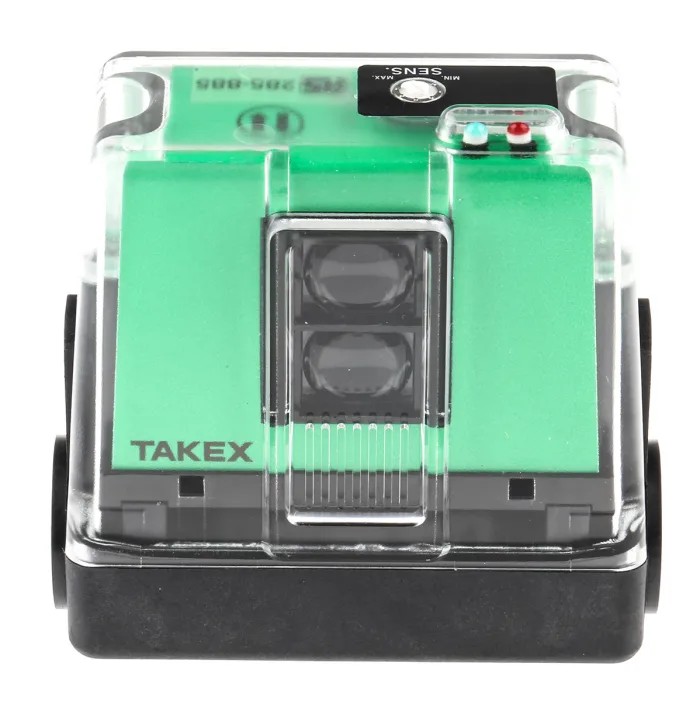

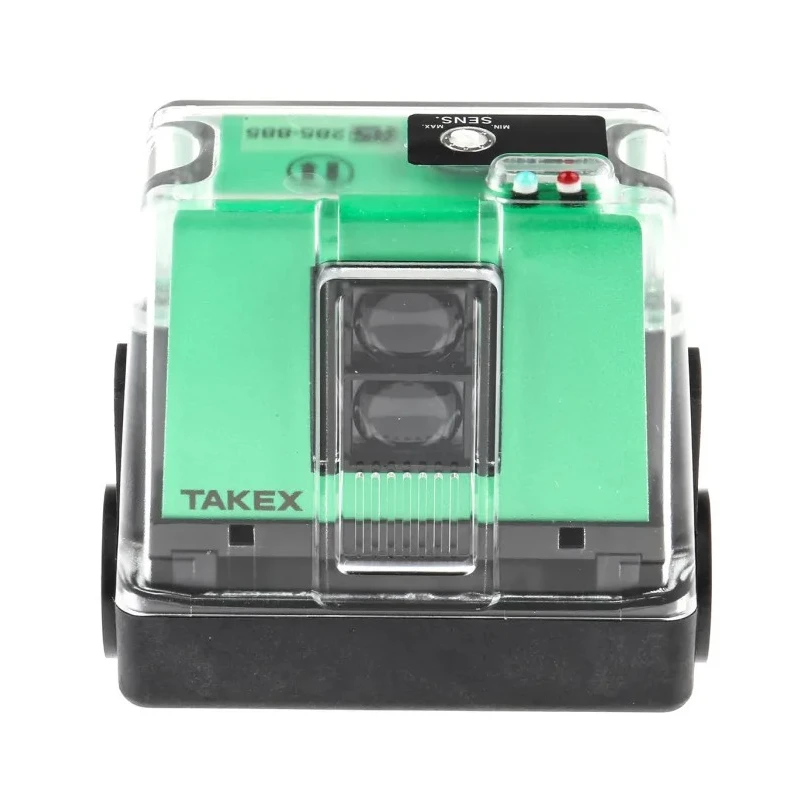

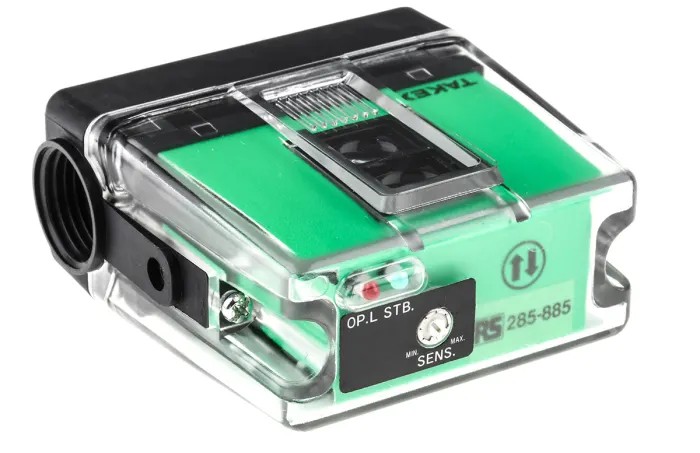

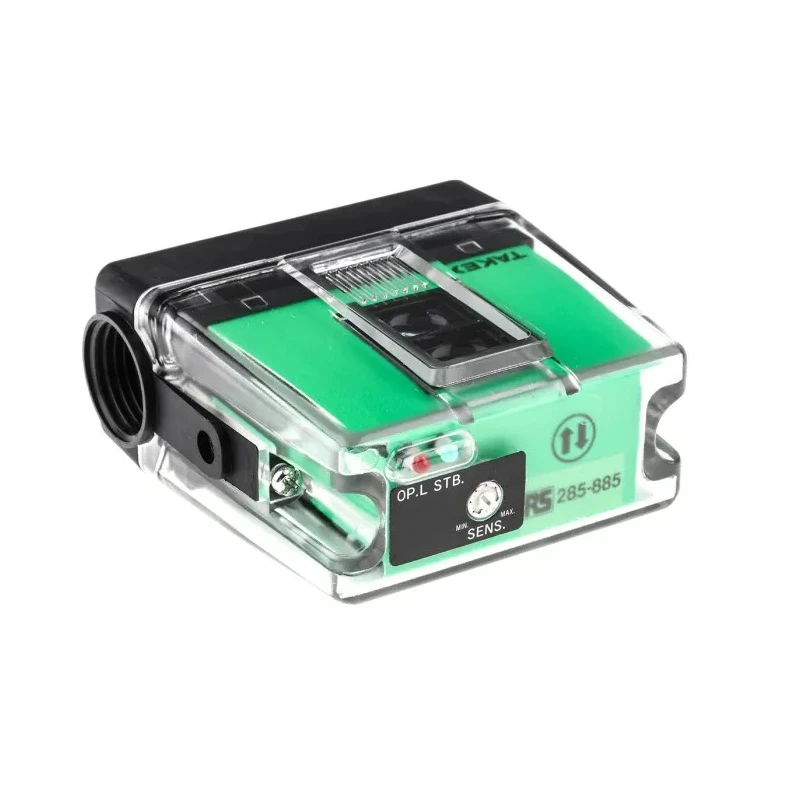

RS PRO Diffuse Photoelectric Sensor Block Sensor 700 mm Relay IP66 285-885
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | RS PRO |
| Response time | 5ms |
| Light Source | Infrared LED |
| Detection range | 700 mm |
| Model | 285-885 |
| IP Rating | IP66 |
| Housing Material | Acrylic Resin |
| Output type | Relay |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 2A |
| DetectIon Type | Diffuse |
| Terminal type | Screw |
| Interface Type | NPN |
| Maximum dc Voltage | 240V dc |
| Standards/Approvals | CE, RoHS Compliant |
| Maximum AC Voltage | 250V ac |
| Sensor Style | Block |
Key Features
- Equipped with infrared LED light source for precise diffuse detection.
- Relay output provides light ON/dark ON selectable functions.
- Robust IP66-rated acrylic resin housing ensures protection against dust and water.
- Wide operating temperature range from -25°C to 55°C for reliable performance.
- Terminal connections via screw type for secure wiring.
- Maximum AC voltage rating of 250V and DC rating of 240V with 2A current capacity.
- Response time of 5 ms enables fast detection suitable for automation tasks.
- Construction allows the base section to remain in place during sensor replacement.
Product Description
RS PRO 285-885 Diffuse Photoelectric Sensor Block Sensor features a 700 mm detection range with relay output and IP66 ingress protection. This sensor's infrared LED light source enables accurate optical proximity detection suitable for industrial automation, manufacturing, and process control applications.
The sensor is constructed with an acrylic resin housing rated IP66, providing excellent resistance to dust and water ingress, thereby ensuring durability in harsh environments. Its operating temperature range from -25°C to 55°C allows it to function reliably across a variety of industrial settings.
The block sensor style includes a base section containing terminal connections with screw terminals, enabling secure wiring. This base remains fixed during sensor replacement, facilitating maintenance. The device operates at a maximum AC voltage of 250V and DC voltage of 240V, with a maximum current capacity of 2A, making it suitable for many control circuits.
With a rapid 5 ms response time, this sensor is capable of high-speed detection tasks. It supports light ON/dark ON relay outputs, selectable as per application requirements. The included 20 mm cable gland and knockout further simplify installation procedures.
Manufactured in Japan, this RS PRO sensor complies with CE and RoHS standards, ensuring quality and environmental safety. It is ideal for industrial, laboratory, construction, manufacturing, and automation uses where reliable diffuse photoelectric sensing is required.
Infrared LED light source for precise diffuse detection. Relay output selectable between light ON/dark ON. Robust acrylic resin housing rated IP66 for durability. Wide operating temperature range from -25°C to 55°C. Screw terminal type connections for secure wiring.
Maximum voltages: 250V AC, 240V DC; maximum current 2A. Fast 5 ms response time for efficient detection. Base section remains in place during sensor replacement. Includes 20 mm cable gland and knockout for installation. Compliance with CE and RoHS standards; made in Japan.
Explore more RS PRO sensors and automation control gear on EnvMart for reliable and high-performance industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is 700 mm, allowing for effective proximity detection in various applications.
It has a response time of 5 ms, enabling fast detection suitable for automation tasks.
The sensor is equipped with an infrared LED light source for precise diffuse detection.
This model has an IP66 rating, providing protection against dust and water ingress.
The maximum AC voltage rating is 250V, and the maximum DC voltage rating is 240V, with a current capacity of 2A.
It operates within a temperature range of -25°C to 55°C, ensuring reliable performance in various environments.

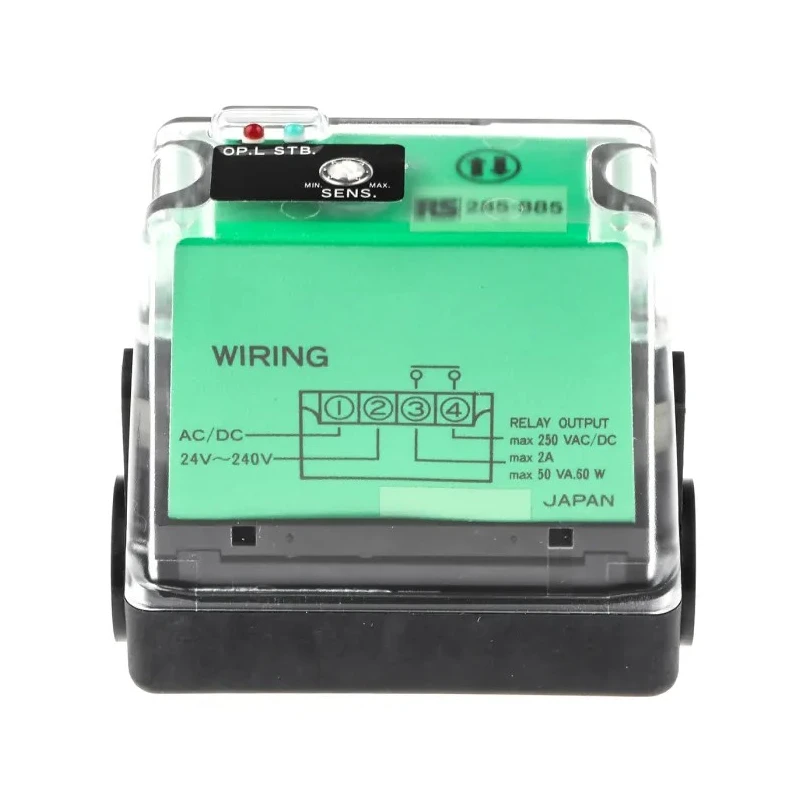

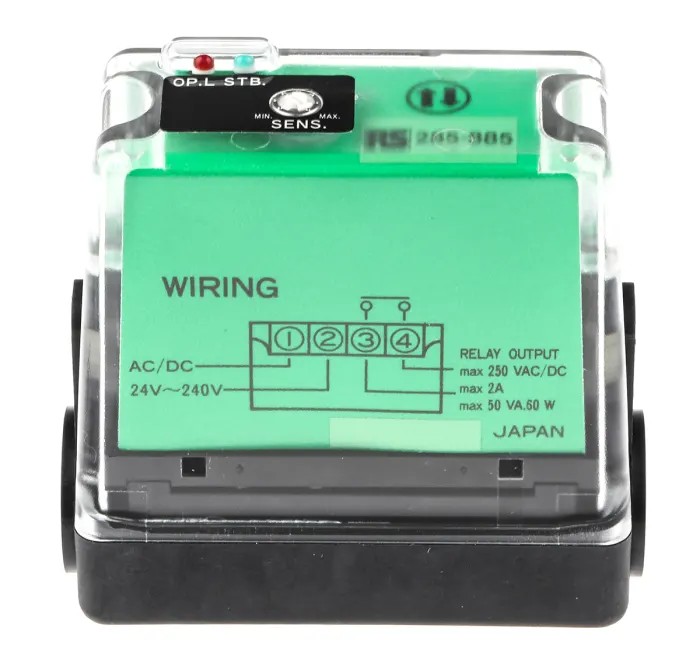

Wiring is connected via screw terminals, providing secure and reliable connections.
It features a relay output with selectable light ON/dark ON functions, adaptable to different application needs.
The housing is made from acrylic resin, ensuring durability and protection in industrial settings.
Yes, it complies with CE and RoHS standards, ensuring quality and environmental safety.
This model features a block sensor style, which includes a base section that remains fixed during sensor replacement.
It includes a 20 mm cable gland and knockout to facilitate installation procedures.
