Souriau Sunbank by Eaton Circular Connector 3 Contacts Cable Plug Female IP65 Aluminium Housing 84011872

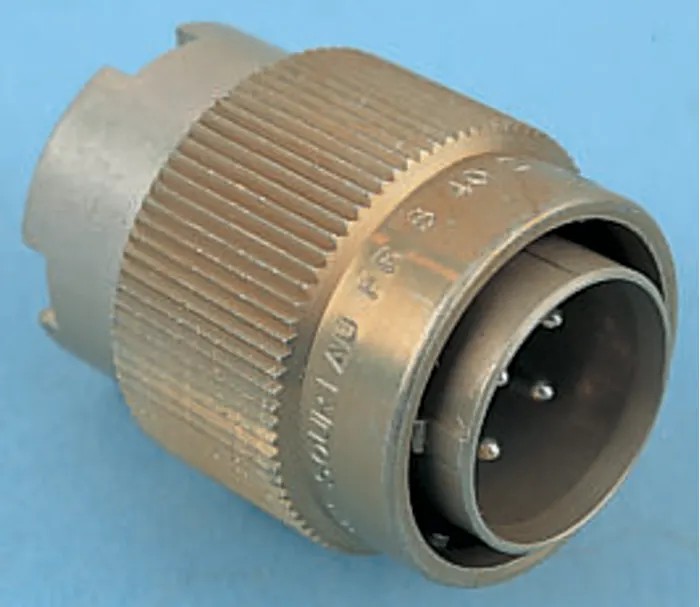

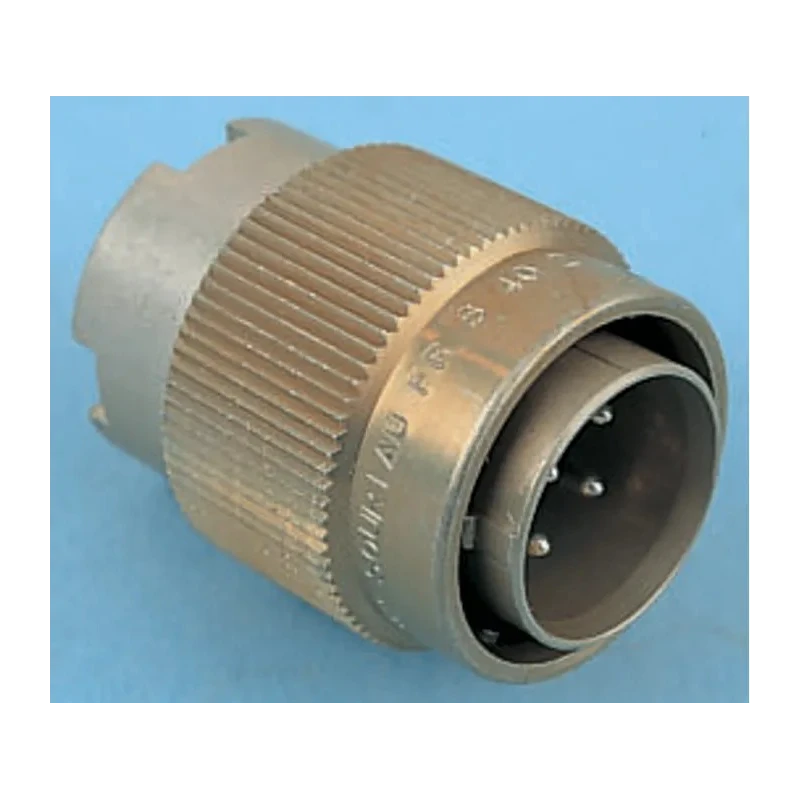

Souriau Sunbank by Eaton 84011872 Circular Connector is a robust cable plug with female contact designed specifically for industrial circular connector applications. Its aluminium housing provides excellent durability and mechanical protection, ensuring long-lasting service in demanding environments.

Equipped with 3 contacts, this connector supports current up to 11A and voltage ratings up to 2000V, suitable for high-power connections requiring safety and reliability.

The IP65 rating guarantees protection against dust and water, making it ideal for harsh industrial and manufacturing settings. It features a bayonet mating system with straight orientation for secure and fast connections.

The connector operates efficiently within a temperature range of -40°C to 85°C, ensuring performance in both cold and warm industrial climates. The contacts are made of copper with silver plating to maintain excellent electrical conductivity and corrosion resistance.

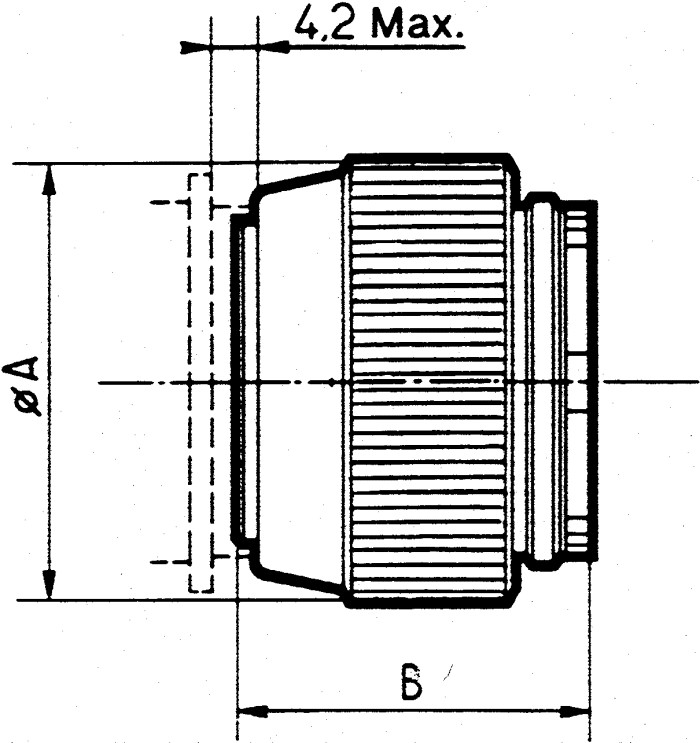

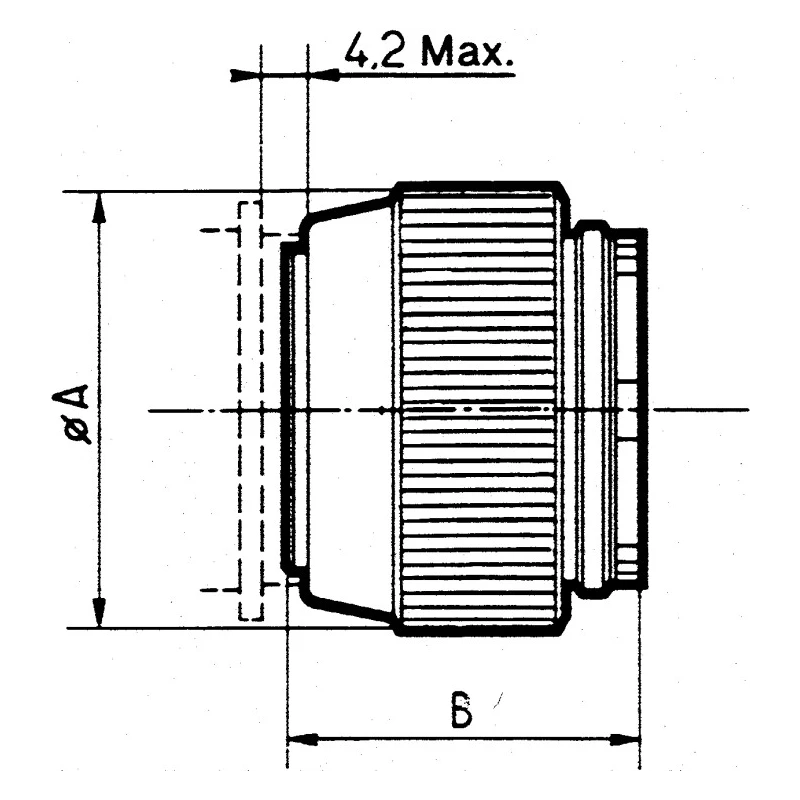

The solder termination type allows for secure cable attachment, and the connector size follows standard dimensions with a shell size of 22.5 mm for compatibility with corresponding counterparts.

Features 3 contacts ensuring reliable electrical connections. Constructed with an aluminium housing for robust performance. Rated IP65 for protection against dust and water ingress. Designed with a bayonet mating type and a straight orientation.

Operates safely between -40°C and 85°C temperature range. Rated for voltage up to 2000V and current up to 11A. Connector size is standard with shell size of 22.5 mm. Contact material is copper with silver plating for optimal conductivity.

This connector is widely used in industrial electronics, power distribution, manufacturing, automation, and related commercial and industrial sectors requiring reliable cable connections.
