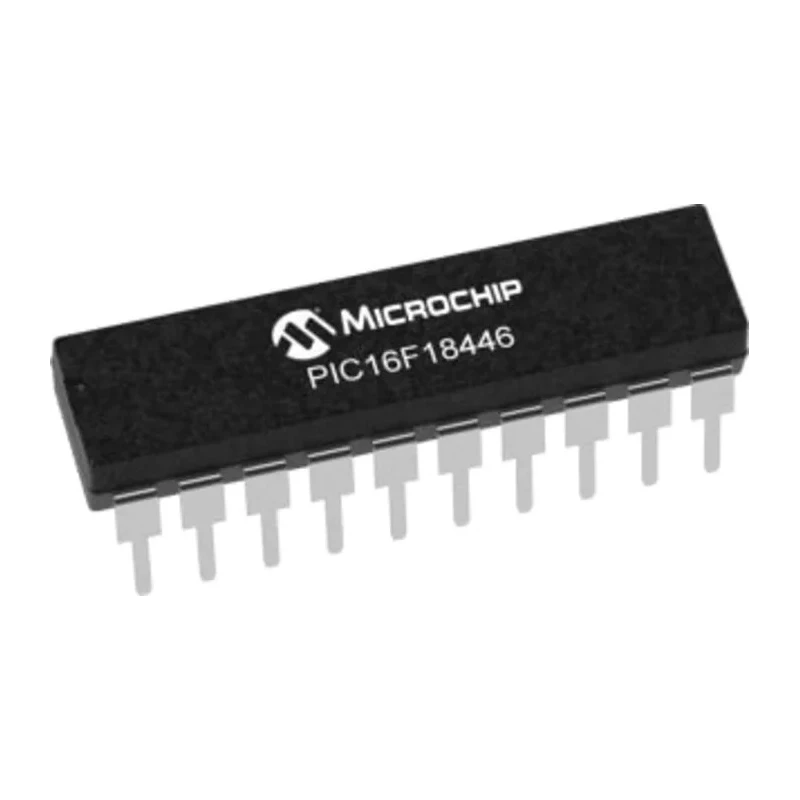

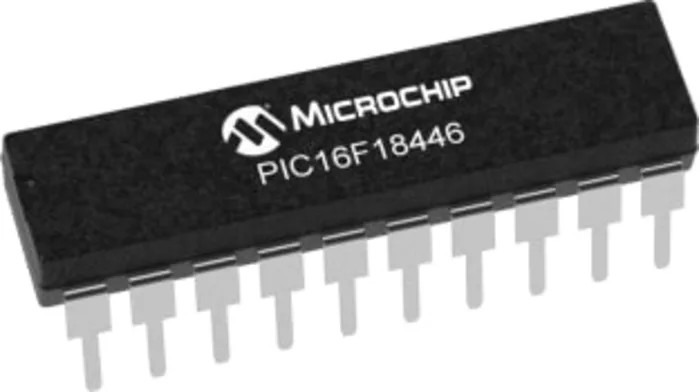

Microchip 8-bit PIC Microcontroller 32 MHz 28kB FLASH 20-Pin DIP PIC16F18446-I/P

Microchip PIC16F18446-I/P is an advanced 8-bit PIC microcontroller designed for diverse industrial, automotive, and embedded applications. Operating at a maximum clock frequency of 32 MHz with a 28kB FLASH memory size, this device offers efficient code execution and ample storage for complex programs.

This microcontroller incorporates high resolution analog peripherals including 17 channels of 10-bit ADCs and 2 analogue comparators, enhancing its signal processing capabilities. It supports essential communication protocols such as EUSART, I2C, and SPI, enabling seamless interfacing with a wide range of peripherals and sensors.

The device operates within a robust supply voltage range from 1.8V to 5.5V and has a maximum power dissipation of 800mW, making it suitable for power-conscious designs. Feature-rich timers including a Hardware Limit Timer and Signal Measurement Timer provide precise timing and control functions. The integrated DAC and Core Independent Peripherals further increase its versatility for various control and measurement applications.

With an operational temperature range from -40°C to 85°C, the PIC16F18446-I/P is engineered for harsh industrial environments. The package is a standard 20-pin DIP through-hole type, which facilitates easy prototyping and integration into existing hardware platforms. Its compact size measuring approximately 26.924mm in length and 7.11mm in width allows for use in space-limited embedded solutions.

The microcontroller features eXtreme Low-Power (XLP) technology with IDLE and DOZE modes to optimize energy consumption. Additional system features include Peripheral Module Disable (PMD), Peripheral Pin Select (PPS), Zero Cross Detect (ZCD), Windowed Watchdog Timer (WWDT), and a range of configurable logic modules for enhanced customization and control.

This product is intended for use in automotive, industrial automation, consumer electronics, and general embedded systems requiring a high-performance, low-power 8-bit microcontroller.

High resolution analog and core independent peripherals. Multiple communications interfaces including EUSART, I2C, SPI. Wide operating voltage from 1.8V to 5.5V and power dissipation of 800mW. Robust operating temperature range of -40°C to 85°C.

Low power consumption with eXtreme Low-Power technology. Compact 20-pin DIP package with through-hole mount. Enhanced timers and DAC for precise control applications. Suitable for industrial, automotive, and embedded system applications.

Flash memory type and 2048B RAM for reliable program and data storage. Explore more Microchip Microcontrollers and related semiconductor products on EnvMart for advanced control solutions.
