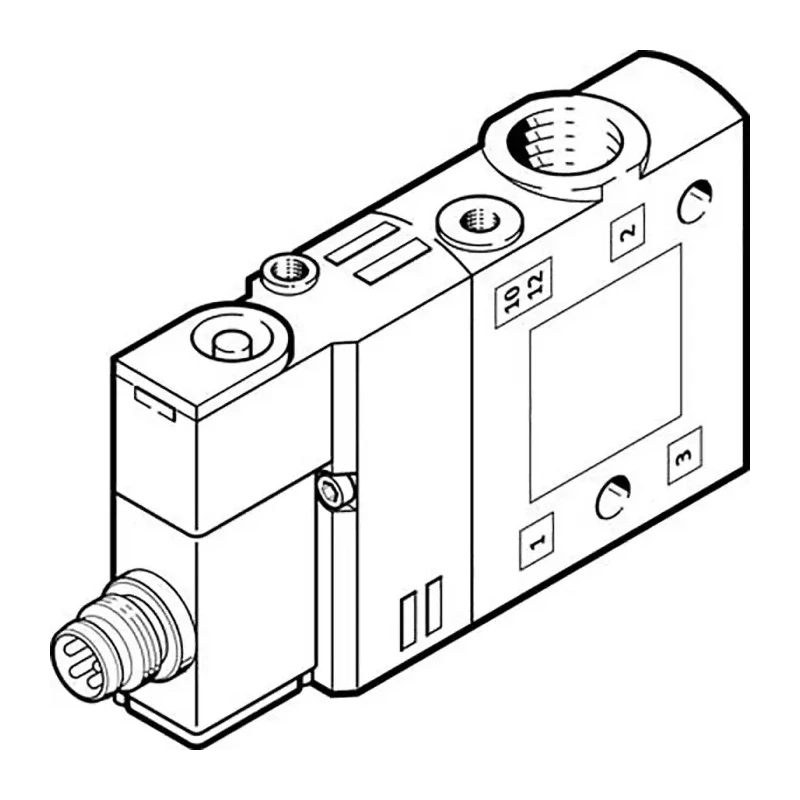

Festo Solenoid Pilot Valve Pilot G 1/8 in Die Cast Aluminium 900L/min 8 Bar 24V dc CPE14-M1CH-3GL-1/8
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 24V dc |
| Brand | Festo |
| Body Material | Die Cast Aluminium |
| Maximum Operating Pressure | 8 bar |
| Model | CPE14-M1CH-3GL-1/8 |
| Mount Type | Through Hole |
| Series | CPE |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 50°C |
| Thread Size | 1/8 in |
| Number of Positions | 2 |
| Port Size | 1/8 in |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Pilot |
| Maximum Flow Rate | 900L/min |
| Connection Thread Standard | G 1/8 |
| Minimum Pilot Pressure | 0.9bar |
| Valve Function | 3/2 |
| Maximum Pilot Pressure | 10bar |
| Port Gender | Female |
Key Features
- The valve features a 3/2 function with three ports and two switching positions.
- Die cast aluminium body ensures durable, corrosion-resistant performance.
- Operates efficiently at pressures up to 8 bar and maximum pilot pressure of 10 bar.
- Standard 1/8 in G-type female thread ports enable easy integration.
- NBR seals prevent air leakage and contamination for smooth operation.
- Rated IP67 for dust and water immersion protection enhances durability.
- Maximum flow rate of 900 L/min supports rapid actuation in pneumatic systems.
- Operates reliably between -5°C and 50°C ambient temperatures.
Product Description
Festo CPE14-M1CH-3GL-1/8 Solenoid Pilot Valve is a high-quality pneumatic control valve engineered for precise and reliable flow direction in pneumatic systems. The valve operates at 24V dc and features a robust die cast aluminium body resistant to corrosion and mechanical impacts.
This valve has a 3/2 valve function, meaning it comprises three ports and two switching positions, suitable for controlling double-acting cylinders commonly used in industrial applications. It maintains a maximum operating pressure of 8 bar with a pilot pressure range from 0.9 up to 10 bar. The valve's standard port size is 1/8 inch with G type female threaded connections, facilitating straightforward system integration.
The valve employs NBR seals to effectively prevent air leakage and contamination, ensuring long service life and continuous reliable operation. Its IP67 rating provides protection against dust ingress and can withstand immersion in water up to 1 meter depth for 30 minutes, making it suitable for harsh industrial environments.
Featuring a nominal flow rate of 900 L/min, the valve enables rapid response times in time-sensitive pneumatic operations. The operating temperature range from -5°C to 50°C makes it adaptable for varied ambient conditions. Its mounting is designed as through hole for ease of installation.
Common application areas include irrigation systems, oil and gas processing plants, and air compressor assemblies where precise pneumatic control is essential. The valve's three-port two-position configuration enables versatile pneumatic actuation.
Durable die cast aluminium body protects against environmental damage. High flow rate supports efficient system response. IP67 rating ensures reliability in dusty and wet conditions. Sealed design minimizes air leakage and contamination risks.
Explore more pneumatic solutions and solenoid valve products in the Industrial Supplies category on EnvMart.
Explore more products in our Pneumatic Solenoid Valves category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 8 bar.
It has a maximum flow rate of 900 L/min, supporting rapid actuation in pneumatic systems.
This valve operates at a voltage of 24V dc.
The operating temperature range for this model is from -5°C to 50°C.
It features three ports, which is typical for a 3/2 valve function.
The valve is designed for through hole mounting, facilitating easy installation.
The body of this valve is made from die cast aluminium, providing corrosion resistance.
The standard port size is 1/8 inch with G-type female threaded connections.
The minimum pilot pressure is 0.9 bar, with a maximum pilot pressure of 10 bar.
This model has an IP67 rating, providing protection against dust and water immersion.
Common applications include irrigation systems, oil and gas processing plants, and air compressor assemblies.
The valve employs NBR seals to prevent air leakage and contamination.
