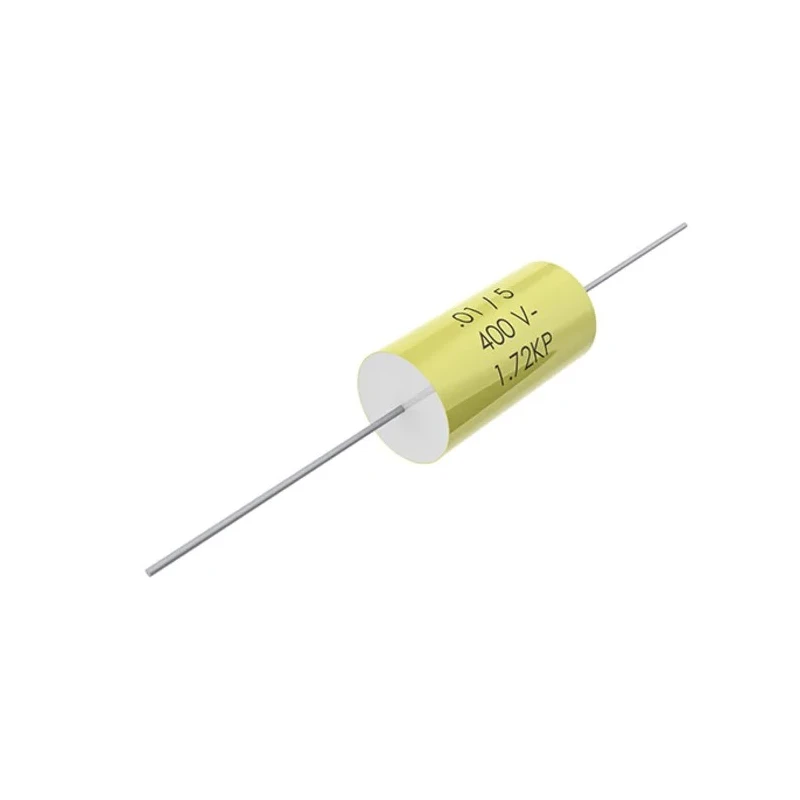

KEMET A72 Film Capacitor, ±10% Tolerance, 10 nF Capacitance, 1000 V DC, 400 V AC, Through Hole Mount A72QQ2100AA02K
Specifications
| Country of Origin | Italy |
|---|---|
| Capacitance Range | 47 pF - 0.33 μF |
| Diameter | 5 - 22.5 mm |
| Brand | KEMET |
| Length | 28mm |
| Model | A72QQ2100AA02K |
| Width | 8.5mm |
| Mount Type | Through Hole |
| Series | A72 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±10 % |
| Capacitance | 10nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Axial |
| Dissipation Factor | 0.1% |
| Lead Length | 40mm |
| Standards/Approvals | UL, IEC 60384-13 |
| Package/Case | Plastic |
| Pin Count | 2 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 1000V dc |
| Lead Diameter | 0.8mm |
| Capacitance tolerance | ±5%, ±10%, ±20% |
Key Features
- Capacitance of 10 nF suitable for high frequency applications.
- Capacitor features a tolerance of ±10% ensuring precision.
- Rated for continuous operation at 1000 V DC and 400 V AC voltages.
- Constructed with axial lead through hole mounting for easy PCB assembly.
- Operating temperature range from -55°C to 105°C for broad environmental support.
- Encapsulated with polyester tape and thermosetting resin for durability.
- Complies with UL and IEC 60384-13 standards for safety and reliability.
- Lead length is 40 mm with a 0.8 mm lead diameter for axle termination.
Product Description
KEMET A72QQ2100AA02K film capacitor is designed for precise electrical performance with a capacitance of 10 nF and a tolerance of ±10%. This capacitor supports DC voltage up to 1000 V and AC voltage rated at 400 V, making it suitable for power electronics and high frequency circuits.
It features a through hole mount type with axial leads, allowing secure and reliable PCB installation. The capacitor dimensions are 28 mm in length and 8.5 mm in width, with leads measuring 40 mm in length and 0.8 mm in diameter, which are welded to the metal layers for low resistance and durability.
The construction uses polypropylene film and metal foil or metallized film with metal foil to achieve excellent electrical properties and long life. It is encapsulated in a polyester tape wrapping and thermosetting resin for mechanical stability and environmental protection.
Operating temperature ranges from -55°C to 105°C, enabling use in various industrial, automotive, and consumer electronics applications. This series complies with UL and IEC 60384-13 standards ensuring adherence to international safety and performance benchmarks.
The robust plastic case enhances physical protection, while lead-free terminations and tape and reel packaging support automated assembly and environmental compliance. Manufactured in Italy, this capacitor guarantees consistent quality and reliability.
Capacitance of 10 nF suitable for high frequency applications. Capacitor features a tolerance of ±10% ensuring precision. Rated for continuous operation at 1000 V DC and 400 V AC voltages. Constructed with axial lead through hole mounting for easy PCB assembly.
Operating temperature range from -55°C to 105°C for broad environmental support. Encapsulated with polyester tape and thermosetting resin for durability. Complies with UL and IEC 60384-13 standards for safety and reliability.
Lead length is 40 mm with a 0.8 mm lead diameter for axle termination. Plastic package case provides robust physical protection. Manufactured in Italy ensuring high quality standards.
This film capacitor is ideal for industrial electronics, power supply filtering, motor drives, lighting ballasts, and automotive applications. For additional product options and technical support, explore the Film Capacitors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 10 nF, making it suitable for high frequency applications.
It is rated for continuous operation at 1000 V DC and 400 V AC.
The capacitor features a tolerance of ±10%, ensuring precision in its performance.
It operates within a temperature range of -55°C to 105°C, allowing for use in various environments.
The lead length is 40 mm with a diameter of 0.8 mm, designed for axial termination.
This capacitor features a through hole mount type, facilitating secure PCB assembly.
It is constructed with polypropylene film and metal foil or metallized film, encapsulated in polyester tape and thermosetting resin for stability.
The capacitor complies with UL and IEC 60384-13 standards, ensuring adherence to safety and performance benchmarks.
The dimensions are 28 mm in length, 8.5 mm in width, and it has a pin count of 2.
It is suitable for industrial electronics, power supply filtering, motor drives, lighting ballasts, and automotive applications.
The dissipation factor is 0.1%, indicating low energy loss during operation.
This capacitor is manufactured in Italy, ensuring consistent quality standards.
