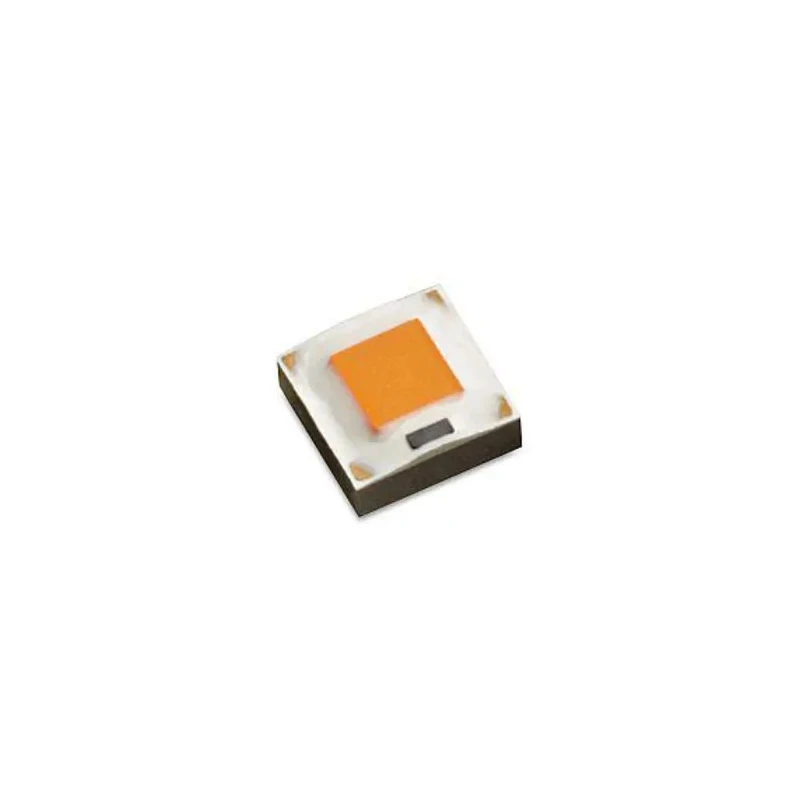

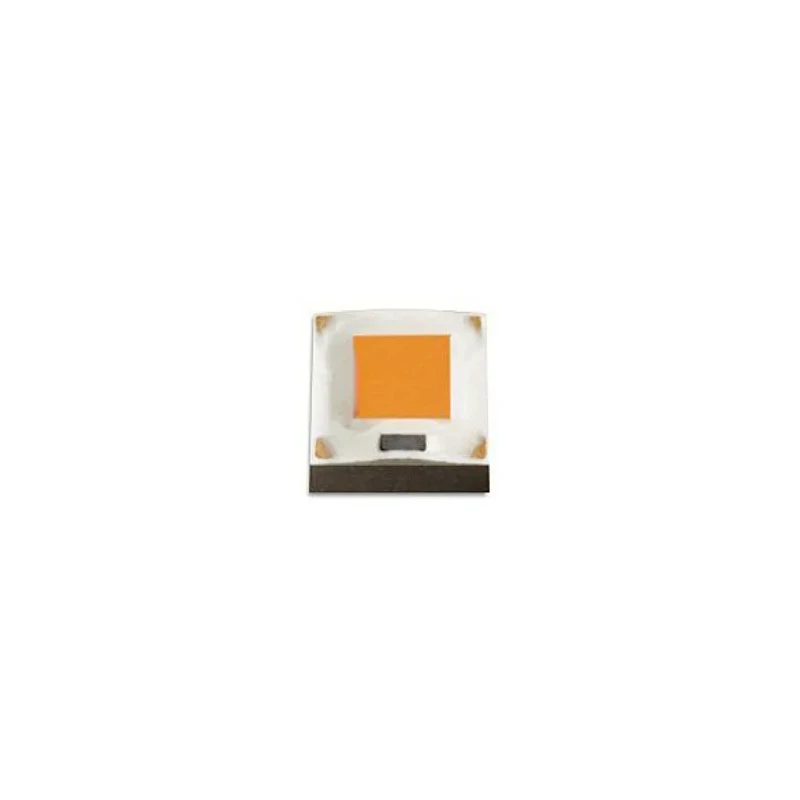

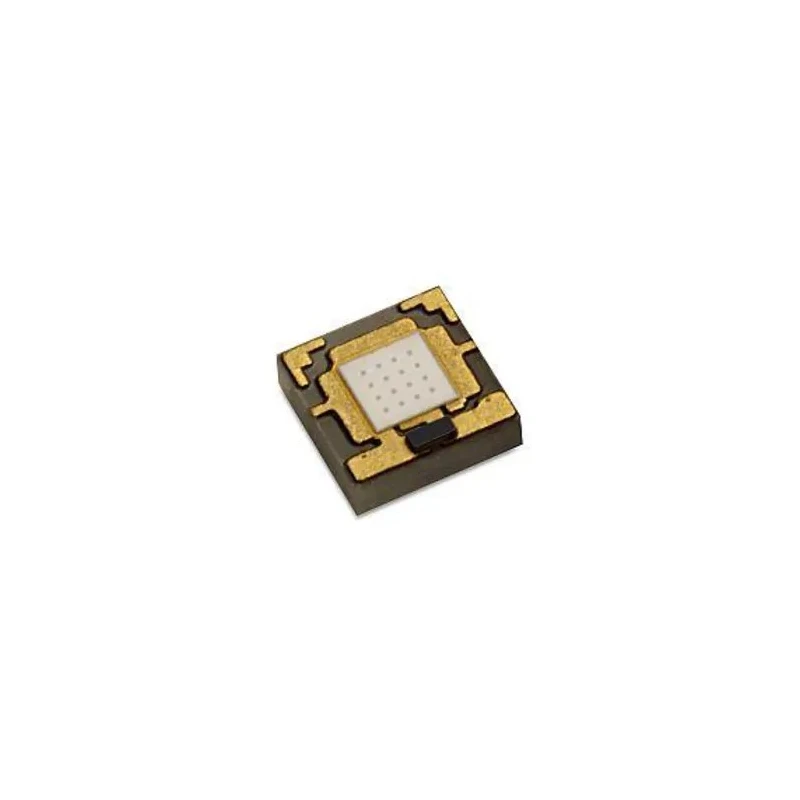

Lumileds Cyan 3.5 V Surface Mount LED LUXEON CZ L1CU-CYN1000000000

Free Delivery in India | Lowest Global Shipping Charges

Lumileds Cyan 3.5 V Surface Mount LED LUXEON CZ L1CU-CYN1000000000

Name: Lumileds Cyan 3.5 V Surface Mount LED LUXEON CZ L1CU-CYN1000000000
Brand: Lumileds
SKU: 151312



Category LED - Light Emitting Diodes Brand Lumileds Condition New

Specifications

Country of Origin	Malaysia
Brand	Lumileds
Model	L1CU-CYN1000000000
Packaging	Tape & Reel
Mount Type	Surface
Series	LUXEON CZ
Maximum forward current	350mA
Viewing angle	120 °
Package Type	Surface Mount
Lens Colour	Blue
Standards/Approvals	RoHS
LED Colour	Cyan
Dominant Wavelength	510nm
Forward Voltage	3.5V
Number of Pins	2
Lens Dimensions	2 x 2 x 0.8 mm
Lens Shape	Square
LED Luminous Flux	73 lm

Key Features

Features a compact 2 x 2 x 0.8 mm square lens measuring 2mm on each side and 0.8mm height.
Operates with a forward voltage of 3.5 V and maximum forward current of 350 mA.
Delivers luminous flux of 73 lumens with a viewing angle of 120 degrees for wide illumination.
Constructed with a clear blue lens for cyan LED light output at 510nm dominant wavelength.
Equipped with 2 pins and designed for surface mount applications with tape and reel packaging.
Meets RoHS standards ensuring environmental compliance and manufactured in Malaysia.

Product Description

Lumileds L1CU-CYN1000000000 Cyan 3.5 V Surface Mount LED is part of the LUXEON CZ series, designed for superior optical performance and maximum illumination efficiency. This LED offers a compact footprint measuring 2mm in length and width, with a height of 0.8mm, making it suitable for space-constrained electronics applications.

It operates at a forward voltage of 3.5 volts with a maximum forward current rating of 350 mA, providing reliable performance with low thermal resistance and excellent hot/cold stability.

The device emits cyan light with a dominant wavelength of 510 nm, featuring a clear blue square lens that provides high luminous efficacy and a broad viewing angle of 120 degrees, ideal for uniform lighting in various electronic displays and indicators.

The LED comes with 2 pins and is packaged using tape and reel suitable for automated surface mount technology (SMT) assembly lines. Its compliance with RoHS standards ensures it meets environmental regulations for hazardous substances, and the product is manufactured in Malaysia.

Typical applications include architecture lighting, color tunable lighting systems, emergency vehicle lighting, entertainment lighting, specialty lamps, and general high-performance illumination solutions.

Features a compact 2 x 2 x 0.8 mm square lens measuring 2mm on each side and 0.8mm height. Operates with a forward voltage of 3.5 V and maximum forward current of 350 mA. Delivers luminous flux of 73 lumens with a viewing angle of 120 degrees for wide illumination.

Constructed with a clear blue lens for cyan LED light output at 510nm dominant wavelength. Equipped with 2 pins and designed for surface mount applications with tape and reel packaging. Meets RoHS standards ensuring environmental compliance and manufactured in Malaysia.
