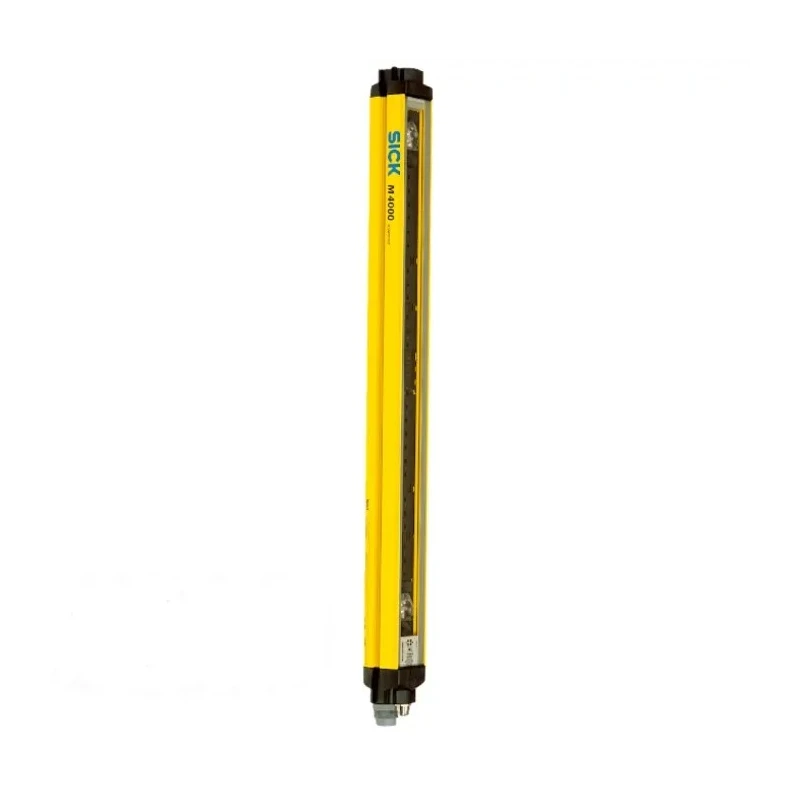

SICK M4000 Series Light Curtain Sender, 2 Beams, 500mm Protective Height, 70m Maximum Scanning Distance M40S-025003AA0

SICK M40S-025003AA0 M4000 Series Light Curtain Sender features 2 beams with a protective height of 500 mm and maximum scanning distance of 70 meters. Designed as a multiple-beam opto-electronic safety device, it is intended to safeguard personnel and machinery by detecting interruptions in a defined light path, making it ideal for automated industrial safety applications.

This safety light curtain operates on a 24V DC supply, within a range from 19.2V to 28.8V DC, tolerating residual ripple up to 10% under specified conditions. The device communicates status and diagnostic data through LEDs and a seven-segment display, facilitating real-time monitoring. Configuration is enabled via dedicated CDS software using a 4-pin M8 connector.

Constructed for industrial environments, it offers an IP65 rated enclosure and works within a temperature range of -30°C to +55°C, with non-condensing humidity levels from 15% to 95%. The Hirschmann 12-pin male connector ensures stable, secure system connectivity with permitted cable lengths up to 50 meters.

This sender unit with 2 independent beams provides basic multi-beam object detection, delivering Safety Type 4 category-level protection, the highest in industry standards. It is suitable for perimeter protection of automated loading stations, safeguarding conveyor transfer points, robotic cell front guards, and access control in packaging machinery. Optional accessories such as deflection mirrors, columns, laser alignment aids, and mounting brackets are available separately.

Reliable detection with a minimum scanning distance of 0.5 meters enables close proximity safeguarding. High-performance safety with fast 10 ms response time improves machine and personnel protection. Robust Hirschmann plug interface simplifies integration and maintenance.

IP65 protection rating supports durable operation in challenging industrial conditions. Conforms to IEC 61508, EN61496-1&2, EN954 standards with CE and cULus approvals.

Manufactured in Germany, the M40S-025003AA0 sender is an essential component for safety light curtain systems across various industrial sectors, including manufacturing automation, robotics, and material handling. It provides integral safety to protect personnel and machinery from hazards in operational environments.
