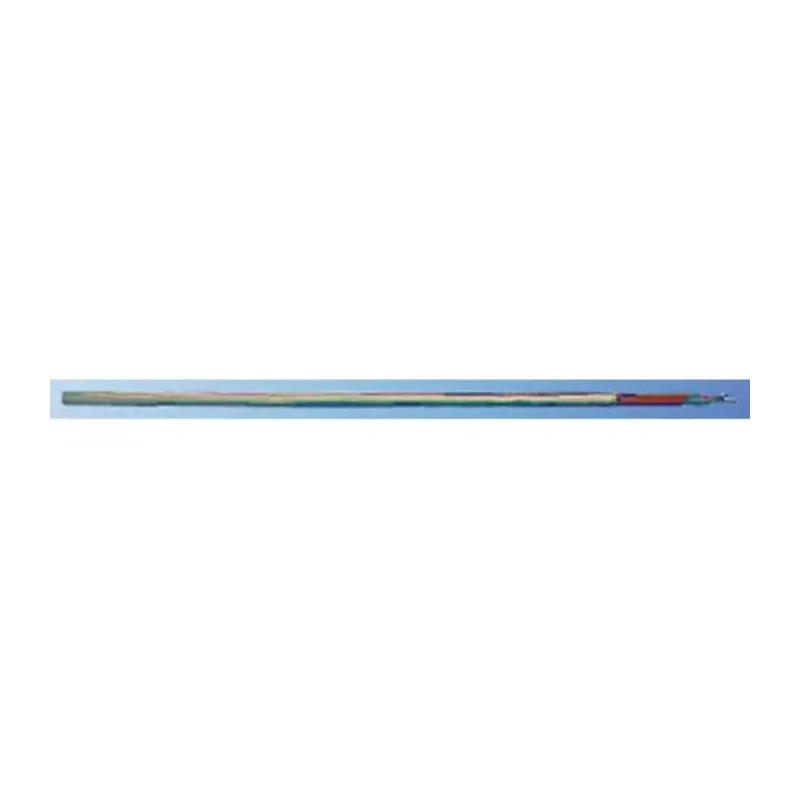

Jumo PT100 RTD Sensor 3 mm Diameter, 100 mm Length, 2 Wire, Class B Accuracy, 600°C Max PT100

Jumo PT100 RTD Sensor PT100 type, equipped with a 3 mm diameter probe and 100 mm length, offers reliable temperature sensing with Class B accuracy and a maximum operating temperature of 600°C. This sheathed resistance thermometer is manufactured according to IEC 751 standards, ensuring high-quality and consistency in performance across industrial and laboratory applications.

The sensor's sheath is constructed with thin-walled stainless steel, providing robust mechanical protection while maintaining flexibility. Inside, low-ohm copper wires are embedded within compressed, fire-resistant magnesium oxide to reduce vibration effects and improve durability.

The device uses a 2-wire termination type with a silicon cable that extends 2.5 meters and operates reliably between -50°C and +180°C. Its rapid response time of 41 seconds allows for effective temperature monitoring and control.

This RTD sensor is well-suited for demanding environments such as chemical processing plants, power generation facilities, pipelines, automotive engine assembly, and various testing setups. The sensor can be supplied with custom installation lengths for specific applications. Its design also facilitates simple replacement and maintenance.

Sheathed resistance thermometer compliant with IEC 751 standards. Operating temperature range from -50°C to 600°C maximum. Flexible, thin-walled stainless steel sheath provides durability and vibration resistance. Copper internal conducting wires embedded in compressed, fire-resistant magnesium oxide.

2-wire circuit with 2.5 m silicon connection lead rated for -50°C to +180°C. Rapid response time of 41 seconds for accurate sensing. Application-specific installation lengths available for versatility. Ideal for industrial use in chemical plants, power plants, pipelines, engine building, and testing sites.
