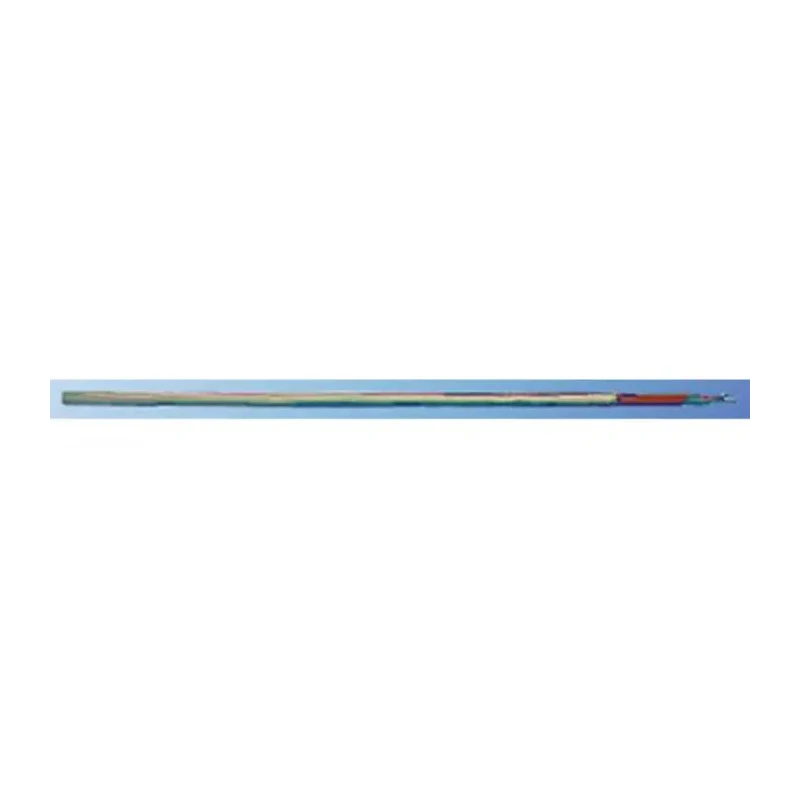

Jumo PT100 RTD Sensor 3 mm Diameter, 300 mm Probe Length, 2 Wire, Class B Accuracy, 600 °C Max Temperature PT100

Free Delivery in India | Lowest Global Shipping Charges

Jumo PT100 RTD Sensor 3 mm Diameter, 300 mm Probe Length, 2 Wire, Class B Accuracy, 600 °C Max Temperature PT100

Name: Jumo PT100 RTD Sensor 3 mm Diameter, 300 mm Probe Length, 2 Wire, Class B Accuracy, 600 °C Max Temperature PT100
Brand: JUMO
SKU: 150715
Price: 135.6 USD
Availability: InStock



Category RTD Sensor Brand JUMO Condition New

Specifications

Country of Origin	Germany
Accuracy	Class B
Brand	Jumo
Response time	41s
Model	PT100
Cable Length	2.5m
Sensor Type	PT100
Probe length	300mm
Probe Diameter	3mm
Termination Type	Cable
Maximum Temperature Sensed	600°C
Minimum Temperature Sensed	-50°C
Number of Wires	2
Connection lead made of silicon, 2.5 m, cable temperature range	-50 °C → +180 °C

Key Features

Sheathed resistance thermometer compliant with IEC 751 standards.
Flexible stainless steel sheath with low-ohm copper internal wires embedded in fire-resistant magnesium oxide.
Designed for vibration resistance and rapid response time of 41 seconds.
Connection lead of 2.5 m silicon cable, temperature range from -50 °C to +180 °C.
Resistance thermometer suitable for chemical plants, power plants, pipelines, and engine building applications.
Minimum sensing temperature of -50 °C and maximum up to 600 °C.
2-wire circuit design with cable termination.
Made in Germany ensuring high quality and durability.

Product Description

Jumo PT100 RTD Sensor with model PT100 offers precise temperature measurement for industrial applications. Featuring a 3 mm diameter and 300 mm long probe, this 2-wire sensor delivers accuracy class B and supports sensing temperatures from -50 °C up to a maximum of 600 °C.

The sensor is a sheathed resistance thermometer designed in accordance with IEC 751, incorporating a flexible, thin-walled stainless steel sheath. Low-ohm copper internal conducting wires, embedded in compressed, fire-resistant magnesium oxide, ensure enhanced vibration resistance and durability for demanding environments.

Its connection lead consists of a 2.5 meter silicon cable capable of withstanding temperatures between -50 °C and +180 °C, enabling flexible and reliable installation. This RTD sensor is ideal for chemical plants, power plants, pipelines, engine building, and testing benches where precision and problem-free replacement are essential.

The sensor provides rapid response times with an approximate response time of 41 seconds and offers the reliability required for critical temperature monitoring. Sheathed resistance thermometer compliant with IEC 751 standards.

Flexible stainless steel sheath with low-ohm copper internal wires embedded in fire-resistant magnesium oxide. Designed for vibration resistance and rapid response time of 41 seconds. Connection lead of 2.5 m silicon cable, temperature range from -50 °C to +180 °C.

Resistance thermometer suitable for chemical plants, power plants, pipelines, and engine building applications. Minimum sensing temperature of -50 °C and maximum up to 600 °C. 2-wire circuit design with cable termination.

Manufactured in Germany to ensure quality and durability.

This Jumo PT100 RTD Sensor is a reliable choice for industrial, laboratory, and automation control applications where accurate temperature sensing is critical. Explore related RTD Sensors and temperature measurement devices on EnvMart for comprehensive solutions.
