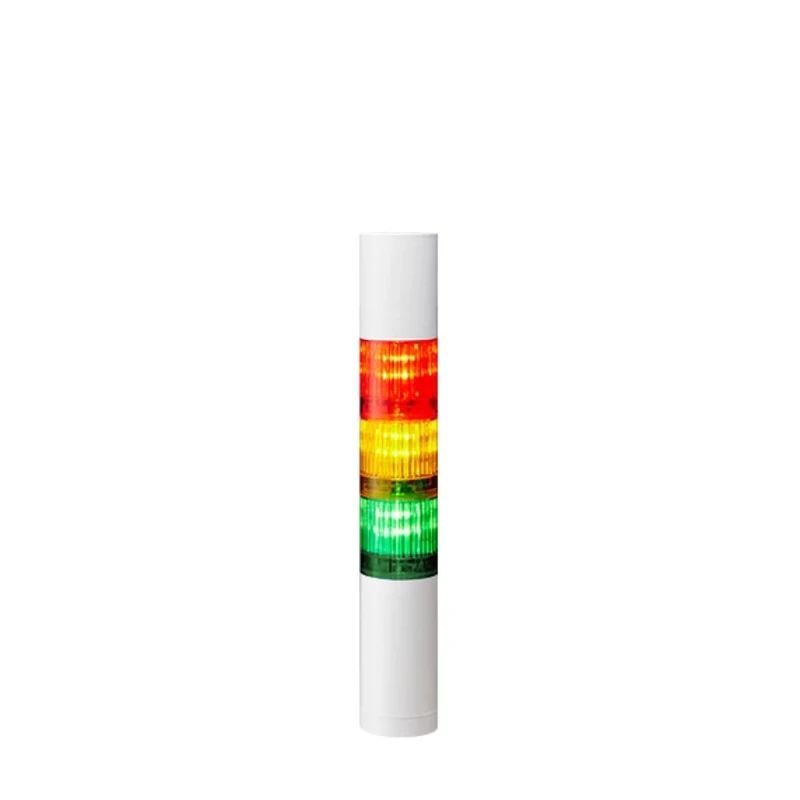

Patlite LR4 Series Signal Tower Buzzer with 3 LED Light Elements 24V DC Direct Mount LR4-302WJBW-RYG
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Patlite |
| Height | 253.5mm |
| Model | LR4-302WJBW-RYG |
| IP Rating | IP65 |
| Mount Type | Direct Mount |
| Bulb Type | LED |
| Series | LR4 |
| Maximum Operating Temperature | 50°C |
| Current Type | DC |
| Current consumption | 0.045, 0.3, 250A |
| Minimum Operating Temperature | -20°C |
| Base Diameter | 40mm |
| Standards/Approvals | RoHS (EN 50581), EMC (EN 61000-6-4,EN 61000-6-2), FCC Part 15 Subpart B Class A, CSA-C22.2 No. 14, UL 508, KC (KN 61000-6-4,KN 61000-6-2), UL Component (File No.E215660) |
| Maximum Supply Voltage | 24V dc |
| Housing Colour | Off-White |
| Light Effect | Steady, Flashing |
| Minimum Sound Level | 85dB |
| Sounder Type | Buzzer |
| Maximum Sound Level | 85 |
| Number of Light Elements | 3 |
| Connection Cable Length | 1.3m |
| Four mounting options | Direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (Off-white only) |
Key Features
- Features a buzzer sounder producing up to 85dB sound at 1 meter.
- Includes three LED light elements delivering bright, even illumination.
- Designed for harsh environments with IP65 rated protection for dust and water.
- Modular "Twist and Lock" system allows easy customization and reconfiguration.
- Compact size with 253.5mm height and 40mm base diameter.
- Operates reliably between -20°C and 50°C operating temperature range.
- Equipped with a 1.3 meter connection cable for flexible installation.
- Complies with multiple international standards including RoHS and UL 508.
Product Description
The Patlite LR4-302WJBW-RYG is a high-performance Signal Tower Buzzer featuring three LED light elements and a buzzer sounder designed for industrial automation and signaling applications. Operating on 24V DC, this unit provides both steady and flashing light effects to ensure clear visual indication.
This LR4 series model offers a sound level of 85dB, produced by a completely enclosed sound module engineered for strong omni-directional output while maintaining robust dust and water resistance with an IP65 rating. The unit's off-white housing is built for durability in harsh environments.
The compact tower has a height of 253.5mm and a base diameter of 40mm, making it suitable for direct mounting installations. Its 1.3 meter connection cable ensures adequate reach for connection to control panels or machines.
Its versatile modular "Twist and Lock" design enables quick changing or reordering of LED and buzzer modules on-site without complex disassembly. This makes the LR4-302WJBW-RYG adaptable for various signaling needs and operational requirements in industrial, manufacturing, and automation contexts.
Certified to meet global safety and EMC standards including RoHS, EMC, FCC, CSA, UL 508, and KC, this signal tower is engineered for reliability and compliance across multiple sectors. Ideal for machinery status warning, safety alert signaling, and process monitoring implementations.
Features a buzzer sounder producing up to 85dB sound at 1 meter. Includes three LED light elements delivering bright, even illumination. Designed for harsh environments with IP65 rated protection for dust and water. Modular "Twist and Lock" system allows easy customization and reconfiguration.
Compact size with 253.5mm height and 40mm base diameter. Operates reliably between -20°C and 50°C operating temperature range. Equipped with a 1.3 meter connection cable for flexible installation. Complies with multiple international standards including RoHS and UL 508.
This Patlite signal tower is widely used in industrial automation, manufacturing plants, HVAC systems, material handling, and laboratory instrumentation for reliable visual and audible signaling. Its rugged construction and certification profile make it a dependable choice for demanding industrial environments.
Discover more high-quality Signal Towers and automation control gear in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The buzzer sounder produces a sound level of up to 85dB at a distance of 1 meter.
This signal tower has a height of 253.5mm and a base diameter of 40mm.
It includes three LED light elements that provide bright and even illumination.
The LR4-302WJBW-RYG operates reliably between -20°C and 50°C.
It has an IP65 rating, indicating protection against dust and water.
This unit is designed for direct mounting, with additional options for pole mounting using various brackets.
It offers both steady and flashing light effects for clear visual indication.
The signal tower complies with multiple international standards including RoHS, UL 508, and FCC Part 15.
It is equipped with a 1.3 meter connection cable for flexible installation.
It is designed for use in harsh environments, suitable for industrial automation and signaling applications.
The maximum supply voltage for the LR4-302WJBW-RYG is 24V DC.
The housing color of this model is off-white, which is built for durability in industrial settings.
