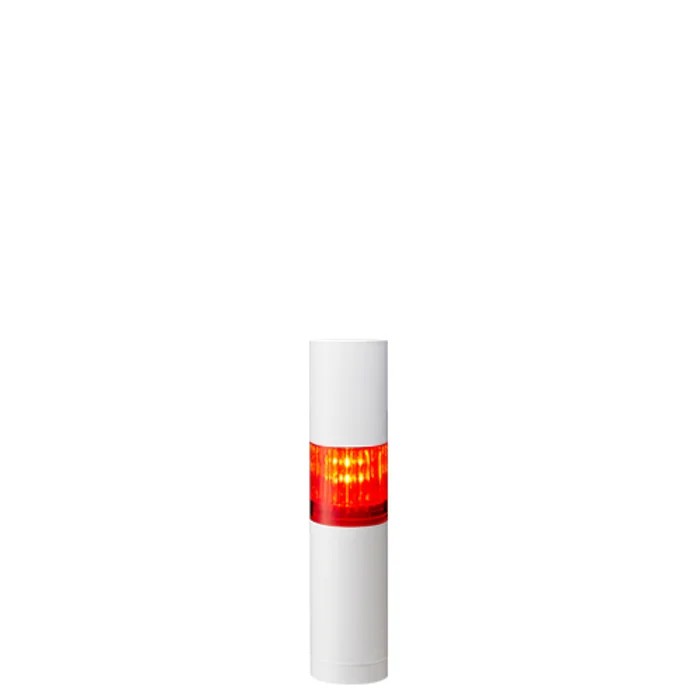

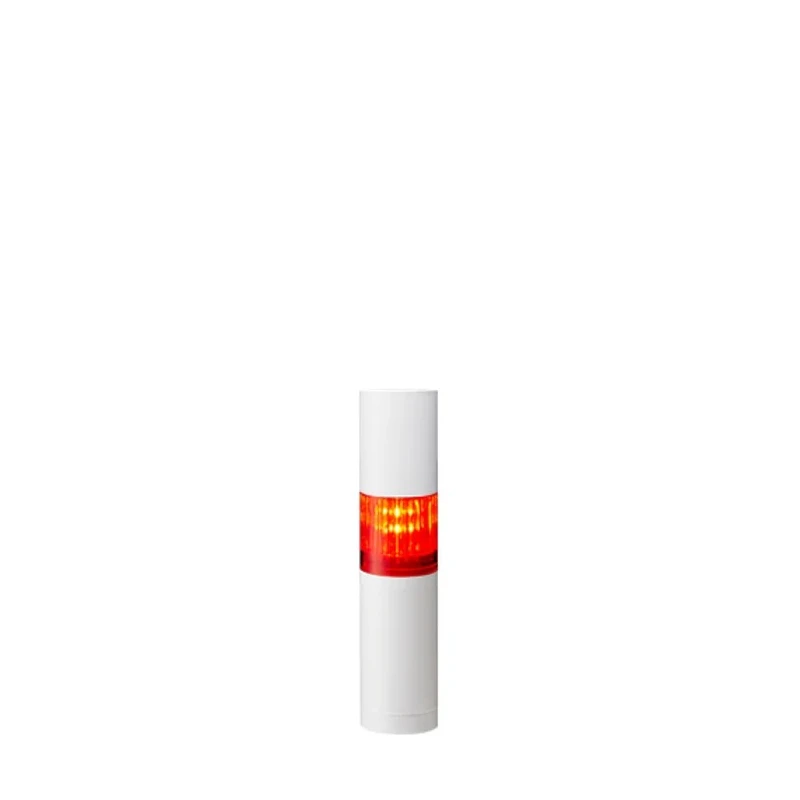

Patlite LR4 Series Signal Tower Buzzer with Amber, Blue, Clear, Green, Red, White LED Lights 24V DC Direct LR4-102WJBW-R

Patlite LR4-102WJBW-R is an advanced signal tower buzzer designed for industrial, manufacturing, automation, and electrical applications requiring clear visual and audible alerts. This model features a single LED light element capable of displaying six distinct lens colors: amber, blue, clear, green, red, and white, to accommodate diverse signaling needs.

The unit operates at 24V DC and is equipped with a cable terminal connection for easy installation. It offers both flashing and steady light effects combined with a buzzer sounder to effectively alert operators, ensuring optimal safety and communication on factory floors or automated processes.

Housed in a durable off-white enclosure with an IP65 rating, it resists water and dust ingress, enabling reliable performance in harsh or outdoor industrial environments. The product’s compact dimensions of 173.5 mm height and 40 mm base diameter make it suitable for various mounting configurations, specifically direct mount in this version.

This signal tower buzzer supports a wide operating temperature range from -20°C to 50°C and generates a sound level of 90 dB measured at 1 meter distance, with a maximum sound output rated at 85 dB, making it audible in busy industrial settings.

The product complies with extensive international standards including CSA-C22.2 No. 14, EMC Directive EN 61000-6-4/EN 61000-6-2, FCC Part 15 Class A, Korean KC standards, RoHS Directive EN 50581, UL 508, and UL Recognized Component File No. E215660, ensuring high safety and electromagnetic compatibility.

Included is a 1.3-meter long connection cable for flexible installation. The modular design of the LR4 series allows easy field customization and twist-locking of LED and sound modules for tailored signaling solutions.

Ideal for diverse industrial environments such as factory automation, process control, and machine status indication, the Patlite LR4-102WJBW-R enhances operational safety and communication efficiency.

Explore more products in our Signal Tower category at EnvMart for comprehensive industrial automation solutions. Features one light element with multifaceted amber, blue, clear, green, red, and white LEDs. Operates on 24V DC with cable terminal connection.

Provides flashing and steady light effects with buzzer sounder type. Rugged off-white housing rated IP65 for dust and water protection. Suitable for harsh environments with operating temperatures from -20°C to 50°C. Includes a direct mount type with 1.3-meter connection cable length.

Complies with multiple safety and EMC standards including CSA, UL, FCC, and RoHS. Sound level rated at 90 dB at 1 meter with maximum sound level of 85 dB. Compact design with 173.5 mm height and 40 mm base diameter. Manufactured in Japan ensuring quality and reliability.
