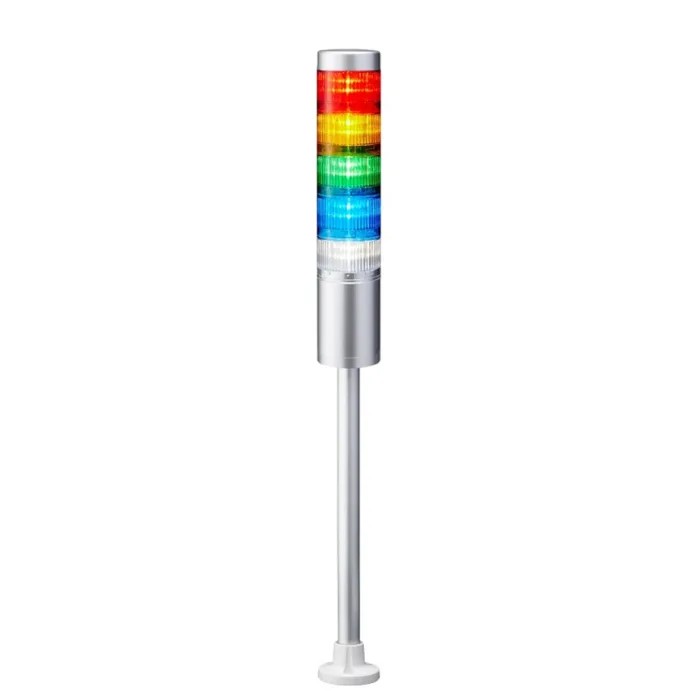

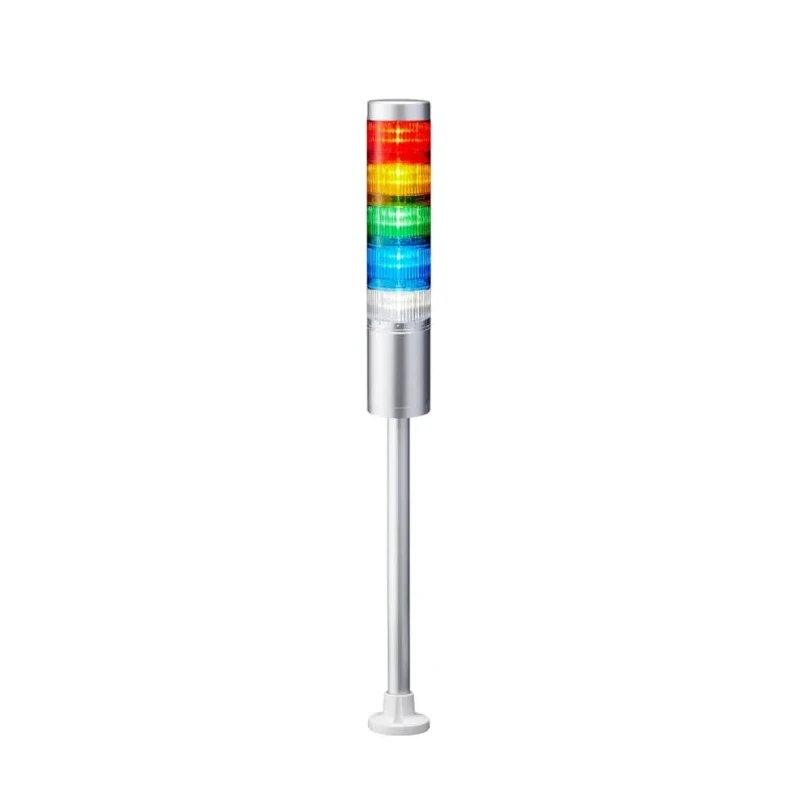

Patlite LR6 Series Signal Tower Buzzer 24V DC 5 Lights White, Amber, Blue, Clear, Green, Red Pole Mount LR6-502PJNU-RYGBC

Free Delivery in India | Lowest Global Shipping Charges

Patlite LR6 Series Signal Tower Buzzer 24V DC 5 Lights White, Amber, Blue, Clear, Green, Red Pole Mount LR6-502PJNU-RYGBC

Name: Patlite LR6 Series Signal Tower Buzzer 24V DC 5 Lights White, Amber, Blue, Clear, Green, Red Pole Mount LR6-502PJNU-RYGBC
Brand: PATLITE
SKU: 150211
Price: 369.18 USD
Availability: InStock



Category Signal Tower Brand PATLITE Condition New

Specifications

Country of Origin	Japan
Brand	Patlite
Height	589mm
Model	LR6-502PJNU-RYGBC
IP Rating	IP65
Mount Type	Pole Mount
Bulb Type	LED
Series	LR6
Maximum Operating Temperature	50°C
Current Type	DC
Current consumption	45mA
Minimum Operating Temperature	-20°C
Base Diameter	60mm
Terminal type	Terminal Block
Lens Colour	White, Amber, Blue, Clear, Green, Red
Standards/Approvals	UL Recognised Component (File No.E215660), UL 508, RoHS Directive (EN 50581), KC (KN 61000-6-4,KN 61000-6-2), FCC Part 15 Subpart B Class A, EMC Directive (EN 61000-6-4,EN 61000-6-2), CSA-C22.2 No. 14
Maximum Supply Voltage	24V
Housing Colour	Silver
Light Effect	Steady
Sounder Type	Buzzer
Sound Level at 1m	88dB
Number of Light Elements	5
Connection Cable Length	3m

Key Features

Equipped with a buzzer sounder type for audible alarms.
Mount type is pole mount with a circular bracket and cable.
Modular twist and lock system allows easy customization and reconfiguration of LED and sound modules.
High visibility steady light effect with redesigned lens for bright and even illumination.
Enclosed sound module ensures water and dust protection with loud omnidirectional sound.
Rated IP65 for protection against water and dust ingress.
Designed to operate between -20°C and 50°C temperature range.
Compact size with 589mm height and 60mm base diameter.

Product Description

Patlite LR6-502PJNU-RYGBC is a high-performance signal tower buzzer system designed for industrial and automation signalling applications. Featuring five LEDs with colors white, amber, blue, clear, green, and red, this model offers a modular "twist and lock" design allowing quick customization and module replacement for versatile signalling requirements. Operating at 24V DC, the unit is pole mounted with a circular bracket and comes with a connection cable length of 3 meters.

The steady light effect employs redesigned lenses and improved module construction to provide a bright and uniform light output suitable for visibility up to long distances, ideal for manufacturing, HVAC, water treatment, and industrial safety signalling environments. The integrated buzzer produces an omnidirectional loud sound level of 88 dB measured at 1 meter, enclosed in a water and dust-resistant chassis rated IP65, ensuring durability in harsh conditions.

Engineered to operate reliably in extreme temperature ranges from -20°C up to 50°C, this signal tower has dimensions of 589 mm in height with a 60 mm base diameter. It includes a terminal block type connection and consumes just 45mA current, making it efficient for continuous operation.

The Patlite LR6-502PJNU-RYGBC complies with multiple international standards including UL Recognised Component (File No.E215660), UL 508, RoHS Directive, KC standards, FCC Part 15 Subpart B Class A, EMC Directive, and CSA-C22.2 No. 14, ensuring safety, quality, and environmental compliance. Manufactured in Japan, it is a reliable choice for comprehensive signalling needs in industrial automation and control systems.

Equipped with buzzer sounder and multicolor LED lights. Modular twist and lock design for easy service and customization. IP65 rated enclosure for high resistance to water and dust. Compliant with multiple international safety and EMS standards.

Designed for continuous operation in harsh industrial environments. Highly visible steady light output with improved lens design. Compact pole mount configuration with extended cable length. Suitable for use in manufacturing, laboratory, construction, and HVAC signalling.

This product is categorized under Signal Towers, a critical component in industrial automation signalling. Discover more quality Signal Towers and related automation products on EnvMart for enhanced industrial safety and communication solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating temperature for this model is 50°C.

This unit has a height of 589 mm and a base diameter of 60 mm.

The buzzer produces a sound level of 88 dB when measured at 1 meter.

The signal tower has an IP rating of IP65, indicating it is protected against water and dust ingress.

This model is designed for pole mounting and includes a circular bracket for installation.

The current consumption of this unit is 45mA.

The LED lights are available in five colors: white, amber, blue, clear, green, and red.

The connection cable length is 3 meters.

The minimum operating temperature for this model is -20°C.

This signal tower complies with multiple standards including UL Recognised Component, UL 508, RoHS Directive, KC standards, FCC Part 15, and CSA-C22.2 No. 14.

The light effect produced by this model is steady, designed for high visibility.

The maximum supply voltage for this unit is 24V DC.
