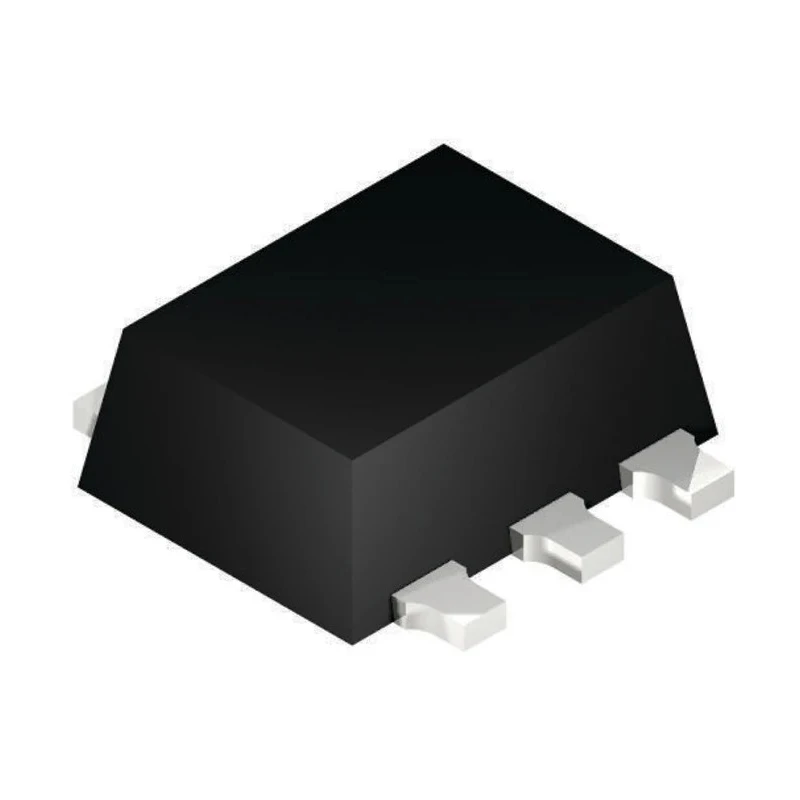

STMicroelectronics 2-Element EMI Filter and ESD Protector, 6-Pin SOT-323 Package USBUF02W6
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1mm |
| Length | 2.2mm |
| Model | USBUF02W6 |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | USBUFxxW6 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 6 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 7.95V |
| Diode Configuration | Complex Array |
| Minimum Breakdown Voltage Vbr | 7V |
Key Features
- Complex array diode configuration designed for USB port ESD protection.
- Minimum breakdown voltage of 7 volts for effective surge suppression.
- Compact surface mount SOT-323 package with 6 pins, measuring 2.2mm by 1.35mm by 1mm.
- Clamping voltage of 7.95 volts ensures efficient transient voltage containment.
- Wide operating temperature range from -40°C to 150°C for high reliability.
- Complies with UL94V-0, MIL STD 883E method 3015-7, and IEC 61000-4-2 Level 4 standards.
- Ideal for use in electronic circuits requiring EMI filtering and ESD protection.
Product Description
STMicroelectronics USBUF02W6 is a 2-element EMI filter and ESD protector designed specifically for USB port protection against transient voltage surges and electrostatic discharge. It features a complex diode array configuration that efficiently suppresses interference and transient events to protect sensitive electronic components.
This device comes in a compact 6-pin SOT-323 surface mount package with precise dimensions measuring 2.2mm in length, 1.35mm in width, and 1mm in height, making it suitable for space-constrained circuit boards. It provides a minimum breakdown voltage of 7 volts and a clamping voltage of 7.95 volts to ensure reliable voltage suppression.
The USBUF02W6 supports operating temperatures from -40°C up to 150°C, ensuring stable performance in various industrial and commercial environments. It meets stringent standards including UL94V-0 flammability rating, MIL STD 883E method 3015-7 for military reliability, and IEC 61000-4-2 Level 4 for electrostatic discharge protection.
This EMI filter and ESD protector is ideal for use in electronic equipment requiring enhanced protection against electromagnetic interference and electrostatic discharge, particularly in communications, computing, and industrial applications.
Complex diode array for ESD protection. 7V minimum breakdown voltage. Compact 6-pin surface mount package (SOT-323). 7.95V clamping voltage. Wide temperature range from -40°C to 150°C. Compliant with UL94V-0, MIL STD 883E and IEC 61000-4-2 standards.
Suitable for industrial and commercial EMI suppression applications.
This product is part of the USBUFxxW6 series by STMicroelectronics, trusted in electronics components for enhanced protection and performance. Browse EnvMart for more reliable EMI filters and ESD protectors from leading brands.
Explore more products in our EMI Filters & Protection category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of the USBUF02W6 is 7 volts, which is designed for effective surge suppression.
The clamping voltage of the USBUF02W6 is 7.95 volts, ensuring efficient transient voltage containment.
This model measures 2.2mm in length, 1.35mm in width, and 1mm in height, making it suitable for space-constrained applications.
The USBUF02W6 operates within a wide temperature range from -40°C to 150°C, suitable for various environments.
This EMI filter and ESD protector features a total of 6 pins in its SOT-323 package.
The USBUF02W6 is designed for surface mounting, making it easy to integrate into circuit boards.
It complies with UL94V-0, MIL STD 883E method 3015-7, and IEC 61000-4-2 Level 4 standards for reliability and protection.
The USBUF02W6 features a complex array configuration with 2 elements per chip for enhanced ESD protection.
This device is ideal for use in electronic equipment requiring EMI filtering and ESD protection, particularly in communications, computing, and industrial applications.
The USBUF02W6 is manufactured in India.
It uses a complex diode array configuration designed specifically for ESD protection.
This product is part of the USBUFxxW6 series by STMicroelectronics, which includes various EMI filters and ESD protectors.
