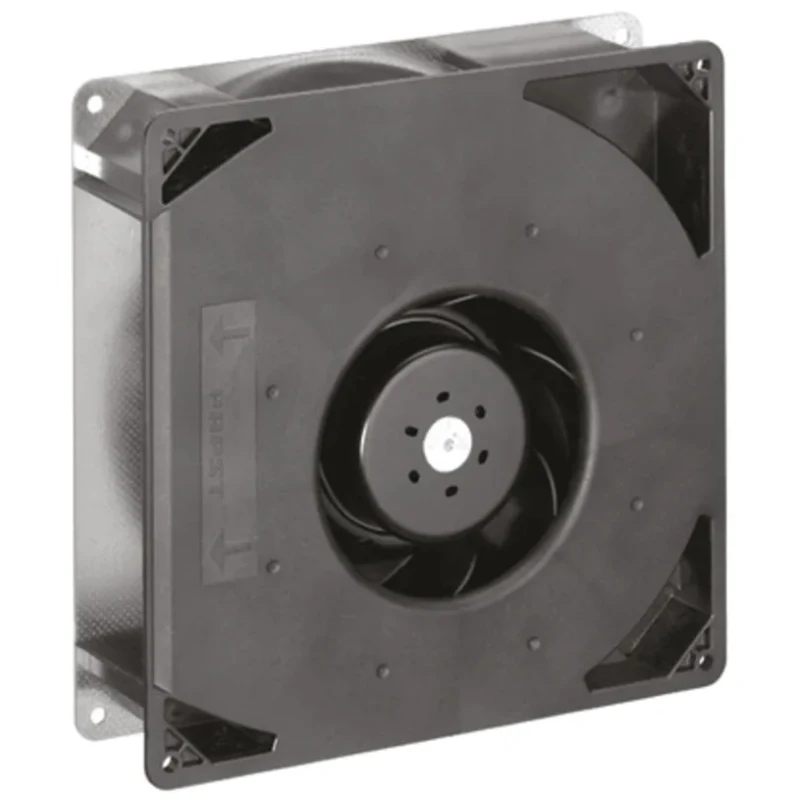

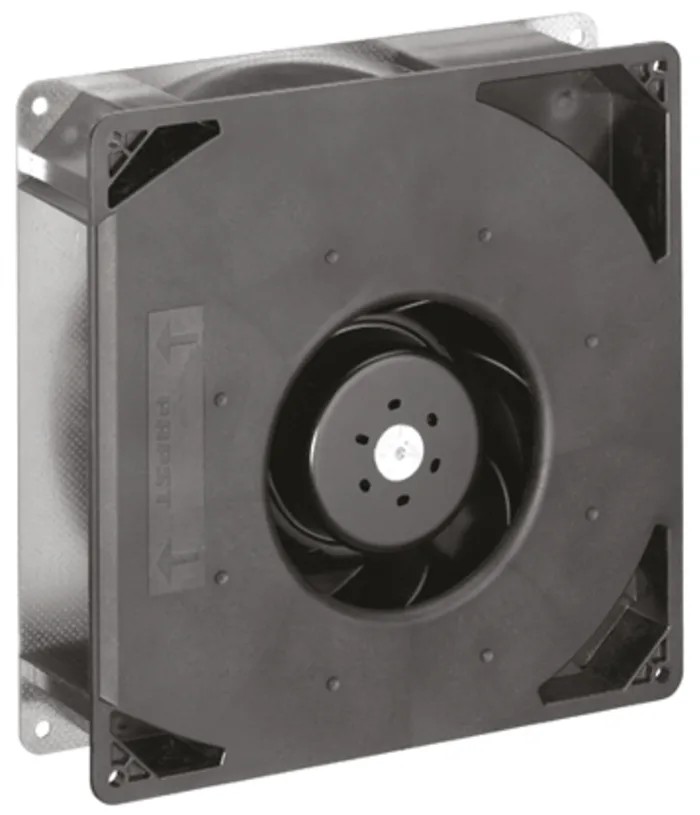

ebm-papst RG 160 N Series Centrifugal Fan 24V DC, 209 m³/h, 2850 RPM, Ball Bearing, IP54, 220 x 220 x 56 mm RG160-28/14N

Free Delivery in India | Lowest Global Shipping Charges

ebm-papst RG 160 N Series Centrifugal Fan 24V DC, 209 m³/h, 2850 RPM, Ball Bearing, IP54, 220 x 220 x 56 mm RG160-28/14N

Name: ebm-papst RG 160 N Series Centrifugal Fan 24V DC, 209 m³/h, 2850 RPM, Ball Bearing, IP54, 220 x 220 x 56 mm RG160-28/14N
Brand: ebm-papst
SKU: 149442
Price: 143.5 USD
Availability: InStock



Category Centrifugal Fan Brand ebm-papst Condition New

Specifications

Country of Origin	Hungary
Brand	ebm-papst
Blower Type	Centrifugal
Height	220mm
Fan Speed	2850rpm
Air Flow	209m³/h
Model	RG160-28/14N
Depth	56mm
IP Rating	IP54
Noise Level	66dB
Width	220mm
Series	RG 160 N
Terminal type	Wire
Supply Voltage	24V dc
Bearing Type	Ball
Standards/Approvals	RoHS
AC or DC Operation	DC
Commutation Type	Electronic
Mounting Hole Diameter	5.3 mm
Sensor Output Type	PWM

Key Features

Operates at 2850 RPM ensuring efficient air movement.
Features centrifugal blower design with backwards-curved impeller.
Constructed with fibreglass-reinforced plastic housing and impeller for durability.
Includes PWM sensor output for precise speed control.
Offers high static pressure and locked rotor protection.
Designed for DC operation with reverse polarity and blocked rotor protection.
Compact dimensions of 220 mm x 220 mm x 56 mm for versatile installation.
Suitable for HVAC, electronics cooling, automotive, railway, and medical applications.

Product Description

ebm-papst RG160-28/14N Centrifugal Fan operates at 24V DC, delivering an airflow of 209 m³/h at 2850 RPM. This fan features a centrifugal blower with a backwards-curved fiberglass-reinforced plastic impeller and a durable fibreglass-reinforced plastic scroll housing. It is equipped with ball bearings and provides IP54 ingress protection. The fan includes a PWM sensor output, enabling precise fan speed control via electronic commutation.

The compact fan measures 220 mm in length, 220 mm in width, and 56 mm in depth, making it suitable for space-constrained installations. The design includes a 5.3 mm mounting hole diameter and wire terminal type connections with single strands of 22AWG TR 64 leads. Its construction offers locked rotor protection and safeguards against reverse polarity and blocked rotor conditions.

This centrifugal fan excels in applications requiring high static pressure and reliable air performance. Common uses include central air conditioning units, building ventilation, electronics cooling, automotive systems, railway equipment, medical treatment devices, household ventilation, refrigeration systems, and other industrial and commercial HVAC environments.

Operates efficiently at 2850 RPM with a ball bearing type for enhanced durability. Features electronic commutation technology for silent operation. Supports high temperature, low power use with reliable locked rotor protection.

Provides airflow at right angles to intake with centrifugal exhaust design. Meets RoHS standards and is RoHS compliant with IP54 rating for protection against dust and water splashes.

Choose the ebm-papst RG160-28/14N for advanced centrifugal fan performance in demanding industrial, HVAC, and commercial applications. Explore more quality Centrifugal Fans in the Industrial Coolers Blowers & Fans category at EnvMart.
