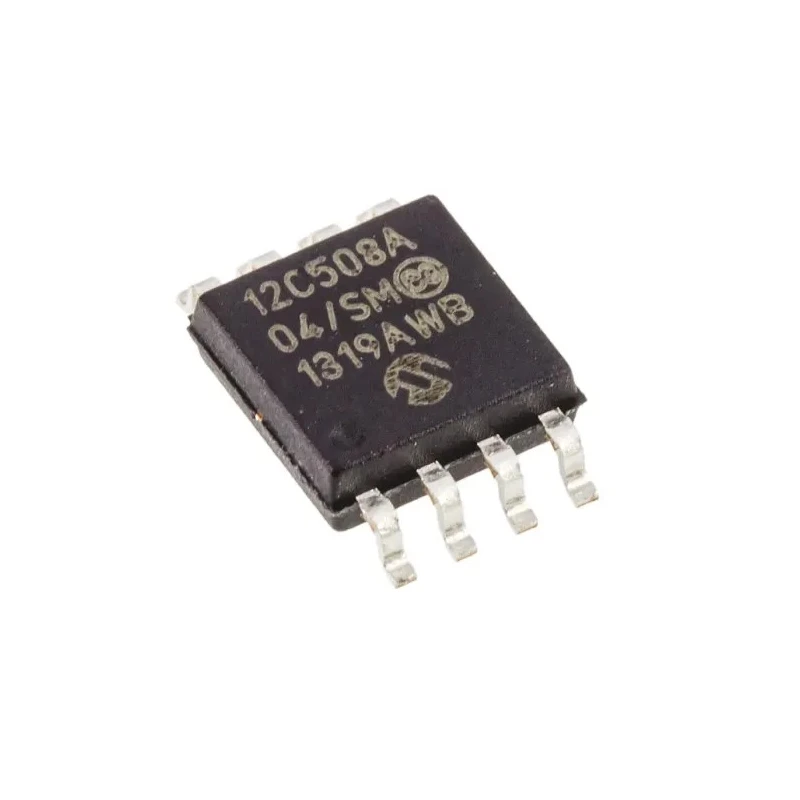

Microchip 8-bit PIC12C Microcontroller 4 MHz 0.75kB EPROM 8-Pin SOIC PIC12C508A-04/SM
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.78mm |
| Length | 5.33mm |
| Model | PIC12C508A-04/SM |
| Width | 5.41mm |
| Mount Type | Surface |
| Series | PIC12C |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Ram size | 25bit |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 700mW |
| Minimum Supply Voltage | 3V |
| Device Core | PIC |
| Program Memory Size | 0.75kB |
| Maximum Clock Frequency | 4MHz |
| Number of Programmable I/Os | 5 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 0 bit |
| Program Memory Type | EPROM |
| DACs | 0 bit |
Key Features
- The microcontroller features a PIC core with a 4 MHz maximum clock frequency.
- It includes 0.75kB of EPROM program memory and 25 bit RAM size.
- The device supports 5 programmable I/O pins with 25mA source/sink capability.
- Operates between 3V minimum and 5.5V maximum supply voltage with a maximum power dissipation of 700mW.
- Compact 8-pin SOIC surface-mount package with dimensions of 5.33mm length, 5.41mm width, and 1.78mm height.
- Wide operating temperature range from 0°C to 70°C suitable for commercial applications.
- The device includes one timer and follows the RISC instruction set architecture.
- It is RoHS compliant and meets ISO 9001 automotive standard quality requirements.
Product Description
Microchip PIC12C508A-04/SM is a compact and powerful 8-bit microcontroller designed with PIC architecture, featuring a maximum clock frequency of 4 MHz and 0.75kB EPROM memory. It is housed in an 8-pin SOIC package suitable for surface mounting in modern electronic designs.
This microcontroller offers 5 programmable I/O pins capable of 25mA source/sink current, ideal for controlling peripherals in embedded systems. It operates on a supply voltage range of 3 to 5.5 volts, with low power consumption limited to a maximum dissipation of 700 milliwatts, ensuring efficiency in battery-powered applications.
Its architecture includes a RISC instruction set optimized for fast instruction execution with only 33 single-word instructions, making programming straightforward and efficient. The device incorporates one timer and 25-bit RAM for small-scale data management requirements.
The physical dimensions of the SOIC package are 5.33mm in length, 5.41mm in width, and 1.78mm in height, providing a small footprint for compact assembly on PCBs. Rated for operation in temperature ranges from 0°C to 70°C, it is well suited for commercial and industrial use cases.
The PIC12C508A-04/SM complies with RoHS environmental standards and meets the ISO 9001 automotive standard, ensuring quality and reliability in critical applications. It is commonly used in industrial controls, automotive electronics, instrumentation, and small-scale embedded projects requiring reliable microcontroller performance.
The microcontroller architecture allows fast instruction execution to enhance processing efficiency. Surface mount SOIC packaging supports compact PCBs and modern assembly methods. Robust device operating temperature and voltage ranges enable broad application scenarios.
RoHS compliance ensures adherence to environmental regulations. ISO 9001 certification underlines manufacturing quality. Explore the wide range of Microchip Microcontrollers available in the EnvMart platform for industrial, commercial, and embedded electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 4 MHz.
It features 0.75kB of EPROM program memory.
The package dimensions are 5.33mm in length, 5.41mm in width, and 1.78mm in height.
This model has 5 programmable I/O pins, each capable of 25mA source/sink current.
It operates within a supply voltage range of 3V to 5.5V.
The maximum power dissipation is 700mW.
It can operate in temperatures ranging from 0°C to 70°C.
It follows the RISC instruction set architecture, optimized for fast instruction execution.
This microcontroller meets the ISO 9001 automotive standard quality requirements.
The RAM size is 25 bits.
It is designed for surface mounting (SOIC package).
Yes, it is RoHS compliant, ensuring adherence to environmental regulations.
