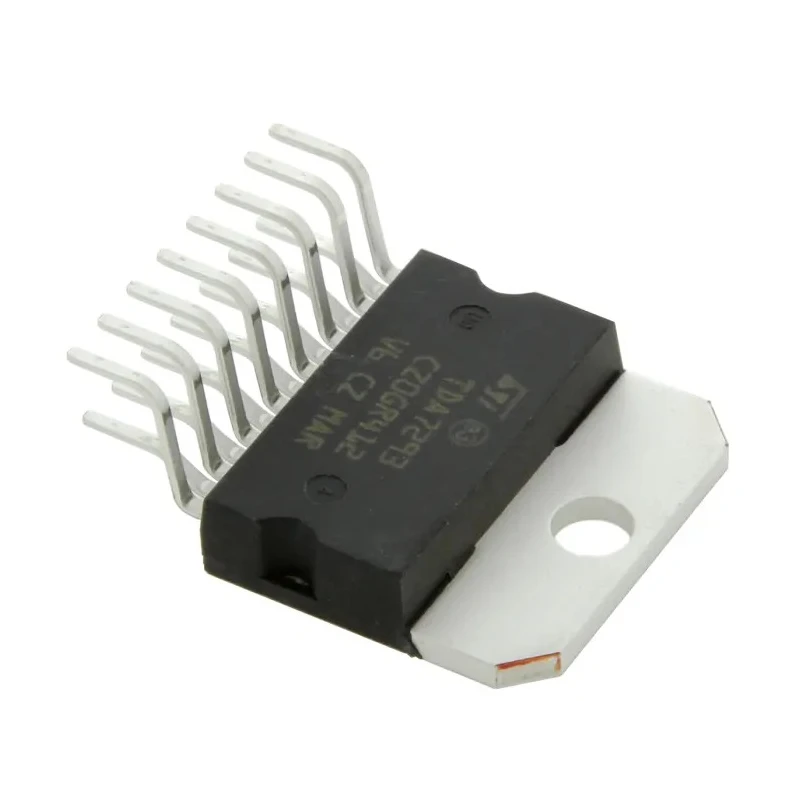

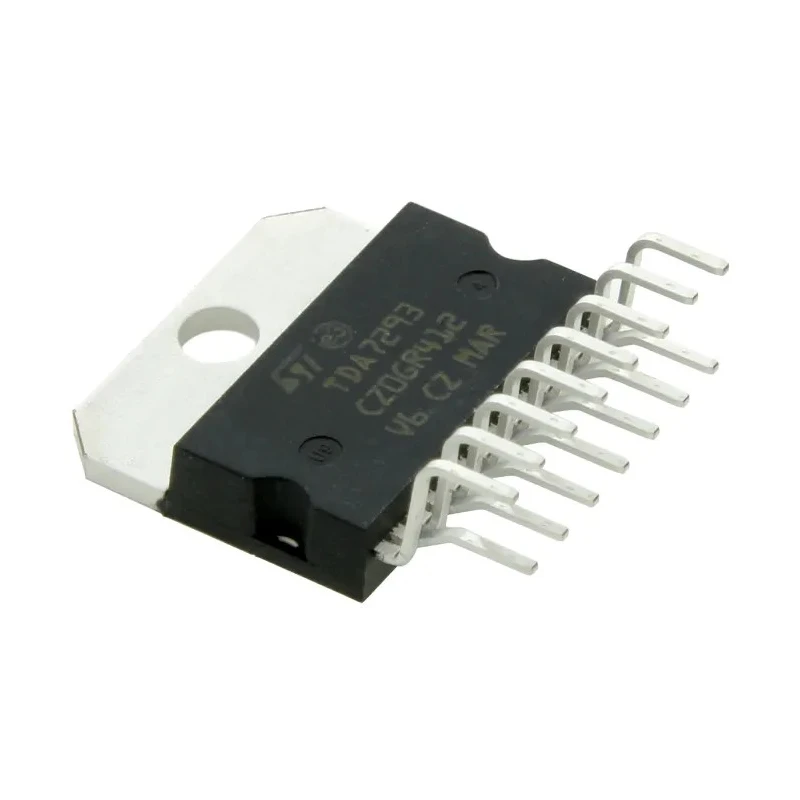

STMicroelectronics Audio Amplifier IC, 15-Pin Multiwatt Package, 100W Class A-B, Through Hole Mount TDA7293V

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Audio Amplifier IC, 15-Pin Multiwatt Package, 100W Class A-B, Through Hole Mount TDA7293V

Name: STMicroelectronics Audio Amplifier IC, 15-Pin Multiwatt Package, 100W Class A-B, Through Hole Mount TDA7293V
Brand: STMicroelectronics
SKU: 149344
Price: 12.61 USD
Availability: InStock



Category Audio Amplifier ICs Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	10.7mm
Length	19.6mm
Model	TDA7293V
Width	5mm
Output Power	100W
Mount Type	Through Hole
Series	TDA7293
Maximum Operating Temperature	70°C
Package Type	Multiwatt
Minimum Operating Temperature	0°C
Number Of Channels	1
Pin Count	15
Maximum Supply Voltage	50V
Minimum Supply Voltage	12V
Amplifier Type	Audio
Amplifier Class	Class A-B

Key Features

Supports mono, stereo and multi-channel audio solutions with wide output power range.
Operates with supply voltages from 12V minimum up to 50V maximum.
Designed for through hole mounting with 15-pin configuration for reliable assembly.
Compact size with dimensions of 19.6mm length, 10.7mm height, and 5mm width.
Operates within temperatures ranging from 0°C to 70°C ensuring dependable performance.
Class A-B amplifier type offers improved audio fidelity and efficiency.
Package type is Multiwatt, suitable for audio amplifier IC integration.
Automotive standard compliance is not applicable, intended for general electronic audio use.

Product Description

STMicroelectronics TDA7293V is a high-fidelity audio amplifier IC designed for robust audio applications. It comes in a 15-pin Multiwatt package optimized for through hole mounting. This IC offers a power output capacity of 100W, operating as a class A-B amplifier, suitable for driving speakers in diverse audio system setups.

This amplifier IC supports multiple channel arrangements including mono and stereo, offering flexibility in design. It operates over a wide supply voltage range from 12V to 50V, accommodating a variety of power sources. The compact Multiwatt package measures 19.6mm in length, 10.7mm in height, and 5mm in width, enabling efficient PCB space utilization.

Designed to function reliably in ambient temperatures from 0°C to 70°C, the TDA7293V ensures consistent audio performance under typical operating conditions. Although it does not meet specific automotive standards, it is widely suitable for professional audio equipment, consumer electronics, and amplification needs in HVAC and industrial audio setups.

This device is ideal for electronics manufacturers looking for a versatile, high-power audio amplifier component in their designs. The Multiwatt package facilitates easy insertion and soldering into printed circuit boards, making it a preferred choice for assembly and production efficiency.

Supports mono, stereo, and multi-channel audio configurations. Wide output power of up to 100W with high audio fidelity. Versatile supply voltage range from 12V to 50V. Through hole mount type for reliable PCB integration.

Compact package dimensions ensure space efficiency. Operating temperature range from 0°C to 70°C for stable use. Multiwatt package design for ease of assembly. Not automotive certified but suitable for general industrial use.

15 pins provide comprehensive circuit connectivity.

This product is a standard component for electronic and industrial audio amplification requirements featured in the STMicroelectronics portfolio. Designed for quality and durability to support enhanced audio system designs in a variety of industrial, laboratory, and consumer electronics applications.
