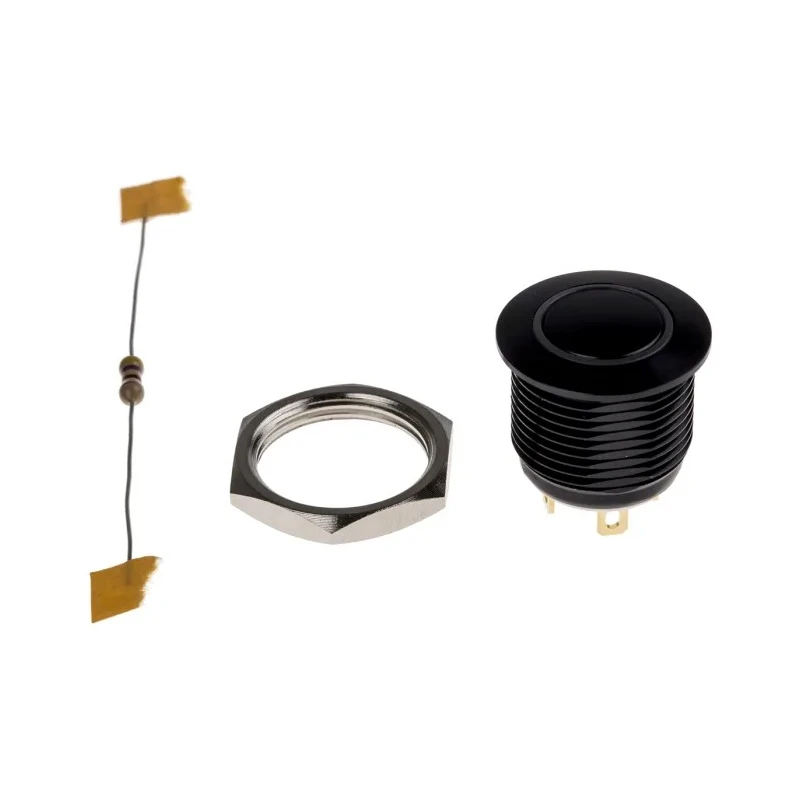

KNITTER-SWITCH Illuminated Vandal Proof Momentary Push Button Switch Panel Mount 16 mm Cutout SPST Green MAV16CBRE-6-JR-12V

KNITTER-SWITCH MAV16CBRE-6-JR-12V is an illuminated vandal proof push button switch designed for industrial and commercial applications requiring robust momentary switching. It is specifically built for panel mounting with a 16 mm cutout diameter, fitting seamlessly in control panels.

This single pole single throw (SPST) switch features a momentary on-off operation, ideal for precise user input in control, automation, and electrical circuits. The aluminium button paired with a black case offers durability, while the rounded actuator with ring shape lens style enhances the tactile experience.

The switch incorporates a green LED illumination powered by a 12V DC LED resistor, providing excellent visibility in diverse environments. Its IP67 rating ensures protection against dust ingress and water immersion, making it suitable for harsh industrial environments.

The switch supports contact currents up to 2A at 36V DC and 250V AC, making it versatile for various electrical load requirements. Terminals are solder lug type, ensuring reliable and secure electrical connections.

Operating temperature spans from -20°C minimum to a maximum of 120°C, accommodating a wide range of environmental conditions. The gold flash over silver contacts provide enhanced conductivity and longevity.

Features a durable aluminium button and black case ensuring robust construction. SPST switch configuration with momentary, on-off operation for precise control. Offers IP67 rated protection against dust and water ingress.

Operates reliably in temperatures from -20°C to 120°C. Equipped with green LED illumination powered by 12V DC LED resistor for visibility. Suitable for contact currents up to 2A with voltages up to 36V DC and 250V AC. Terminals use solder lug type for secure electrical connections.

Rounded actuator style with ring shape lens enhances user interface.

This switch is well suited for use in industrial automation, electrical control panels, manufacturing equipment, and other commercial applications requiring durable and visible momentary push button switches. It is compliant with UL 94 V-0 and UL 94 V-2 fire safety standards, enhancing safety in installation environments.
