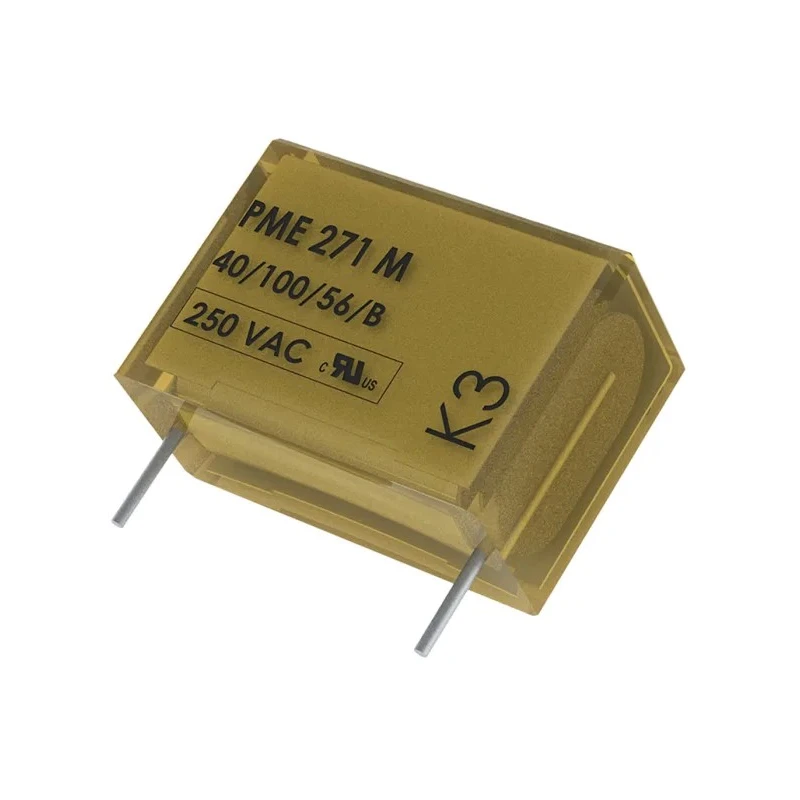

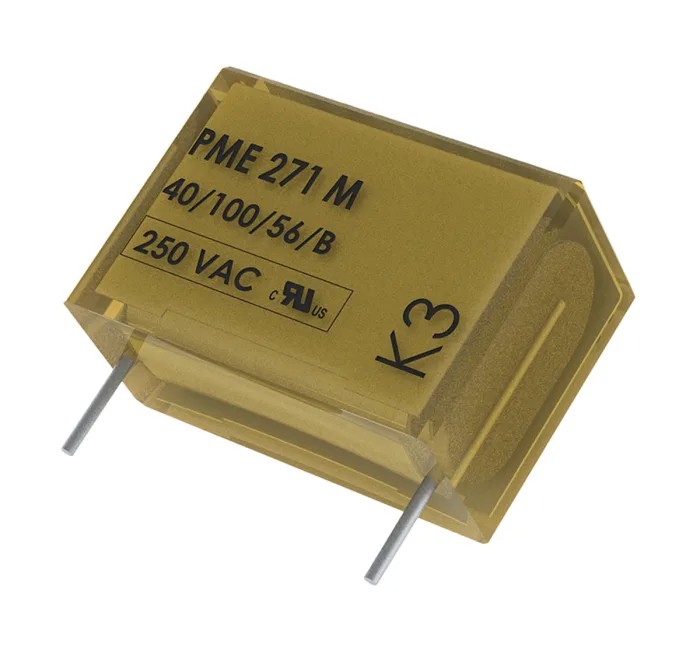

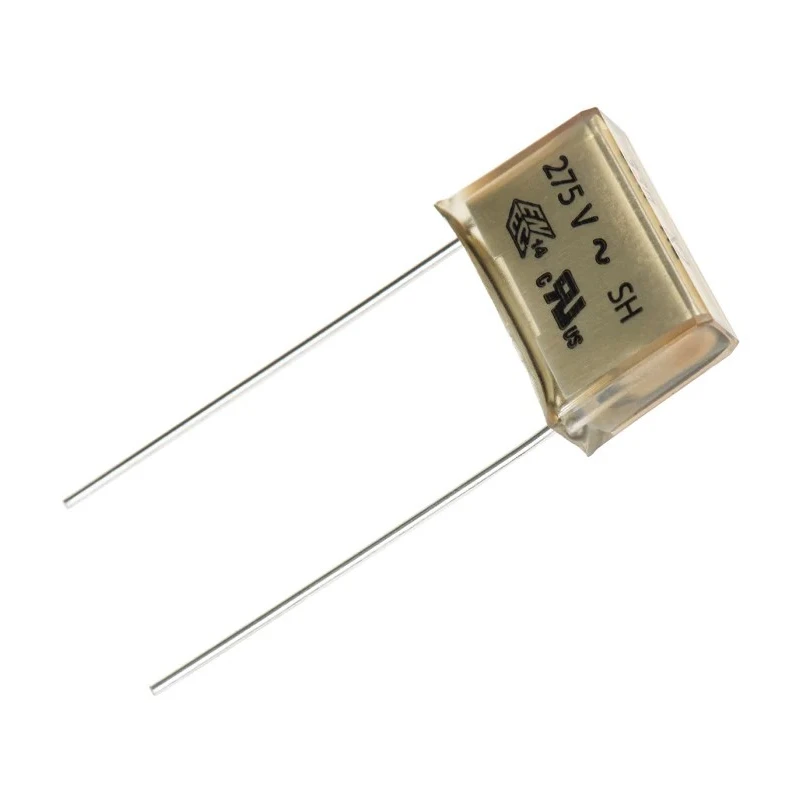

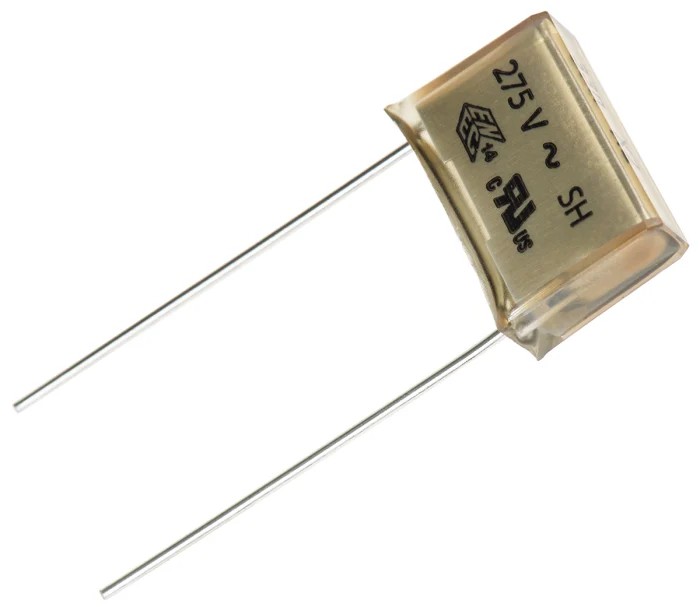

KEMET PME271 Metallised Paper Capacitor X2 Suppression Class 33nF 275V AC/DC Through Hole
Specifications
| Country of Origin | Finland |
|---|---|
| Brand | KEMET |
| Height | 12.5mm |
| Length | 18.5mm |
| Model | PME271 |
| Depth | 6mm |
| Mount Type | Through Hole |
| Series | PME271 |
| Maximum Operating Temperature | 110°C |
| Capacitance | 33nF |
| Standards/Approvals | EN, UL, CAN, IEC, CSA |
| Pin Count | 2 |
| Rated AC Voltage | 275V ac |
| Rated DC Voltage | 275V dc |
| Lead Pitch | 15.2mm |
| Lead Diameter | 0.8mm |
| Suppression Class | X2 |
Key Features
- Capacitance value of 33nF for accurate signal filtering and noise suppression.
- Rated AC and DC voltage of 275V ensuring robustness in operation.
- Through Hole mount type with 0.8 mm lead diameter and 15.2 mm lead pitch for secure PCB integration.
- Maximum operating temperature of 110°C suitable for demanding electrical environments.
- Constructed from metallised paper offering high flammability safety and excellent self-healing properties.
- Compact dimensions measuring 18.5 mm length, 12.5 mm height, and 6 mm depth.
- Complies with industry standards EN, UL, CAN, IEC, and CSA for assured quality.
- Suppression Class X2 for use in across-the-line applications with high transient voltage protection.
Product Description
KEMET PME271M533MR30 Metallised Paper Capacitor X2 Suppression Class, with capacitance of 33nF and rated voltage of 275V AC and DC, is a reliable component designed for suppression and filtering in electrical circuits.
This capacitor is a through-hole mount device featuring metallised paper construction, which provides the highest possible safety regarding active and passive flammability. It exhibits high dV/dt capability and excellent self-healing properties, thereby ensuring a long operational life even under frequent overvoltage conditions.
Its encapsulation meets UL94-0 standards, and the capacitor holds multiple approvals including EN132400, SEMKO, NEMKO, DEMKO, FIMKO, VDE, SEV, OVE, IMQ, and UL certifications, attesting to its high quality and compliance.
Key technical specifications include a capacitance of 33nF, a rated AC and DC voltage of 275V, a lead pitch of 15.2mm, and a maximum operating temperature of 110°C. The physical dimensions are 18.5mm in length, 12.5mm in height, and 6mm in depth, with a lead diameter of 0.8mm to ensure secure PCB mounting.
This capacitor is ideally suited for industrial, electronic component manufacturing, and electrical equipment applications where safety and durability are paramount. It is designed for connecting directly across mains supply in suppressor circuits but should not be used where capacitor failure could expose users to electric shock.
High safety and flammability resistance due to metallised paper construction. Excellent self-healing for extended service life under voltage stress. Wide industry-standard approvals including EN, UL, and IEC compliance. Compact through-hole design ensures ease of installation and robust connection.
Rated for operation up to 110°C in demanding electrical environments. Manufactured in Finland guaranteeing consistent quality and reliability. Set contains 1 Pc KEMET PME271M533MR30 Metallised Paper Capacitor X2 suppression class for industrial and electronic applications.
Explore our extensive category of Film Capacitors for diverse power and electronic component requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 33nF, designed for accurate signal filtering and noise suppression.
It has a rated AC and DC voltage of 275V, ensuring robustness in operation.
The capacitor measures 18.5 mm in length, 12.5 mm in height, and 6 mm in depth.
The maximum operating temperature for this capacitor is 110°C, making it suitable for demanding electrical environments.
The lead diameter is 0.8 mm, and the lead pitch is 15.2 mm, ensuring secure PCB integration.
It complies with industry standards including EN, UL, CAN, IEC, and CSA, ensuring quality and safety.
This capacitor has a suppression class of X2, suitable for use in across-the-line applications with high transient voltage protection.
It is a through-hole mount type, designed for easy installation on PCBs.
This capacitor is manufactured in Finland, ensuring consistent quality and reliability.
It is ideally suited for industrial, electronic component manufacturing, and electrical equipment applications where safety and durability are important.
