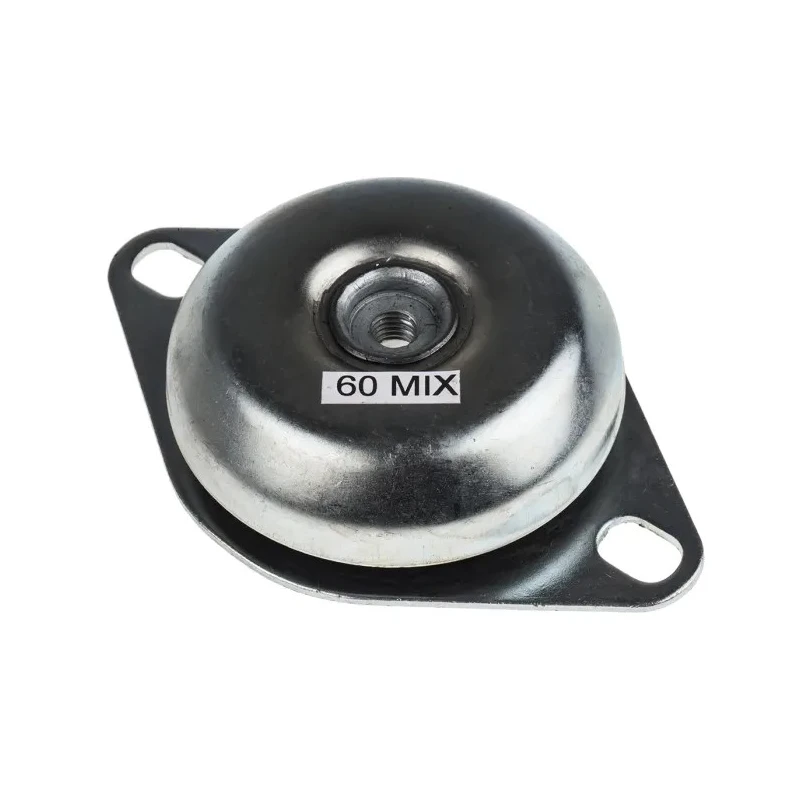

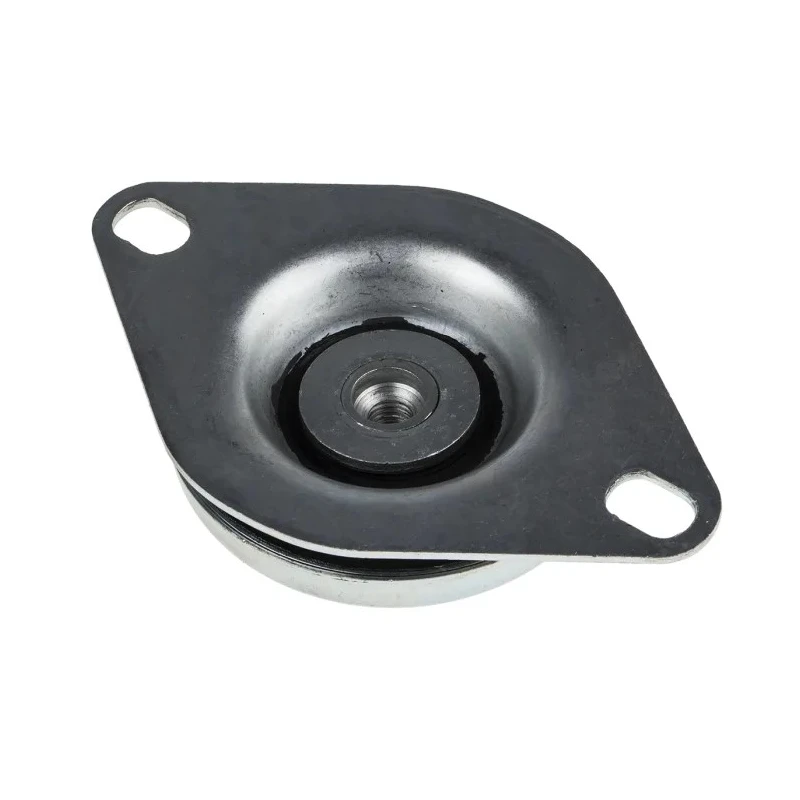

RS Pro Round M12 Anti-Vibration Pedestal Mount 172 mm Outside Diameter 450 kg Compression Load 38 mm Height 60 162-3221

RS Pro 162-3221 Round M12 Anti-Vibration Pedestal Mount is a highly effective mechanical component designed to reduce vibration and protect industrial equipment. Its pedestal mount design incorporates natural rubber and a captive flanged mount with a rubber element to support shear and compression vertical loads effectively.

This anti-vibration mount supports loads up to 450 kg with a compression deflection of 3.5 mm, offering superior vibration isolation and noise reduction compared to conventional spring-mounted alternatives. The dome-shaped design shields internal components from splashes and contamination, extending the product's service life.

The mount’s compact 38 mm overall height and 172 mm outside diameter make it suitable for tight installation spaces. The 2-hole flange with M12 thread size ensures secure and reliable attachment to machinery. The black foot color and round shape enhance both functionality and appearance.

Operating reliably in temperatures up to 100°C and featuring a shore hardness of 60 Shore A, this vibration mount is engineered for demanding industrial environments. Its bump and rebound feature further safeguards sensitive equipment during transportation and operation, minimizing potential damage.

Ideal for use in pumps, compressors, centrifugal fans, blowers, and other machinery requiring vibration isolation, it enhances machinery longevity and reduces maintenance needs. The RS PRO series is known for professional quality, making this mount a smart choice for industrial, manufacturing, HVAC, and mechanical applications.

Constructed with natural rubber material for enhanced durability and vibration dampening. Features a 60 Shore A hardness to balance flexibility and support. Designed with a 2-Hole Flange mount and M12 thread size for secure installation.

Compact height of 38 mm with an additional 3 mm foot height for stable positioning. Capable of continuous operation up to 100°C max temperature. The round foot shape and black foot color improve aesthetic and functional mounting.

Includes bump and rebound features to protect sensitive equipment during transit and operation. Complies with RoHS standards for safe and environmentally responsible usage. Explore more in the Industrial Machines & Instruments category with EnvMart’s extensive selection of Anti Vibration Mounts for professional and industrial use.
