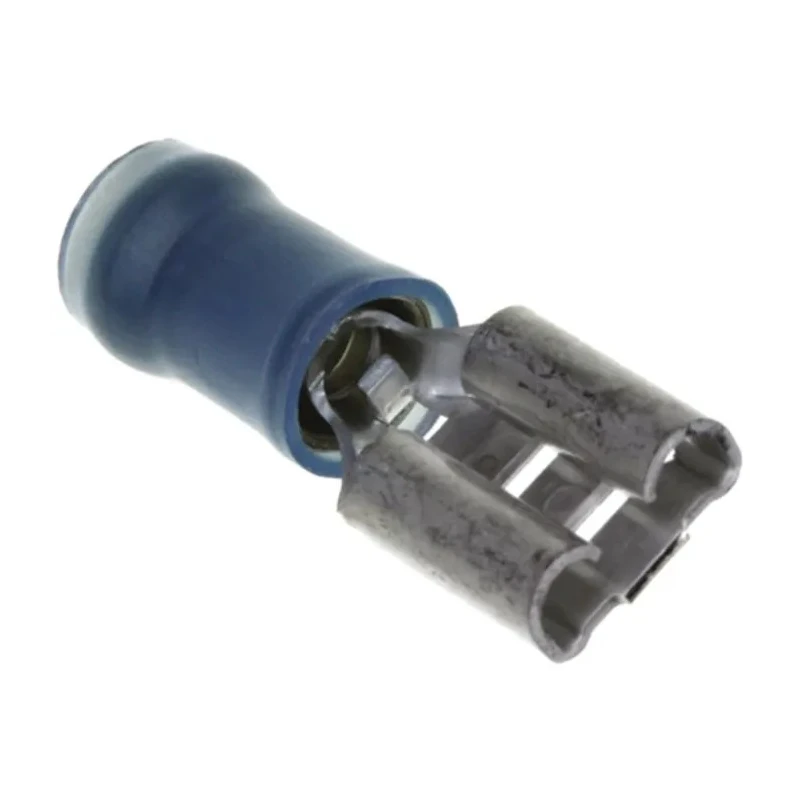

TE Connectivity PIDG FASTON .250 Blue Insulated Female Spade Connector, Crimp, 6.35 x 0.81 mm Tab Size, 16 AWG to 8-640905-1

TE Connectivity 8-640905-1 PIDG FASTON Blue Insulated Female Spade Connector is an engineered wire terminal designed for crimp terminations with wire sizes ranging from 16 AWG (1.3 mm²) to 14 AWG (2 mm²). This insulated spade connector features a high conductivity brass contact plated with tin to ensure consistent electrical performance and resistance to oxidation. The connector's tab measures 6.35 mm in width and 0.81 mm thickness, conforming to FASTON .250 standards.

The PIDG series connectors incorporate a copper sleeve and nylon insulation sleeve providing enhanced mechanical support to the wire insulation post-crimp. This design reduces wire fatigue by allowing bending without damaging the conductor or insulation. Serrations inside the barrel maximize the contact area and improve tensile strength for dependable long-term electrical and mechanical stability.

The blue nylon insulation sleeve is color-coded to allow easy identification of wire gauge compatibility during assembly and maintenance operations. The straight orientation of the terminal ensures compatibility with a wide range of connector housings and panel wiring systems.

These connectors are widely used in industrial, aerospace, automotive, control instrumentation, lighting assemblies, power supplies, panel boxes, and general wiring applications requiring high reliability and mechanical strength. The funnelled wire entrance facilitates fast and error-free wire insertion suitable for high-volume manufacturing environments.

This female Spade Connector features an insulated nylon sleeve in blue color for easy wire size identification. The contact is made of brass material with tin plating for reliable conductivity and corrosion resistance. The terminal has a tab width of 6.35 mm and thickness of 0.81 mm suitable for .250 FASTON tabs.

Its overall length measures 22.86 mm ensuring compact and secure connections. The PIDG design with copper and nylon sleeves provides improved insulation support and mechanical strain relief after crimping. Serrations inside the wire barrel enhance contact and tensile strength of the crimped connection.

The funnelled wire entry facilitates quick and reliable wire insertion during assembly.

TE Connectivity PIDG terminals are engineered to provide uniform, consistent crimps for demanding circuit environments, making them a key component in professional and industrial electrical wiring solutions. Explore more TE Connectivity connectors and spade terminals on EnvMart for comprehensive electrical component needs.
