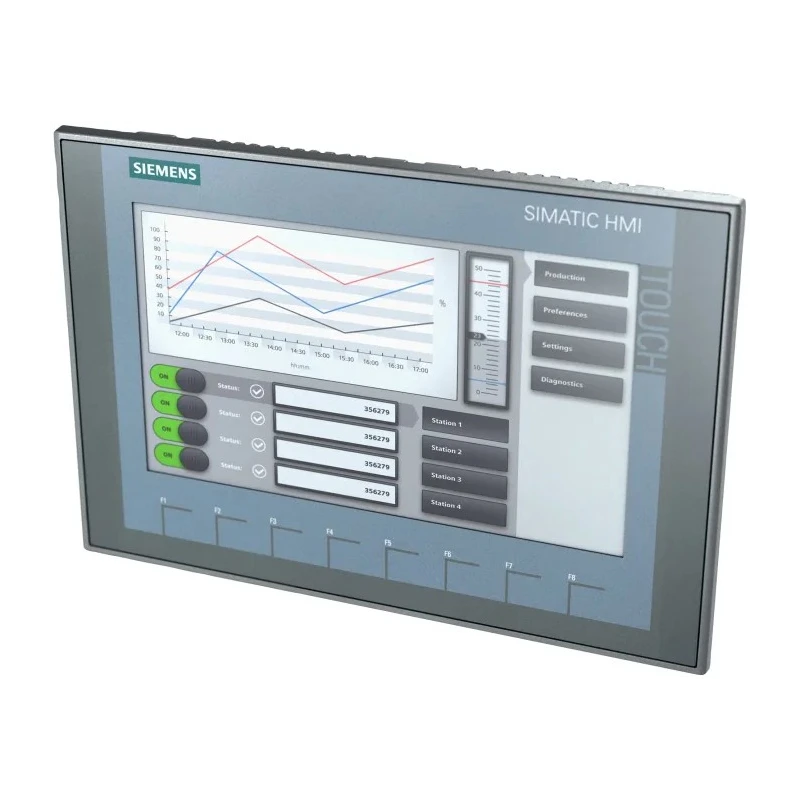

Siemens KTP900 Basic SIMATIC Series HMI Panel 228.6 mm TFT Display 800 x 480 pixel KTP900

Siemens KTP900 Basic SIMATIC Series HMI Panel, model KTP900, features a 228.6 mm diagonal TFT display with a high resolution of 800 x 480 pixels. This new industrial-grade HMI panel is engineered to efficiently monitor and control automated machinery and processes in manufacturing, industrial, and commercial environments. It operates on a 24V DC supply, making it suitable for low-voltage industrial applications.

The panel boasts a responsive touchscreen interface that facilitates intuitive operator input, boosting productivity and data entry accuracy. With an onboard memory of 10,256 MB, substantial data storage for real-time monitoring and logging is assured.

Connectivity is versatile through dual ports: USB for direct device connection and Ethernet for network integration, enabling seamless communication within industrial networks.

Designed for durability, the panel features an IP65 rating, ensuring resistance against dust ingress and protection against low-pressure water jets, which is critical for harsh industrial settings. The robust body made from corrosion-resistant plastic further enhances its longevity.

Operating temperature range from 0°C to 50°C supports deployment in diverse environments. The unit complies with international safety and quality standards such as KC, cULus, CE, RCM, and hazardous area certifications ATEX and IECEx, ensuring compliance for use in explosive atmospheres.

The compact form factor with dimensions of 267 mm length, 182 mm width, and 55 mm depth allows for straightforward panel mounting and integration into control cabinets.

Powered by a low-consumption ARM processor, it delivers efficient performance with an expected mean time before failure (MTBF) of approximately 20,000 hours, reflecting reliable long-term operation.

Features a sharp TFT display delivering clear images. Equipped with two ports: USB and Ethernet for versatile connectivity. Backlighting included for enhanced visibility in various lighting conditions. Onboard memory of 10,256 MB offers ample storage for data and applications.

Maintains operational integrity between 0°C to 50°C. Constructed with a durable plastic body ensuring corrosion resistance. IP65 rated, providing dust protection and resistance to low-pressure water jets. Compact dimensions with 267 mm length, 182 mm width, and 55 mm depth for easy panel mounting.

Certified with standards including KC, cULus, CE, RCM, ATEX, and IECEx for hazardous area suitability. Optimized ARM processor ensures low power consumption with high performance.

This Siemens KTP900 Basic HMI Panel is ideal for industrial automation, manufacturing, HVAC, water treatment, and agricultural process control. Its durability, connectivity options, and touchscreen functionality enhance industrial process visualization and control.
