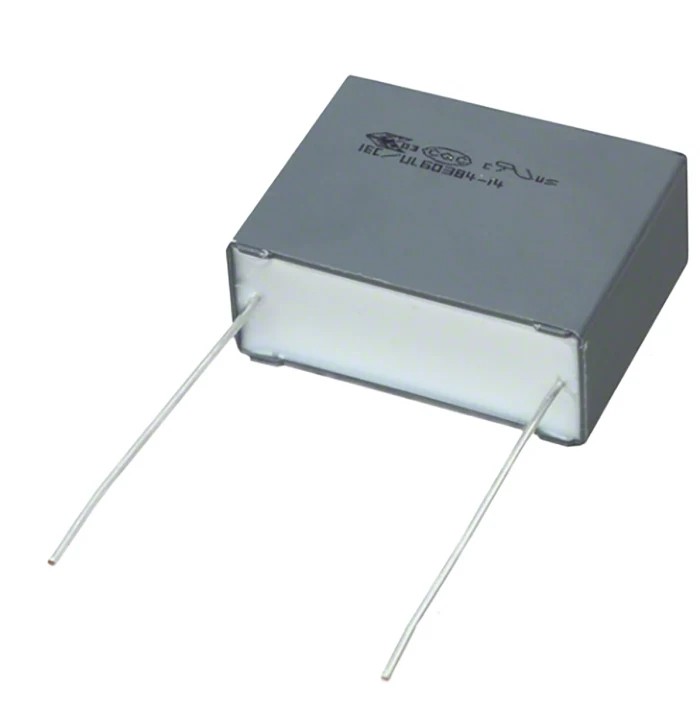

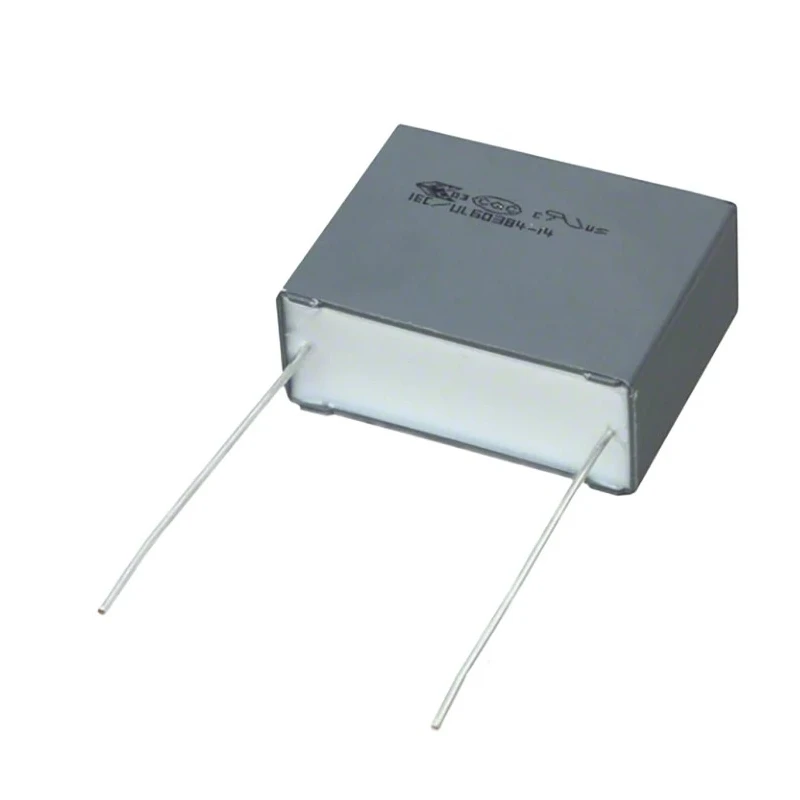

KEMET F863 Film Capacitor X2 Suppression Class, ±10% Tolerance, 680nF Capacitance, 630V DC 310V AC, Through F863DN684K310R

KEMET F863DN684K310R is a film capacitor constituent of the F863 series designed for EMI suppression applications in industrial, automotive, and electronic equipment. It features a metallized polypropylene film encapsulated with a self-extinguishing UL 94 V-0 rated resin, ensuring high safety and durability under harsh environmental conditions.

With a capacitance of 680nF and a capacitance tolerance of ±10%, this capacitor is rated at 630V DC and 310V AC, enabling effective noise filtering and suppression in power line circuits. The capacitor complies with the AEC-Q200 automotive standard, making it well-suited for demanding automotive electronics requiring reliability and extended temperature range operation from -40°C to +110°C.

This through-hole mounted component has radial terminal types with a lead pitch of 22.5mm and lead length of 18.5mm, enabling straightforward printed circuit board assembly. Its compact dimensions of 26.5mm length, 18.5mm height, and 10mm width suit tight design constraints in electronic assemblies. The device is packaged in a pizza pack format, supporting easy handling and manufacturing integration.

The capacitor is certified by multiple international standards including UL, ENEC, cUL, and CQC, ensuring compliance and safety in global markets. A typical dissipation factor of 0.2% ensures efficient operation with minimal power loss. This component’s construction and approvals make it ideal for use in industrial controls, automotive electronic systems, power supplies, and EMI noise suppression applications.

Constructed from metallized polypropylene film encapsulated in UL 94 V-0 compliant resin. Operating temperature range: -40°C to +110°C for robust environmental tolerance. Meets automotive AEC-Q200 standards for reliability in automotive systems.

Radial through-hole mount with 22.5mm lead pitch and 18.5mm lead length facilitates PCB assembly. Approvals include UL, ENEC, cUL, and CQC ensuring safety and reliability. Capacitance of 680nF with ±10% tolerance for precise performance.

Package type: Pizza Pack for manufacturing efficiency. Dissipation factor is 0.2%, optimizing energy efficiency during operation.

This KEMET film capacitor suits industrial electronics, automotive circuitry, power management applications, and EMI suppression tasks where durability, safety, and compliance are critical. Browse the Film Capacitors category on EnvMart for related components and accessories.
