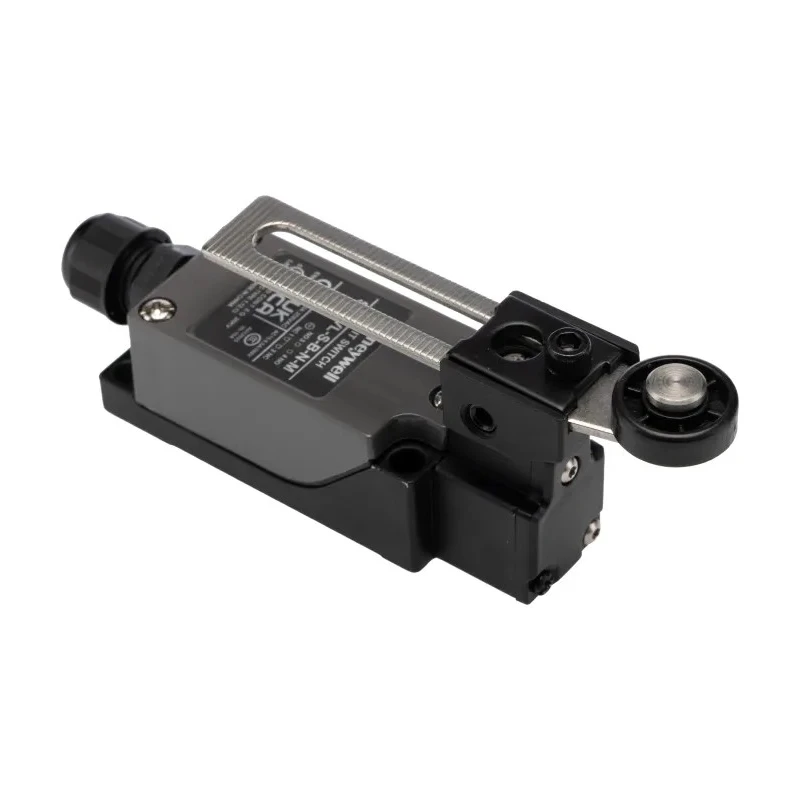

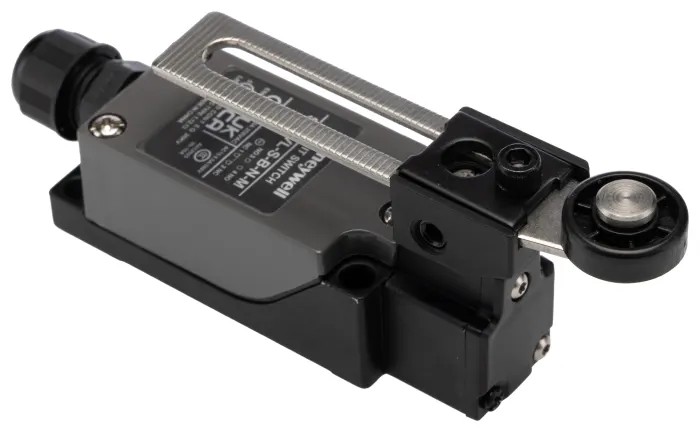

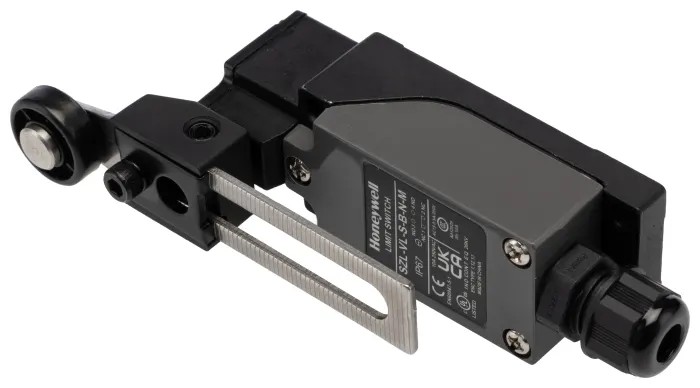

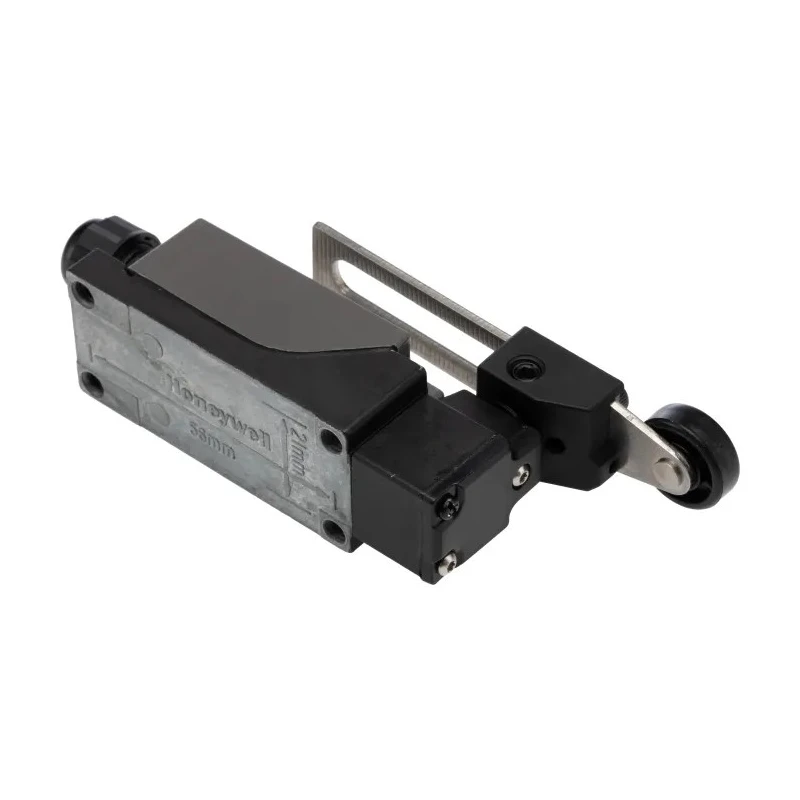

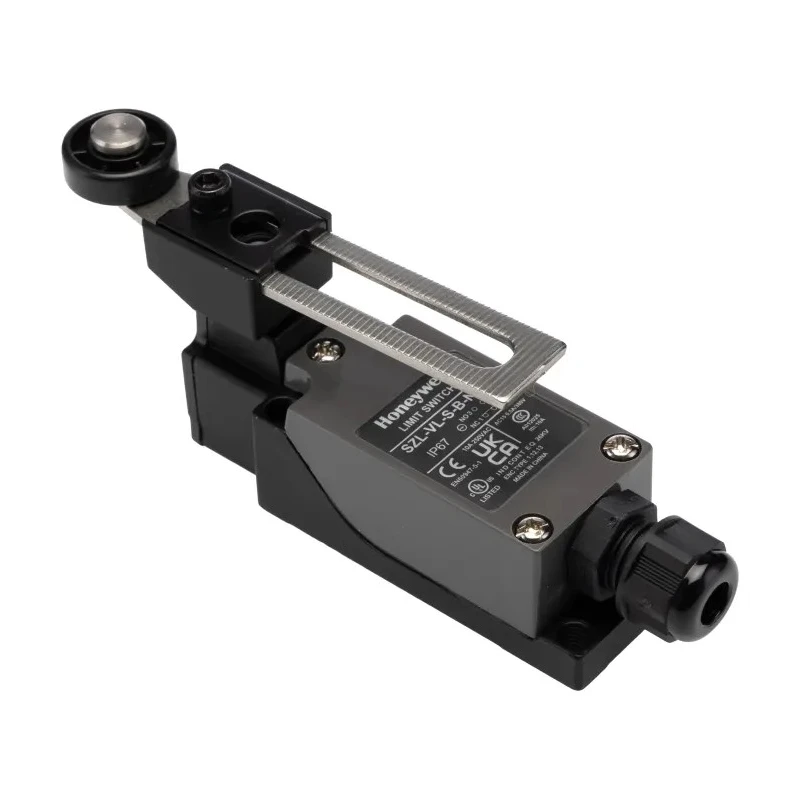

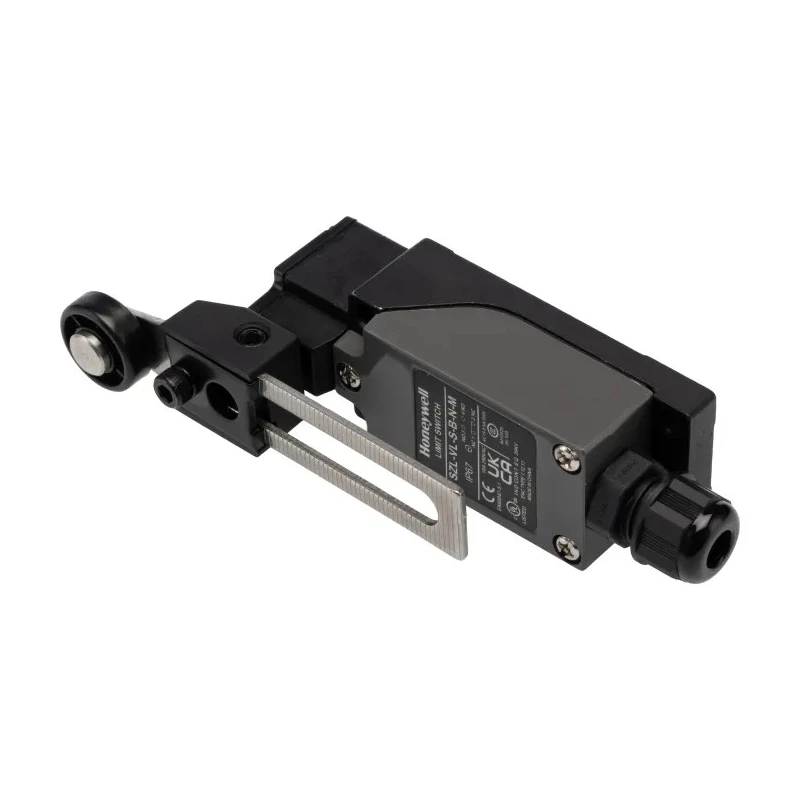

Honeywell Technologies SZL-VL Series Adjustable Lever Side Rotary Limit Switch SPDT IP67 Metal Housing 380V SZL-VL-S-B-N-M

Honeywell Technologies SZL-VL Series Adjustable Lever Side Rotary Limit Switch SZL-VL-S-B-N-M is a robust industrial device designed for mechanical position detection and electrical switching in automation and control systems. It features an adjustable side-mounted rotary lever actuator which provides adaptable actuation angles suitable for diverse applications including conveyor end-of-travel detection, machine guarding, and control logic input sensing.

This limit switch employs snap-action SPDT contacts for rapid and precise switching performance. It is rated for a switching current of 10A at 380V AC and 220V DC, enabling usage in both AC and DC industrial circuits. The IP67 rated die-cast metal housing ensures strong resistance to dust ingress and water immersion, making it fit for challenging industrial environments.

Designed for front panel mounting, it features an M12 terminal conduit entry facilitating secure and straightforward electrical connections. The device operates reliably over a temperature range of -20°C to 70°C and provides a mechanical endurance of up to 10 million cycles, promising long maintenance intervals and high operational reliability.

Common industrial uses include conveyor end position sensing in manufacturing lines, retrofitting safety interlocks on rotating machinery, and deployment in material handling equipment. Compliance with cULus, CE, and CCC certifications assures conformity with regional safety and quality standards. The compact dimensions - 82.5mm width, 49.5mm depth, and 28.5mm length - support integration into constrained panel spaces.

Features an adjustable lever side rotary actuator for versatile operation. SPDT contact configuration enables changeover switching for multiple circuit options. Rated for switching currents up to 10A at 380V AC and 220V DC.

IP67 die-cast metal housing provides excellent protection against dust and water immersion. Mechanical life of 10 million cycles assures long service life and durability. Suitable for operation in temperatures ranging from -20°C to 70°C.

M12 conduit entry allows easy and secure electrical connections. Compact size with dimensions 82.5mm width, 49.5mm depth, and 28.5mm length. Ideal for conveyor, material handling, and machine safety applications requiring precise mechanical position sensing.
