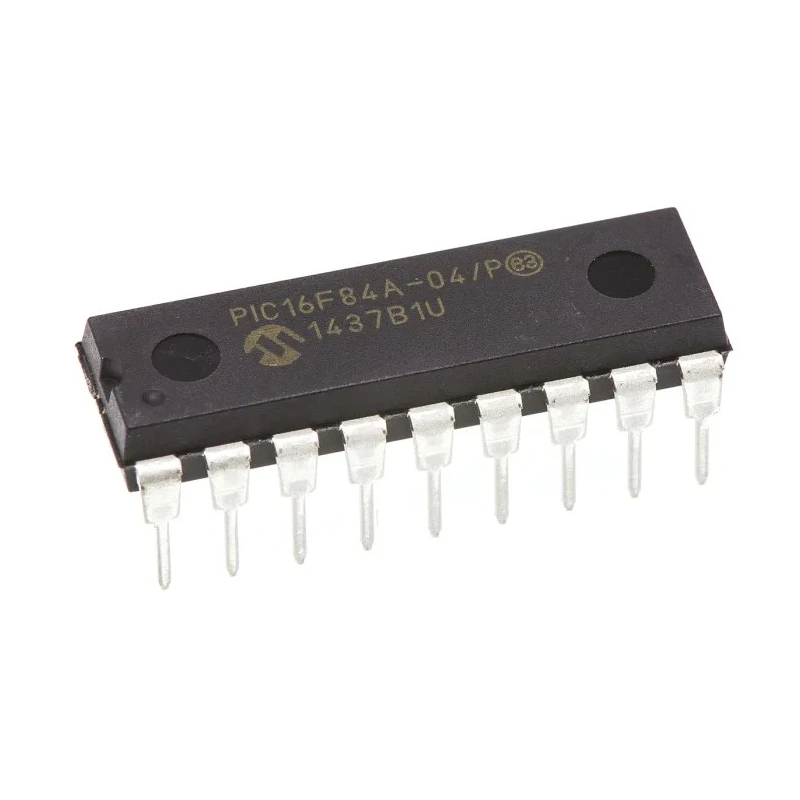

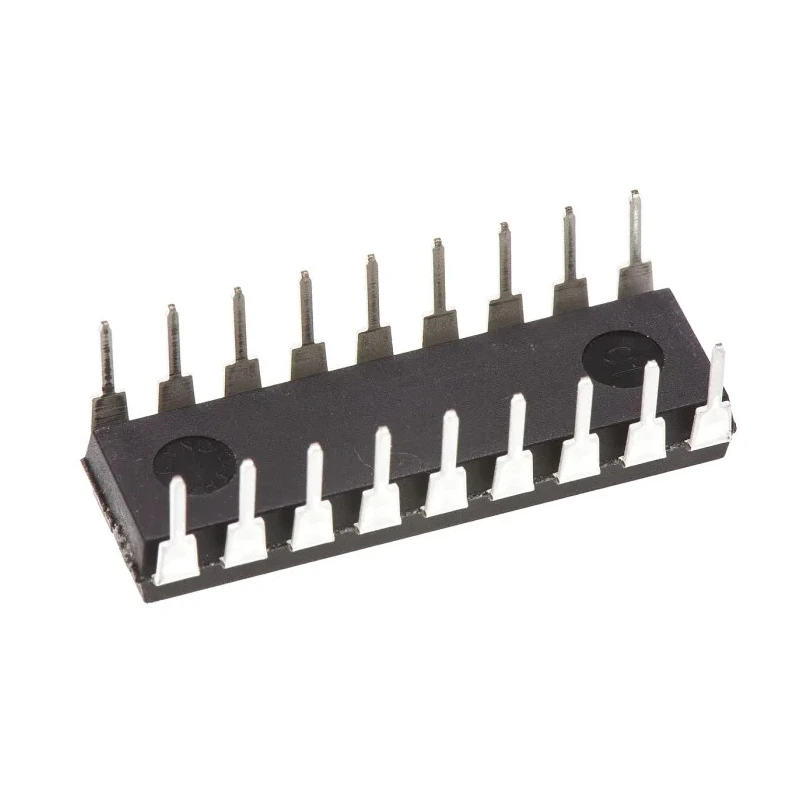

Microchip 8-Bit PIC16F84A 4 MHz Flash Microcontroller 18-Pin PDIP PIC16F84A-04/P

Microchip PIC16F84A-04/P is an 8-bit flash microcontroller operating at 4 MHz clock frequency. It is housed in an 18-pin PDIP package designed for through-hole mounting, commonly used in industrial, educational, and development applications.

Featuring 1 KB of program memory, 68 bytes of RAM, and 13 programmable input/output pins, this microcontroller offers ample resources for embedded control and automation projects. It requires a minimum supply voltage of 2V and supports up to 6V with a maximum power dissipation of 800 mW, making it energy-efficient for various designs.

The device integrates essential peripheral functionality including one 8-bit timer, watchdog timer, power-on reset, brown-out reset, oscillator start-up timer, and supports in-circuit serial programming (ICSP). Its RISC architecture with 35 instructions and an 8-level hardware stack provides efficient computational capabilities up to 20 MIPS.

Key industrial use cases include small scale embedded system development, educational kits for microcontroller learning, hobbyist projects, and prototyping. The package dimensions of approximately 22.99mm length, 6.6mm width, and 3.68mm height allow compatibility with standard PCB layouts.

The product conforms to RoHS standards to ensure compliance with environmental safety regulations. It operates reliably between 0°C to 70°C ambient temperatures. The 8-bit data bus width and absence of ADCs make it suitable for digital control applications where analog inputs are not required.

This microcontroller offers 1 KB FLASH program memory and 68 bytes of RAM for versatile embedded applications. Operates within a supply voltage range of 2 V to 6 V with a low maximum power dissipation of 800 mW. Features 13 programmable input/output pins for flexible peripheral interfacing.

Suitable for through-hole mounting on PCBs via its PDIP package for easy prototyping and assembly. Supports common peripherals including one 8-bit timer and in-circuit serial programming (ICSP) for software development. Built on RISC architecture with 35 instructions and an 8-level hardware stack for efficient processing.

Recommended operating temperature range is from 0°C to 70°C, ideal for general industrial and educational use. Complies with RoHS standards ensuring environmental safety in electronic designs. Extensive features like power-on reset, watchdog timer, brown-out reset, and oscillator start-up timer increase reliability.
