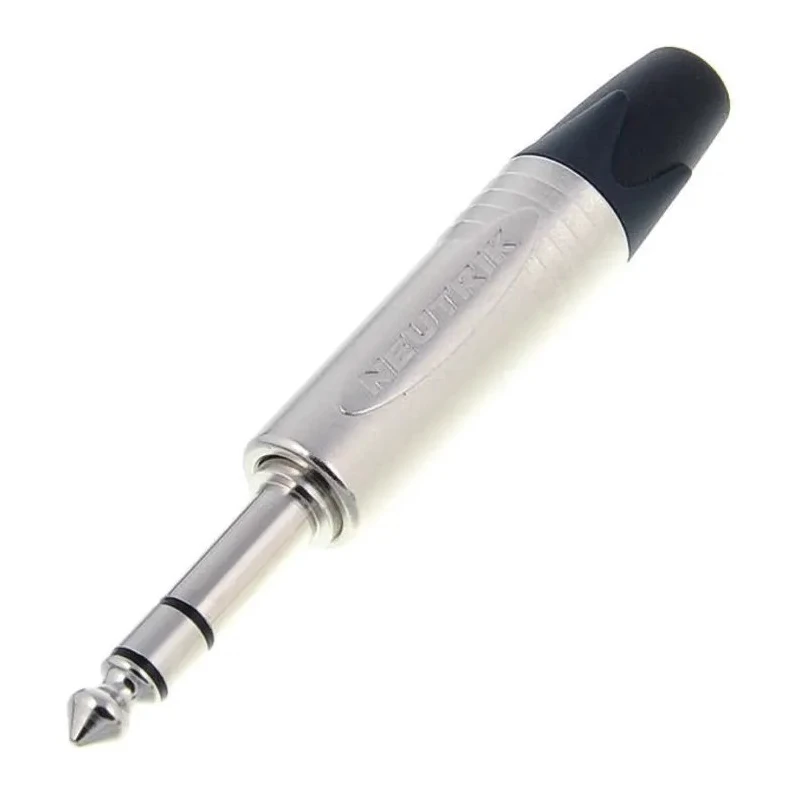

Neutrik Jack Connector 6.35 mm Cable Male 3 Stereo 3A Solder NP3X

Neutrik NP3X is a 6.35 mm (1/4 inch) male stereo jack connector designed for cable mounting with solder termination, rated at 3A and 50V. It features premium nickel-plated brass contacts housed within a durable polyamide shell. The slimline die cast shell is engineered to meet high-density jack field requirements with a compact 14.5 mm width.

This professional-grade jack connector includes an improved chuck type strain relief for reliable cable retention, precision-machined one-piece contacts without rivets, and a screwless assembly. The product supports wire sizes up to 1 mm² (18 AWG) and cable outer diameters up to 8 mm.

Operating across a temperature range from -20°C to 65°C, the NP3X jack connector is suited for commercial and domestic audio uses, music studios, and custom sound systems requiring rugged and reliable connections.

Rated for 50V and 3A current capacity. Nickel-plated brass contacts for high conductivity. Polyamide housing for lightweight durability. Slim die cast shell with 14.5 mm width for high-density panel installations. Improved strain relief for cable retention.

Solder termination with screwless assembly. Suitable for cable outer diameters up to 8 mm. Ideal for studios, instruments, and commercial audio applications.

Manufactured in Liechtenstein, this Neutrik NP3X Jack Connector meets rugged deployment needs and exacting standards for professional audio connectivity. Browse related audio/video connectors and Neutrik products at EnvMart for more options.
