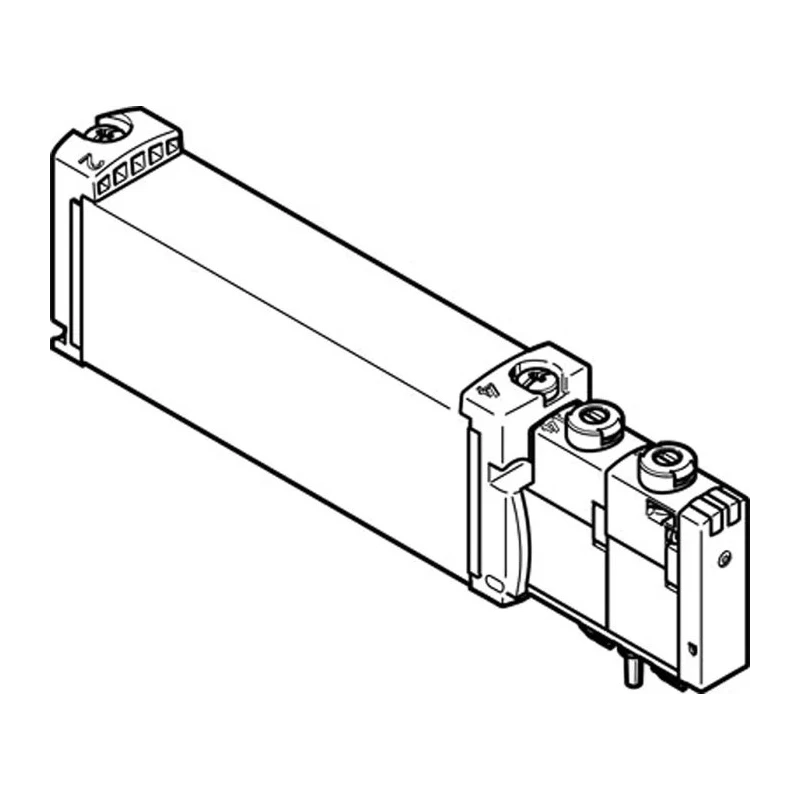

Festo Solenoid Valve 5/3 Mid Position Closed Electric Manifold Mount Aluminium Alloy 24V DC VUVG-B18-P53C-ZT-F-1T1L
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 24V dc |
| Brand | Festo |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 10 (External) bar, 8 (Internal) bar |
| Length | 74.3mm |
| Model | VUVG-B18-P53C-ZT-F-1T1L |
| Width | 18mm |
| Mount Type | Manifold |
| Series | VUVG |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 60°C |
| Port Type | Push-in |
| Number of Positions | 3 |
| Port Size | M3 |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Electric |
| Protection | IP 40/IP 65 |
| Maximum Flow Rate | 900L/min |
| Standards/Approvals | CE, cULus, RoHS |
| Minimum Pilot Pressure | -0.9bar |
| Valve Function | 5/3 Mid Position Closed |
| Electrical Connection Type | Manifold Block |
| Maximum Pilot Pressure | 8bar |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 1W |
Key Features
- Operates on 24V DC electric actuation for efficient control.
- Manifold mount type with 5 ports and 3 positions for versatile pneumatic control.
- Maximum operating pressure of 10 bar externally and 8 bar internally for robust performance.
- Seal made of Nitrile Rubber (NBR) ensuring tight sealing and longevity.
- Compact size with 74.3mm length and 18mm width saving installation space.
- Suitable for industrial applications with IP40/IP65 protection ratings.
- High maximum flow rate of 900 L/min allowing for rapid pneumatic operations.
- Includes electrical manifold block connection for simplified wiring and installation.
Product Description
Festo VUVG-B18-P53C-ZT-F-1T1L solenoid valve is a 5/3 mid position closed electric pneumatic control valve operating at 24V DC. Its manifold mounting configuration along with aluminium alloy body design makes it suitable for applications where compact size, weight, and flow rate are critical.
This valve features a piston spool with sealing cartridge and is designed for use with external pilot air supply. The valve's electrical connection uses a manifold block which facilitates quick installation and maintenance.
With a maximum operating pressure of 10 bar externally and 8 bar internally, and a maximum flow rate of 900L/min, the valve ensures reliable and powerful pneumatic control. The valve is protected to IP40/IP65 standards and operates effectively within temperatures of -5°C to 60°C.
Its robust construction includes high-quality nitrile rubber seals and an aluminium alloy body, providing durability and resistance suitable for industrial, manufacturing, water treatment, and HVAC pneumatic systems.
Operates on 24V DC electric actuation for efficient control. Manifold mount type with 5 ports and 3 positions offers versatile pneumatic control. Maximum operating pressure of 10 bar externally and 8 bar internally for robust performance.
Seal made of Nitrile Rubber (NBR) ensures tight sealing and reliability. Compact size with length 74.3mm and width 18mm saves installation space. Suitable for industrial applications with IP40/IP65 ingress protection. High maximum flow rate of 900 L/min allows rapid pneumatic operation.
Electrical manifold block connection simplifies wiring and maintenance. Manufactured in Germany conforming to CE, cULus and RoHS standards.
This solenoid valve supports fast installation and troubleshooting with integrated LED indicators and a reliable design for extended service life, minimizing downtime in pneumatic systems. It is ideal for use in industrial automation, mechanical fluid power controls, and machinery requiring precise pneumatic actuation.
Explore more Pneumatic Solenoid Valves and accessories in the Industrial Supplies category on EnvMart for a complete solution.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure is 10 bar externally and 8 bar internally.
It has a maximum flow rate of 900 L/min, allowing for rapid pneumatic operations.
This model operates on electric actuation at 24V DC.
The valve has a length of 74.3 mm and a width of 18 mm, making it compact for installation.
It features an aluminium alloy body and seals made of Nitrile Rubber (NBR).
It has IP40/IP65 protection ratings, making it suitable for various industrial applications.
This solenoid valve has 5 ports and operates in 3 positions.
The valve operates effectively within a temperature range of -5°C to 60°C.
It uses a manifold block for electrical connection, facilitating quick installation and maintenance.
It conforms to CE, cULus, and RoHS standards, ensuring compliance with safety regulations.
The minimum pilot pressure required is -0.9 bar.
It is suitable for industrial applications, including manufacturing, water treatment, and HVAC pneumatic systems.
