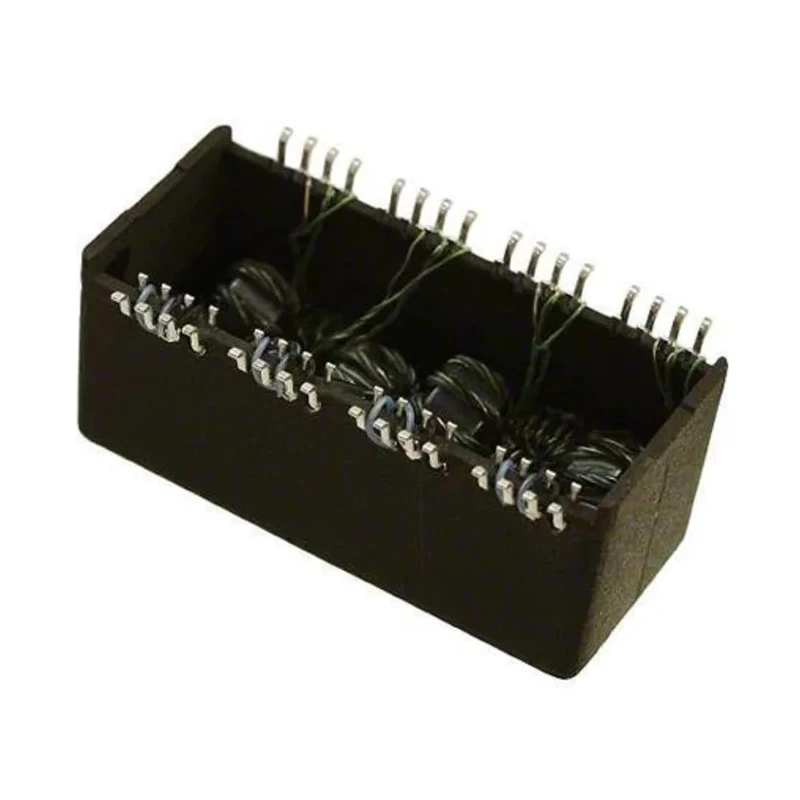

Wurth Elektronik Surface LAN Ethernet Transformer, 1 Output, 350μH, Surface Mount, Dimensions 28.57mm x 12.7mm x 749024012
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Length | 28.57mm |
| Depth | 10.85mm |
| Width | 12.7mm |
| Mount Type | Surface |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | Ethernet |
| Number of outputs | 1 |
| Inductance | 350μH |
| Isolation Voltage | 4000V ac |
| Insertion Loss | -1.3dB |
| Turns Ratio | 1:1 |
| Turns Ratio1 | 1 |
Key Features
- The transformer supports surface mount with termination type solder.
- Operating temperature range is from -40°C to 85°C ensuring stable performance.
- Features insertion loss of -1.3dB and an isolation voltage of 4000V AC.
- Compliant with IEEE 802.3 standards including IEEE 802.3af, IEEE 802.3at, and upcoming IEEE 802.3bt.
- Compatible with Ethernet ICs such as Intel, AMD, Globespan, and Realtek.
- Ideal for 10/100/1000 1 Port LAN applications, routers, hubs, and switches.
Product Description
Wurth Elektronik 749024012 Surface LAN Ethernet Transformer is a high-performance electronic component designed for Ethernet and Power over Ethernet (PoE) applications. It features a single output and 350μH inductance, with a compact surface mount construction suitable for modern PCB assemblies.
With dimensions measuring 28.57 mm in length, 12.7 mm in width, and 10.85 mm in depth, this transformer supports reliable signal integrity and interference reduction. The device operates efficiently in environments ranging from -40°C to 85°C, making it robust for industrial, telecommunications, and commercial networking equipment.
This transformer offers an insertion loss of -1.3dB and isolation voltage rating of 4000V AC, ensuring excellent protection and signal quality. It complies with several international standards including EN 60950-1, IEC 60601-1:2006, UL 60950-1, AS/NZS 60950.1, IEC 60950-1, CSA 60950-1, and IEEE 802.3, guaranteeing quality and compatibility.
It is particularly compatible with major Ethernet ICs from manufacturers such as Intel, AMD, Globespan, and Realtek, supporting 10/100/1000 Mbps speeds. This makes it ideal for hubs, routers, switches, and other networking equipment requiring LAN Ethernet Transformers.
Applications include industrial Ethernet communication, data centers, network infrastructure, and commercial networking devices. The transformer supports surface mount solder termination for easy PCB integration. Operating temperature range from -40°C to 85°C ensures stable use in diverse environments.
Insertion loss of -1.3dB maintains effective signal transmission. Compliance with IEEE 802.3af and IEEE 802.3at standards makes it suitable for PoE implementations. Isolation voltage of 4000V AC provides high protection against electrical surges.
Dimensions (LxWxD) are 28.57mm x 12.7mm x 10.85mm for compact design. Inductance rated at 350μH for consistent performance. Explore more transformers and Ethernet components at EnvMart for your industrial and commercial electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The transformer has an inductance rating of 350μH, providing consistent performance for Ethernet applications.
It features an isolation voltage of 4000V AC, ensuring high protection against electrical surges.
The dimensions of this transformer are 28.57mm in length, 12.7mm in width, and 10.85mm in depth.
This model operates efficiently within a temperature range of -40°C to 85°C, suitable for various environments.
The transformer has an insertion loss of -1.3dB, which helps maintain effective signal transmission.
It complies with several standards including IEEE 802.3, EN 60950-1, and UL 60950-1, ensuring quality and compatibility.
This model supports solder termination, making it suitable for surface mount applications.
It is compatible with Ethernet ICs from manufacturers such as Intel, AMD, Globespan, and Realtek.
It is designed for applications in industrial Ethernet communication, data centers, and commercial networking devices.
The mount type for this transformer is surface mount, suitable for modern PCB assemblies.
This transformer has a single output, making it suitable for various networking applications.
The transformer is manufactured in India, reflecting its origin.
