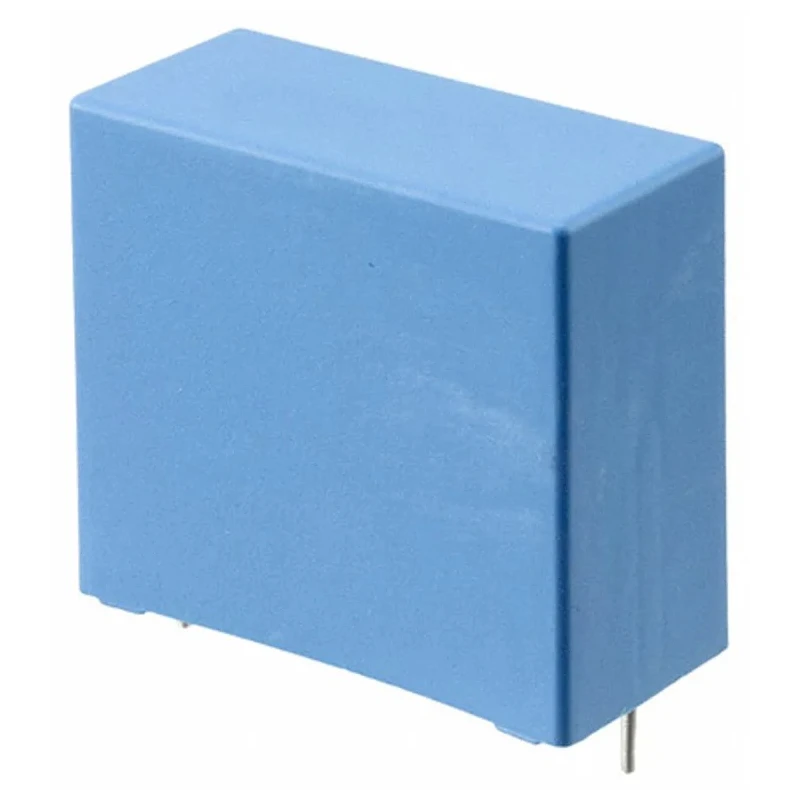

KEMET Polypropylene Film Capacitor Through Hole Radial 100 nF ±5% 250 V dc 180 V ac PHE450

Free Delivery in India | Lowest Global Shipping Charges

KEMET Polypropylene Film Capacitor Through Hole Radial 100 nF ±5% 250 V dc 180 V ac PHE450

Name: KEMET Polypropylene Film Capacitor Through Hole Radial 100 nF ±5% 250 V dc 180 V ac PHE450
Brand: KEMET
SKU: 144267
Price: 0.41 USD
Availability: InStock



Category Film Capacitors Brand KEMET Condition New

Specifications

Country of Origin	India
Brand	KEMET
Height	12mm
Length	13mm
Model	PHE450
Packaging	Tape & Reel
Width	6mm
Mount Type	Through Hole
Series	PHE450
Maximum Operating Temperature	105°C
Tolerance	±5 %
Capacitance	100nF
Minimum Operating Temperature	-55°C
Terminal type	Radial
Dissipation Factor	0.0003%
Rated Voltage	250 V dc to 3000 V dc
Lead Length	17mm
Standards/Approvals	RoHS
Pin Count	2
Rated AC Voltage	180V ac
Rated DC Voltage	250V dc
Lead Pitch	10mm
Lead Diameter	0.8mm
Capacitance tolerance	±5%, other tolerances on request
Lead Spacing	7.5 mm to 37.5 mm

Key Features

The capacitor supports a rated DC voltage of 250 V and an AC voltage of 180 V.
It features a lead pitch of 10 mm and lead length of 17 mm with radial terminal type for secure PCB attachment.
Operating temperature range is from -55°C up to 105°C, supporting robust performance in varied environments.
Capacitor is encapsulated in a self-extinguishing resin meeting UL 94 V-0 standards ensuring safety and reliability.
Designed to handle high current stress, ideal for pulse and snubber circuit applications.
The dissipation factor is exceptionally low at 0.0003%, enabling efficient performance with minimal energy loss.
Package includes tape & reel for easy automated assembly and handling.
Lead diameter is 0.8 mm and pin count is 2, conforming to common through-hole industry standards.

Product Description

KEMET PHE450 polypropylene capacitor model PHE450HA6100JR17 is a high-quality, double metallized film capacitor designed for demanding applications requiring stable performance up to 250 V dc and 180 V ac. Featuring a capacitance of 100 nF with ±5% tolerance and a lead pitch of 10 mm, this through hole radial capacitor ensures reliable PCB mounting with 17 mm lead length and 0.8 mm lead diameter.

Encapsulated in a self-extinguishing resin that meets UL 94 V-0 requirements, the capacitor offers exceptional safety and durability, suitable for industrial and electronic applications requiring high current pulse and snubber circuits protection. The wide operating temperature range from -55°C to 105°C ensures stable operation in harsh environments common in power supply and television deflection circuits.

This capacitor features an extremely low dissipation factor of 0.0003%, maximizing efficiency and minimizing energy losses during operation. The packaging in tape & reel format facilitates automated assembly line processes.

The capacitor supports a rated voltage range from 250 V dc to 3000 V dc and 180 to 1000 V ac depending on the series specification. It features radial terminal type with pin count of 2, ensuring electrical and mechanical stability.

The device height of 12 mm, length of 13 mm, and width of 6 mm provide a compact form factor optimized for space-constrained PCB designs. KEMET’s PHE450 series polypropylene film capacitors are suited for use in industrial power electronics, switch mode power supplies, and consumer electronics applications.

The product complies with RoHS standards, emphasizing environmental compliance and lead-free construction. This capacitor is not designed for automotive applications, ensuring optimized performance for general industrial use.

Lead spacing ranges from 7.5 mm to 37.5 mm across the series offering design flexibility for various circuit board requirements.

Choose KEMET PHE450 capacitors for reliable, efficient, and safe film capacitor solutions. Browse other KEMET Film Capacitors and electronic components available on EnvMart to complement your design and production needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a capacitance of 100 nF with a tolerance of ±5%.

It supports a rated DC voltage of 250 V and an AC voltage of 180 V, with a maximum DC voltage rating of up to 3000 V depending on the series specification.

The operating temperature range is from -55°C to 105°C, allowing it to function in various environmental conditions.

It features a lead pitch of 10 mm and a lead length of 17 mm, ensuring compatibility with standard PCB layouts.

This unit has a radial terminal type, which is suitable for through-hole mounting on PCBs.

The dissipation factor is exceptionally low at 0.0003%, which contributes to efficient performance with minimal energy loss.

The dimensions are 12 mm in height, 13 mm in length, and 6 mm in width, making it compact for space-constrained applications.

It is packaged in tape & reel format, facilitating easy automated assembly and handling.

Yes, it complies with RoHS standards, emphasizing environmental compliance and lead-free construction.
