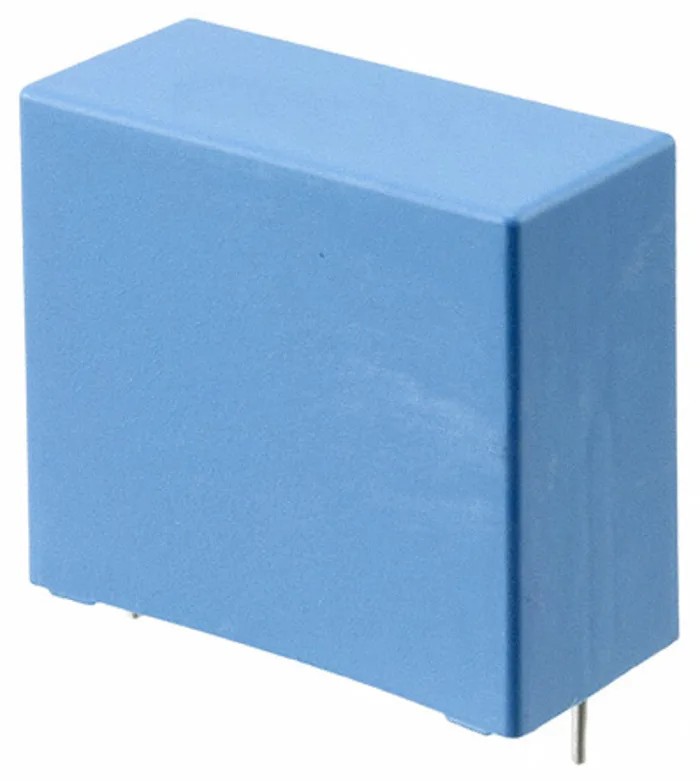

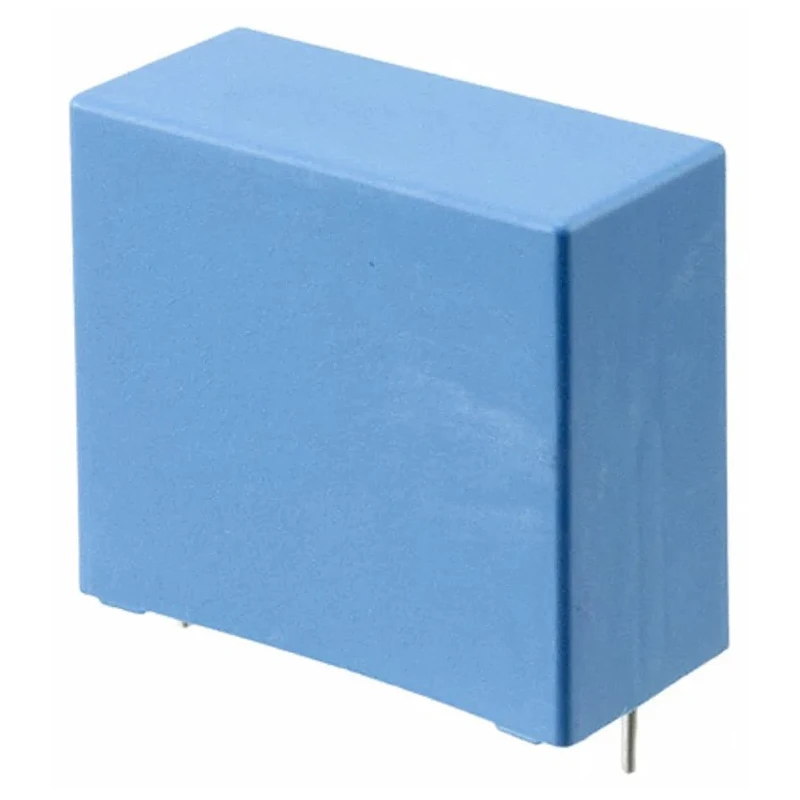

KEMET PHE450 Polypropylene Capacitor, ±5 % Tolerance, 680 nF, 630 V DC, 180 V AC, Through Hole Mount PHE450

Free Delivery in India | Lowest Global Shipping Charges

KEMET PHE450 Polypropylene Capacitor, ±5 % Tolerance, 680 nF, 630 V DC, 180 V AC, Through Hole Mount PHE450

Name: KEMET PHE450 Polypropylene Capacitor, ±5 % Tolerance, 680 nF, 630 V DC, 180 V AC, Through Hole Mount PHE450
Brand: KEMET
SKU: 144264
Price: 4.48 USD
Availability: InStock



Category Film Capacitors Brand KEMET Condition New

Specifications

Country of Origin	India
Brand	KEMET
Height	24.5mm
Length	31.5mm
Model	PHE450
Packaging	Tape & Reel
Width	14.5mm
Mount Type	Through Hole
Series	PHE450
Maximum Operating Temperature	105°C
Tolerance	±5 %
Capacitance	680nF
Minimum Operating Temperature	-55°C
Terminal type	Radial
Dissipation Factor	0.0003%
Rated Voltage	250 V dc to 3000 V dc
Lead Length	6mm
Standards/Approvals	RoHS
Pin Count	2
Rated AC Voltage	180V ac
Rated DC Voltage	630V dc
Lead Pitch	27.5mm
Lead Diameter	0.8mm
Capacitance tolerance	±5%, other tolerances on request
Lead Spacing	7.5 mm to 37.5 mm

Key Features

High-quality metallized polypropylene film construction ensures durability and reliability.
Rated for continuous operation at temperatures ranging from -55°C to 105°C.
Capacitor designed for protection circuits in switch mode power supplies and deflection circuits in televisions.
Encapsulated in self-extinguishing resin compliant with UL 94 V-0 standards for enhanced safety.
Radial terminal type with a lead pitch of 27.5 mm and lead length of 6 mm for easy installation.
Dissipation factor of 0.0003% minimizes power losses during operation.
Packaging provided in tape and reel format suitable for automated assembly.
Complies with RoHS standards, ensuring environmental safety and reduced hazardous substances.

Product Description

KEMET PHE450 Polypropylene Capacitor, model PHE450, delivers reliable performance with a capacitance of 680 nF and a tolerance of ±5%. This film capacitor is rated at 630 V DC and 180 V AC for a wide range of electronic applications requiring high stability and current stress resistance.

The capacitor features double metallized polypropylene film technology encapsulated in a self-extinguishing resin package that satisfies UL 94 V-0 fire safety requirements. With a radial terminal type, it is suitable for through-hole mounting on printed circuit boards.

Its operating temperature range extends from -55°C up to 105°C, making it suitable for demanding industrial and consumer electronics environments. The lead pitch of 27.5 mm, lead length of 6 mm, and lead diameter of 0.8 mm ensure compatibility with various circuit designs.

The low dissipation factor of 0.0003% enhances efficiency by minimizing energy loss, which is crucial in switch mode power supplies, snubber circuits, and other high-current applications.

Double metallized polypropylene film construction ensures high performance and longevity. Self-extinguishing resin encapsulation meets stringent UL 94 V-0 fire safety standards. Capacitance tolerance ±5% for precision electronic designs.

Rated for 630 V DC and 180 V AC operation ensuring wide application versatility. Radial terminal with 27.5 mm lead pitch for secure PCB mounting. Operating temperature range from -55°C to 105°C suitable for various environments.

Supplied in tape and reel packaging for automated assembly compatibility. Conforms to RoHS environmental directives for hazardous substance reduction.

This capacitor is ideal for industrial electronics, power supply units, audio equipment, television deflection circuits, and other high-stress electronic applications requiring stability and reliability.
