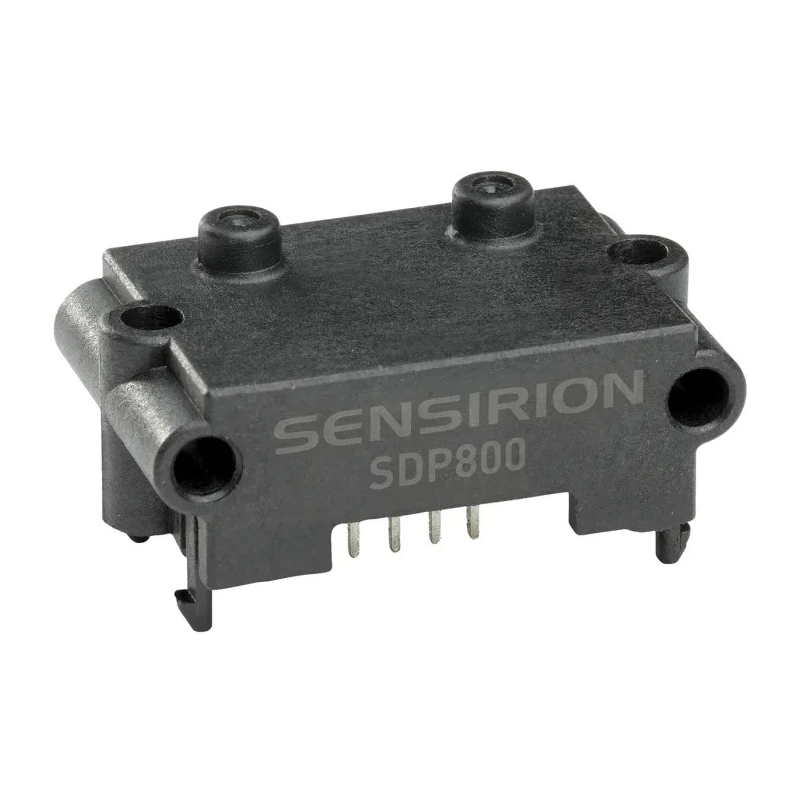

Sensirion Digital Differential Pressure Sensor Manifold PCB, 29mm Length, 14.25mm Height, Max Pressure 125 Pa SDP800-125Pa

Free Delivery in India | Lowest Global Shipping Charges

Sensirion Digital Differential Pressure Sensor Manifold PCB, 29mm Length, 14.25mm Height, Max Pressure 125 Pa SDP800-125Pa

Name: Sensirion Digital Differential Pressure Sensor Manifold PCB, 29mm Length, 14.25mm Height, Max Pressure 125 Pa SDP800-125Pa
Brand: Sensirion
SKU: 143841
Price: 29.76 USD
Availability: InStock



Category Pressure Sensor Brand Sensirion Condition New

Specifications

Country of Origin	India
Brand	Sensirion
Maximum Operating Pressure	125 pA
Height	14.25mm
Length	29mm
Model	SDP800-125Pa
Sensor Type	Differential Pressure Sensor
Mount Type	Manifold, PCB
Series	SDP800
Maximum Operating Temperature	85°C
Port Type	Manifold, Tube
Minimum Operating Temperature	-40°C
Standards/Approvals	REACH and RoHS
Pin Count	4
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	3V
Minimum Operating Pressure	-125Pa
Maximum Overload Pressure	1bar
Sensirion Differential Pressure Sensor, PCB MountBrand	Sensirion

Key Features

Compact size with 29 mm length and 14.25 mm height ensures easy PCB integration.
Operates reliably between -40°C to 85°C ambient temperature.
Supplies operate within 3 V to 5.5 V voltage range for flexibility.
Supports measurement of air and non-aggressive gases with high process capability.
Includes 4 pins for interface and features REACH and RoHS compliance.
Maximum overload pressure rating is 1 bar ensuring durability in demanding environments.
Mount type is manifold, PCB with manifold and tube port types.
Automotive grade not applicable (No automotive standard).

Product Description

The Sensirion SDP800-125Pa is a digital differential pressure sensor designed for accurate and stable measurement of low differential pressures up to 125 Pa. Manufactured with CMOSens technology, it allows high-quality integration on manifold PCBs with compact dimensions of 29 mm length and 14.25 mm height.

This sensor operates at supply voltages between 3 V and 5.5 V, making it flexible for various electronic applications. It is suitable for measuring differential air pressure or other non-aggressive gases, delivering stable and reliable results under a wide operating temperature range from -40°C to 85°C.

It features four pins for easy microprocessor interfacing and comes mounted on a manifold PCB with manifold and tube port options. The sensor can tolerate a maximum overload pressure of 1 bar, ensuring practical durability in installations.

Certified for REACH and RoHS standards, it adheres to environmental and safety compliance requirements. The device does not meet automotive standards and thus is suited for industrial, laboratory, HVAC, and instrumentation uses requiring precise differential pressure monitoring.

Compact digital differential Pressure Sensor with manifold PCB mount. Measurement range up to ±125 Pa differential pressure. Supply voltage range from 3 V to 5.5 V for flexible use. Operating temperature from -40°C to 85°C for a wide environmental range.

Robust overload pressure capacity of 1 bar ensures durability. Compliant with REACH and RoHS environmental standards. Four-pin interface for easy integration with microcontrollers. Suitable for air and non-aggressive gases in industrial applications.

This product is a premium choice for electronic component assemblers and engineers engaged in designing pressure sensing solutions across industrial, HVAC, laboratory instrumentation, and related sectors. Explore more sensors and electronic components in the Sensirion range with EnvMart.
