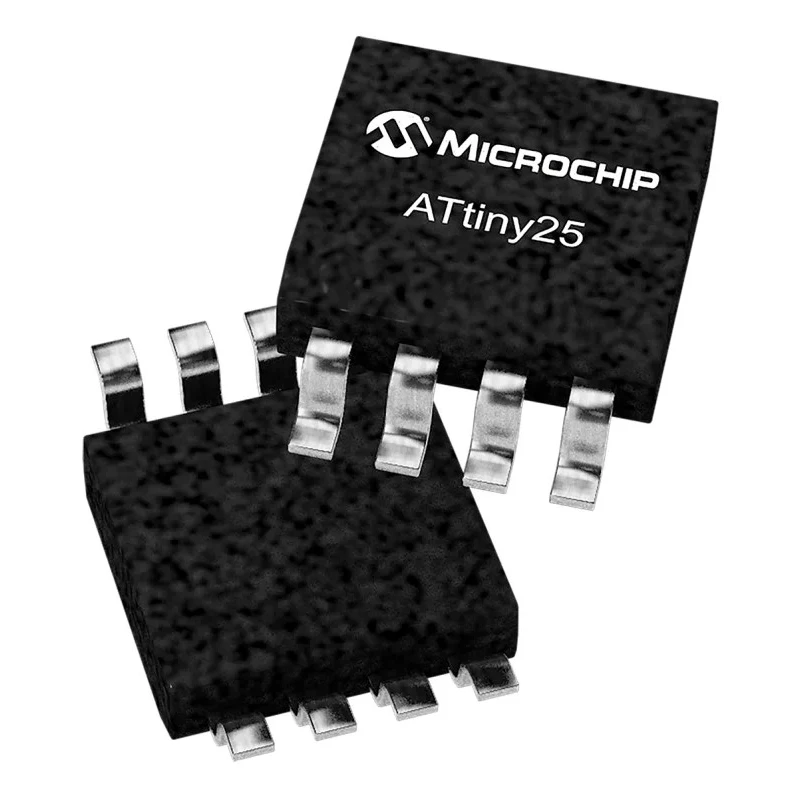

Microchip 8-Bit AVR Microcontroller 20 MHz, 2kB FLASH, 8-Pin SOIJ ATTINY25-20SU
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.91mm |
| Length | 5.35mm |
| Model | ATTINY25-20SU |
| Width | 5.4mm |
| Mount Type | Surface |
| Series | ATTINY25 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIJ |
| Minimum Operating Temperature | -40°C |
| Ram size | 128bit |
| Interface Type | SPI |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Device Core | AVR |
| Program Memory Size | 2kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 6 |
| Analogue Comparators | 1 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 4 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates at a maximum clock frequency of 20 MHz for efficient processing.
- Equipped with 2kB of FLASH program memory for versatile code storage.
- Features 128-bit RAM and an 8-bit data bus width for data handling.
- Includes 6 programmable I/Os suitable for diverse interfacing needs.
- Operates over a voltage range of 2.7V to 5.5V ensuring broad compatibility.
- Comes in a compact 8-pin SOIJ surface mount package, measuring 5.35mm length and 5.4mm width.
- Supports SPI interface for robust serial communication.
- Designed with an AVR core architecture featuring RISC instruction set for optimized performance.
Product Description
Microchip ATTINY25-20SU is an advanced 8-bit AVR microcontroller featuring a 20 MHz maximum clock frequency and 2kB of FLASH program memory, housed in a compact 8-Pin SOIJ package. It is designed for applications requiring efficient processing, low power consumption, and a small footprint.
This microcontroller operates with a data bus width of 8 bits and includes 128-bit RAM, providing adequate support for embedded applications. Its 6 programmable I/O lines and SPI interface allow versatile peripheral integration.
The device supports a wide supply voltage range from 2.7V to 5.5V, accommodating various power requirements in industrial, automotive, and consumer electronics. It functions reliably within an operating temperature range of -40°C to 85°C.
Equipped with RISC instruction set architecture, it delivers fast and efficient execution suitable for performance-sensitive embedded control tasks. The microcontroller includes one analogue comparator and four 10-bit ADC channels for precise analog signal measurement, enhancing its utility in diverse sensing and control systems.
With surface mount SOIJ packaging, the Microchip ATTINY25-20SU provides ease of PCB assembly and compact design fit for space-constrained applications. Its robust specifications make it ideal for use in industrial automation, automotive electronics, consumer devices, and small robotics systems.
Operates at 20 MHz clock frequency with efficient processing capabilities. 2kB FLASH program memory for storing application code. 128-bit RAM for temporary data storage during operations. 6 programmable I/O pins support various interfacing needs.
Wide voltage operation from 2.7V to 5.5V enhances flexibility. Four 10-bit ADC channels and one analogue comparator for analog input processing. Compact 8-pin SOIJ package measuring 5.35 x 5.4 x 1.91 mm. RISC architecture provides optimized instruction execution.
Designed for industrial temperature range from -40°C to 85°C. SPI interface enables serial communication connectivity. Explore the comprehensive range of Microchip Microcontrollers and support components available at EnvMart to optimize your embedded system designs and manufacturing efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This microcontroller operates at a maximum clock frequency of 20 MHz, allowing for efficient processing capabilities.
It is equipped with 2kB of FLASH program memory, providing versatile storage for application code.
This microcontroller operates over a voltage range of 2.7V to 5.5V, ensuring compatibility with various power requirements.
The microcontroller comes in a compact 8-pin SOIJ package, measuring 5.35mm in length, 5.4mm in width, and 1.91mm in height.
It includes 6 programmable I/O pins, suitable for diverse interfacing needs.
This model features a 128-bit RAM, providing adequate support for temporary data storage during operations.
It is equipped with one analogue comparator and four 10-bit ADC channels for precise analog signal measurement.
This microcontroller utilizes a RISC instruction set architecture, which optimizes performance for embedded control tasks.
It functions reliably within an operating temperature range of -40°C to 85°C, making it suitable for various environments.
This microcontroller supports an SPI interface for robust serial communication connectivity.
It features a surface mount design, which facilitates ease of PCB assembly in compact applications.
This microcontroller includes one timer, which can be utilized for various timing applications.
