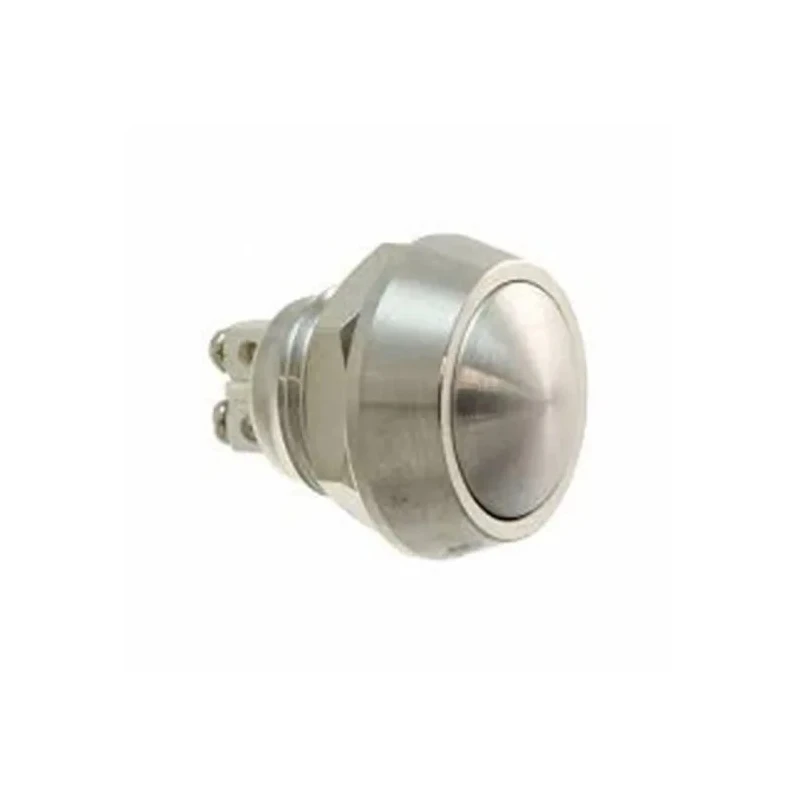

Bulgin Momentary Push Button Switch Panel Mount 12 mm Cutout SPST, Silver Actuator, IP67, 36V MMP0120/NNB67/P

The Bulgin MMP0120/NNB67/P is a high-quality momentary push button switch designed for panel mounting with a precise 12 mm cutout. Featuring a silver-colored round actuator, this switch is sealed to IP67, making it highly resistant to dust and water ingress. It supports a contact configuration of SPST and is rated for 36 V AC/DC operation, suitable for a range of electrical and industrial control applications.

This switch operates on a push-to-make mechanism, providing momentary action for quick and reliable switching. The device is available with a variety of LED colors, including amber, blue, green, orange, red, and yellow, enabling versatile status indication options as per application needs.

The switch terminal types include solder lugs with options for screw or pin terminals depending on specific part codes. The robust nickel plated brass body and button material ensures long-term durability. It can withstand operating temperatures ranging from -25°C to 55°C, making it well-suited for varied industrial and commercial environments.

Compliant with RoHS, this switch guarantees environmental and health safety standards. The device is rated for 2 A switch contact current providing dependable performance in control circuits. The actuator's 12 mm diameter with a raised domed profile ensures easy and ergonomic operation.

Typical use cases include applications in electrical panels, automation systems, machinery control, instrumentation, and heavy industrial equipment requiring reliable panel mounted momentary switches with robust sealing and visual indication options.

Package includes a Bulgin MMP0120/NNB67/P push button switch with standard solder lug terminals and a choice of LED colors as specified by product code suffix. The switch operates momentarily with push-to-make configuration for precise control.

Offers a robust IP67 sealing ensuring dust-tight and waterproof performance. Available with multiple LED colors including amber, blue, green, orange, red, and yellow. Suitable for panel mounting with solder lug terminals for easy integration.

Wide operating temperature range from -25°C to 55°C for versatile environments. Compliant with RoHS standards ensuring environmental safety. Switch contact current rated at 2 A for reliable electrical performance. Constructed with nickel plated brass body and button for durability.

Offers choice of termination type depending on part code suffix: screw terminals or pin terminals. Raised domed 12 mm diameter actuator offers ergonomic operation. Explore the full range of Bulgin Push Button Switches and components at EnvMart for industrial, electrical, and automation applications.
