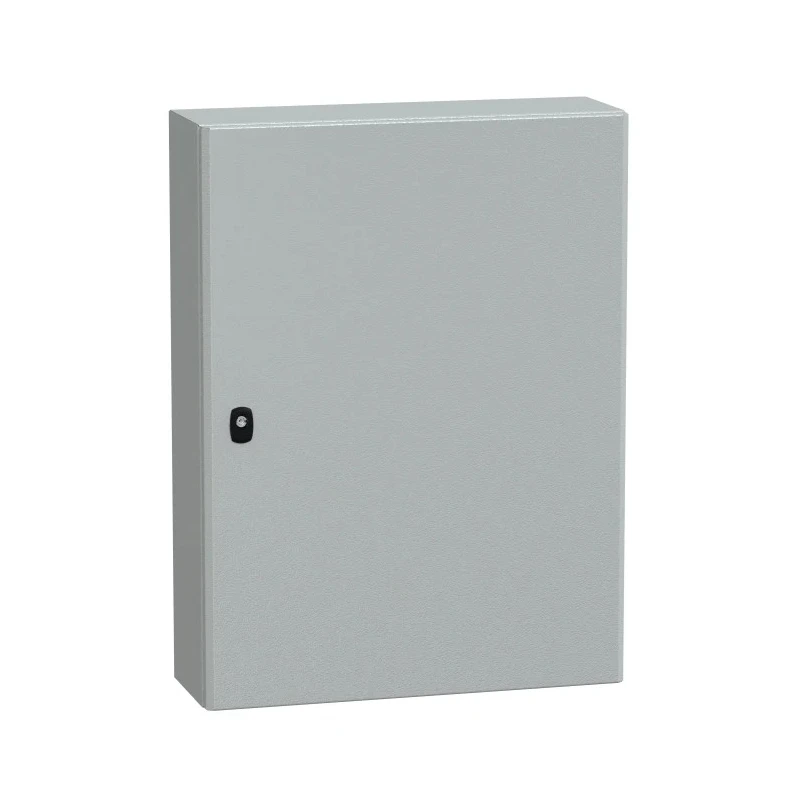

RS PRO PanelSet S3D Series Steel Wall Box Enclosure 800 mm x 600 mm x 200 mm IP66 IK10 NSYS3D8620P

Schneider Electric NSYS3D8620P PanelSet S3D Series Steel Wall Box Enclosure, measuring 800 mm in height, 600 mm in width, and 200 mm in depth, is engineered to provide robust and reliable protection for electrical components in industrial and commercial environments. This wall-mounted enclosure features IP66-rated protection, making it dust-tight and protected against strong water jets, and IK10 impact resistance rating for superior mechanical protection.

The enclosure body is constructed from high-quality steel with a durable epoxy-polyester powder finish in Grey RAL 7035, ensuring long-term corrosion resistance and UV durability. It sports a one-piece folded and welded body design with a folded cross structure steel sheet for enhanced strength. The door opens a full 120° with a reversible plain sheet design, reinforced by a 20 mm return fold to keep rigidity. The door is secured via a 3-point lock system with a 3 mm double bar lock insert, guaranteeing security and safety.

This model includes a galvanized steel mounting plate and a standard cable gland plate for cable entry and strain relief. The hinges, door, cable gland plate, and mounting plate are removable, providing flexibility during installation and servicing. The enclosure conforms to multiple international standards such as UL, BV, LR, RoHS, REACH, IEC 62208, cUL, and DNV, certifying quality and environmental compliance.

Designed for multipurpose use, it suits applications in electrical, automation, manufacturing, HVAC, water treatment, and other industrial sectors requiring durable steel enclosures with high ingress protection. The compact and robust design ensures long-lasting performance in harsh environments while maintaining ease of maintenance.

Durable steel body with epoxy-polyester powder coating. IP66 and IK10 rated for high ingress and impact protection. Includes mounting plate and cable gland plate for flexible installation. Complies with various international standards and environmental regulations.

Reversible 120° door with 3-point lock and double bar lock for secure access. Suitable for industrial, commercial, and manufacturing applications. Designed for easy installation, maintenance, and long-term reliability. Explore the wide range of Schneider Electric electrical enclosures and Wall Boxes designed for demanding industrial environments at EnvMart.
