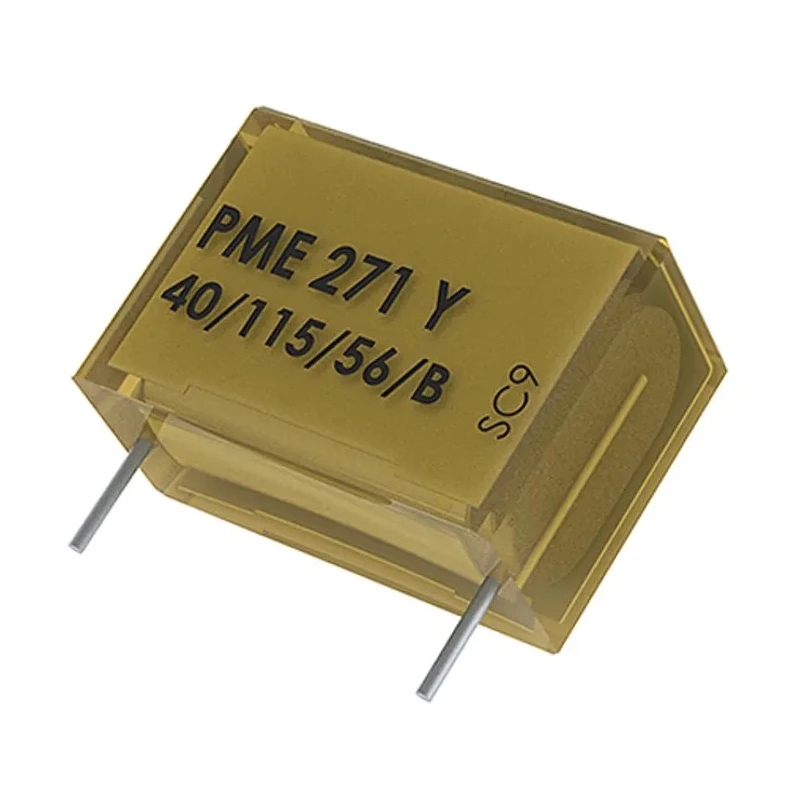

KEMET PME271 Paper Capacitor Y2 300V AC 300 V DC Through Hole, 22nF, 15.2mm Pitch, 115°C

Free Delivery in India | Lowest Global Shipping Charges

KEMET PME271 Paper Capacitor Y2 300V AC 300 V DC Through Hole, 22nF, 15.2mm Pitch, 115°C

Name: KEMET PME271 Paper Capacitor Y2 300V AC 300 V DC Through Hole, 22nF, 15.2mm Pitch, 115°C
Brand: KEMET
SKU: 143151
Price: 1.37 USD
Availability: InStock



Category Film Capacitors Brand KEMET Condition New

Specifications

Country of Origin	Finland
Display	screen
Brand	KEMET
Height	13mm
Length	18.5mm
Model	PME271
Depth	7.3mm
Mount Type	Through Hole
Series	PME271
Maximum Operating Temperature	115°C
Capacitance	22nF
Standards/Approvals	UL, CAN/CSA E60384-14-09, EN/IEC 60384-14
Pin Count	2
Rated AC Voltage	300V ac
Rated DC Voltage	300V dc
Lead Pitch	15.2mm
Lead Diameter	0.8mm
Suppression Class	Y2
Capacitance tolerance	±20%

Key Features

This capacitor uses metallised paper technology with an epoxy resin casing ensuring flame retardant properties and reliability.
It has a capacitance tolerance of ±20%, suitable for suppression class Y2 applications.
Constructed to meet UL, CAN/CSA E60384-14-09, and EN/IEC 60384-14 standards.
Features a lead diameter of 0.8mm and package size dimensions of 18.5mm length, 13mm height, and 7.3mm depth.
Designed for use in electromagnetic interference suppression in line-to-earth circuits.
Capable of operating continuously in temperatures from -40°C to +115°C.
RoHS compliant with lead-free terminations and 100% factory screening at 3000 V DC.
Available with tape and reel packaging compliant with IEC 60286 - 2.

Product Description

KEMET PME271YB5220MR30 is a paper capacitor from the PME271 series designed for through hole mounting. It offers a capacitance of 22nF with a rated AC voltage of 300V and DC voltage of 300V. This capacitor features metallised paper technology encapsulated in epoxy resin to ensure flame retardant safety and reliability in circuit suppression applications.

With a lead pitch of 15.2mm and pin diameter of 0.8mm, the capacitor measures 18.5mm in length, 13mm in height, and 7.3mm in depth suitable for compact PCB mounting. It meets international safety and performance standards including UL, CAN/CSA E60384-14-09, and EN/IEC 60384-14.

Operating temperature ranges from -40°C to +115°C, making it suitable for a wide range of industrial, commercial, and HVAC applications. The device is fully RoHS compliant and supports electromagnetic interference suppression typical in line-to-earth circuits requiring Y2 class capacitors.

The PME271 series capacitors are self-healing with excellent stability under frequent overvoltage conditions and high dV/dt capability, ensuring long service life in active and passive flame retardant environments.

Typical industrial uses include filtering and suppression in power supplies, consumer electronics, and control systems to improve electromagnetic compatibility and reduce interference for sensitive equipment.

This capacitor is constructed from metallised paper with epoxy resin casing for flame retardance and durability. It satisfies automotive standard exclusions and features a capacitance tolerance of ±20%. Rated for 300V AC and 300V DC continuous operation at up to 115°C.

Lead pitch and pin dimensions allow reliable through hole soldering and mechanical stability. Compliant with ENEC, UL, cUL, and CQC approvals, ensuring global industrial acceptance. Manufactured in Finland with high-quality standards and 100% factory screening to 3000 V DC.

Set includes 1 piece KEMET PME271YB5220MR30 Paper Capacitor packaged suitably for industrial and laboratory use. This product is ideal for engineers and technicians working in electromagnetic interference suppression and circuit protection.
