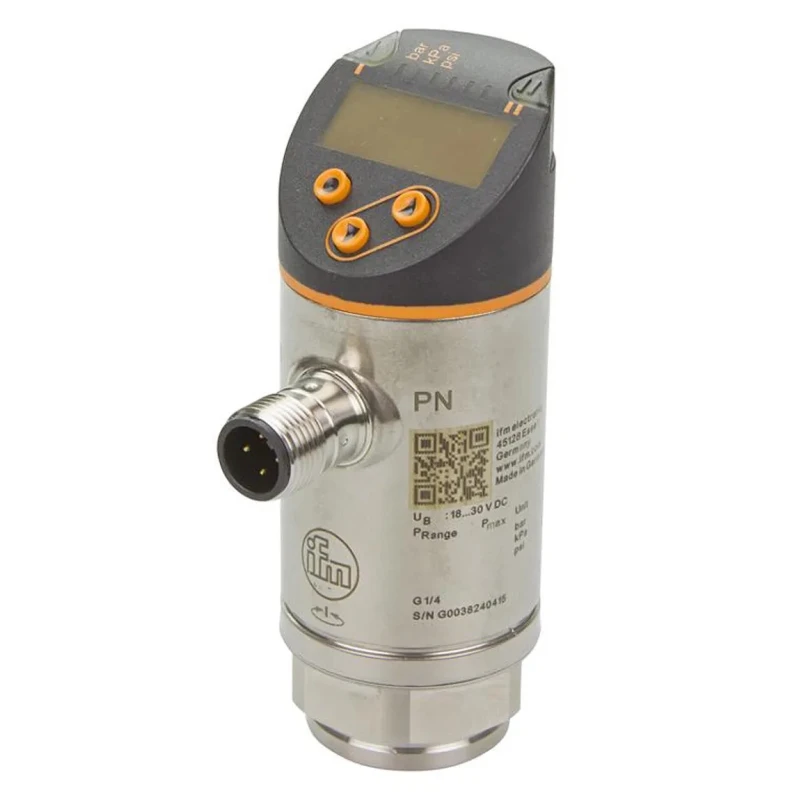

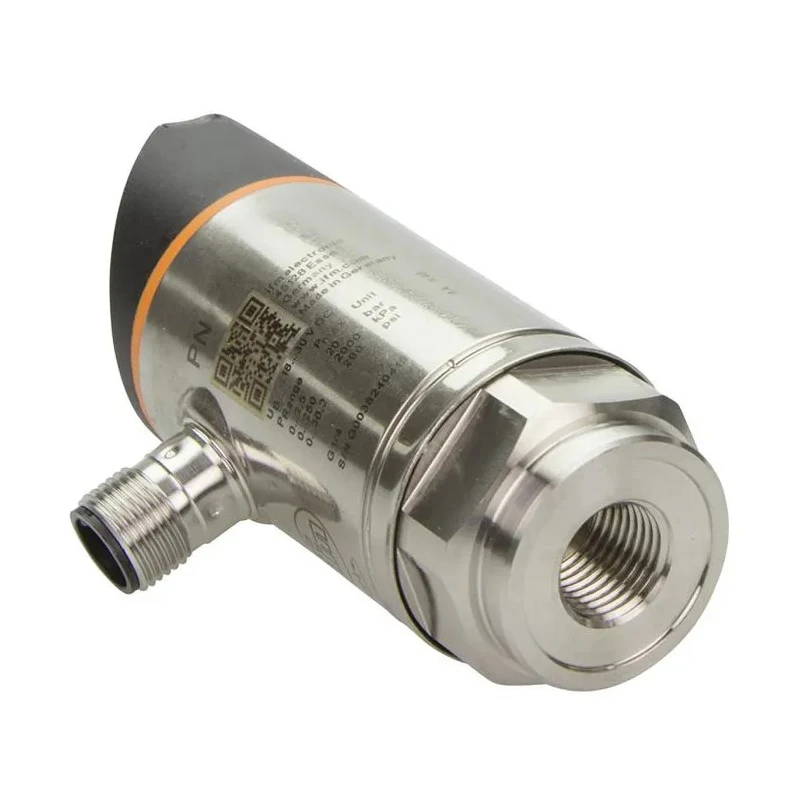

ifm electronic PN Series Pressure Sensor, PNP NO/NC, Analogue Output 0 bar to 250 bar, Relative Reading, IP65/IP67 PN3071
Specifications
| Country of Origin | Germany |
|---|---|
| Accuracy | ±0.5 % |
| Brand | ifm electronic |
| Response time | 3ms |
| Model | PN3071 |
| IP Rating | IP65, IP67 |
| Housing Material | Fibreglass Reinforced PBT GF30, Stainless Steel |
| Output type | PNP NO/NC, Analogue |
| Series | PN |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -25°C |
| Maximum Pressure Measurement | 250bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 30V dc |
| Minimum Supply Voltage | 18V |
| Pressure Reading Type | Relative |
| Media Measured | Fluid |
Key Features
- Contains a fibreglass reinforced PBT GF30 and stainless steel housing for durability.
- Features a large 4-digit alphanumeric display with visual LED switching state indication.
- Supports IO-Link communication for easy integration and configuration.
- Operates reliably from -25°C up to 80°C with an IP65 and IP67 protection rating.
- Highly stable ceramic measuring element tolerant of overpressure and with low zero offset drift.
- Compliance with DIN EN and UL standards ensures robust industrial applicability.
- Fast response time of 3 milliseconds for timely pressure monitoring.
- Minimum supply voltage requirement is 18V with maximum up to 30V DC.
Product Description
ifm electronic PN3071 is a versatile pressure sensor from the PN Series designed for industrial applications requiring relative pressure measurement between 0 bar and 250 bar. Equipped with analogue output and a PNP normally open/normally closed switching output, this sensor facilitates real-time pressure monitoring and control.
The sensor housing is constructed from fibreglass reinforced PBT GF30 combined with stainless steel, providing robust resistance against harsh environments. The device features a bright 4-digit alphanumeric display that highlights switching states with clear red and green LED indications for operational clarity.
With IO-Link communication capability, the PN3071 sensor allows independent setting of switch points and offers excellent configurability. Operating within a wide temperature range of -25°C to 80°C and rated IP65/IP67, it ensures reliable performance in demanding industrial, automation, and process control settings.
This sensor uses a highly stable ceramic measuring element that tolerates overpressure while maintaining low zero offset or drift due to ageing or temperature variations. It delivers an impressive accuracy of ±0.5% and a rapid response time of 3 milliseconds, making it suitable for HVAC, manufacturing, laboratory, and fluid system applications.
Fibreglass reinforced PBT GF30 and stainless steel housing material provides mechanical and chemical resistance. Compact design enables flexible sensor orientation and installation. Supports pressure measurement standards including DIN EN 60068-2-6, DIN EN 60068-2-27, and IEC 61131-9 compliance.
Ensures safety and electromagnetic compatibility with DIN EN 61000-6-2 and DIN EN 61000-6-3 certifications. Wide supply voltage range from 18V to 30V DC for versatile industrial power compatibility. Highly visible LED indicators facilitate easy status verification during operation and maintenance.
Package contains one PN3071 pressure sensor. Ideal for use across industrial automation, water treatment, and fluid flow control systems requiring reliable pressure monitoring and pressure switch feedback.
Explore more Pressure Sensors and automation equipment at EnvMart for reliable, high-quality products from trusted manufacturers like ifm electronic.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures relative pressure from 0 bar to 250 bar.
It has an accuracy of ±0.5%.
The PN3071 operates reliably within a temperature range of -25°C to 80°C.
It features a PNP normally open/normally closed output along with an analogue output.
The response time of the PN3071 is 3 milliseconds.
The housing is made from fibreglass reinforced PBT GF30 and stainless steel, providing robust resistance.
This sensor has an IP65 and IP67 protection rating, making it suitable for harsh environments.
The sensor requires a supply voltage between 18V and 30V DC.
Yes, it supports IO-Link communication for easy integration and configuration.
It is designed to measure fluid media.
It complies with DIN EN and UL standards, ensuring robust industrial applicability.
This sensor is ideal for industrial automation, water treatment, and fluid flow control systems requiring reliable pressure monitoring.
