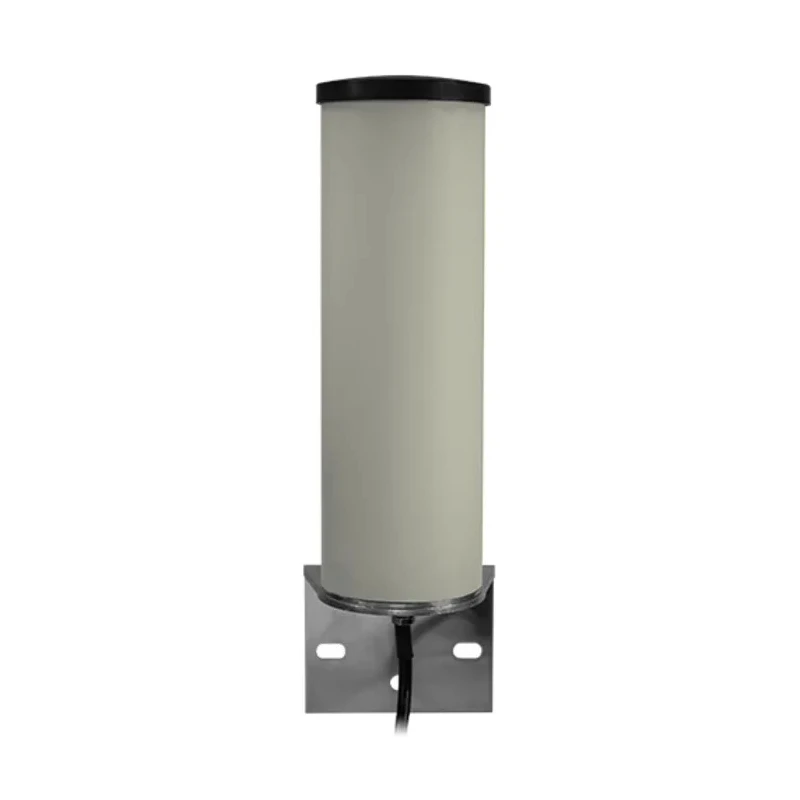

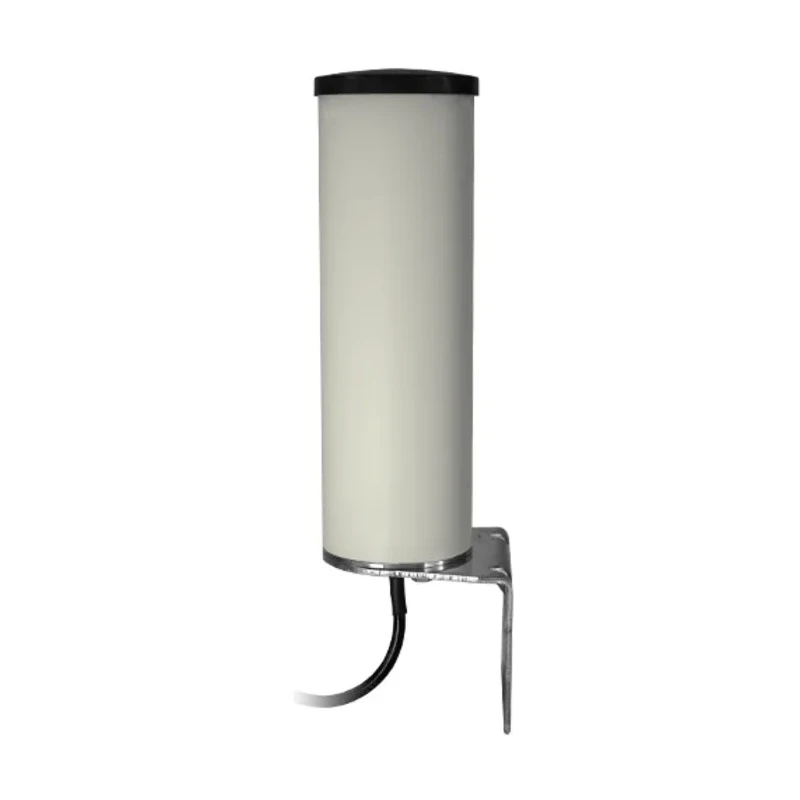

Siretta Whip Multi-Band Antenna with SMA Male Connector, 698 MHz to 5.85 GHz, Omni-Directional OSCAR40/10M/LL/SMAM/S/S/33

Siretta OSCAR40/10M/LL/SMAM/S/S/33 is a whip style multi-band antenna designed for external mounting with a 10 meter low loss cable and SMA male connector. Covering a wide frequency range from 698 MHz to 5.85 GHz, this antenna supports diverse RF protocols such as 5G NR, 4G LTE, 3G UMTS, 2G GSM, Wi-Fi 6, Bluetooth, ZigBee, LoRaWAN, ISM bands, and more, making it ideal for modern wireless communication systems.

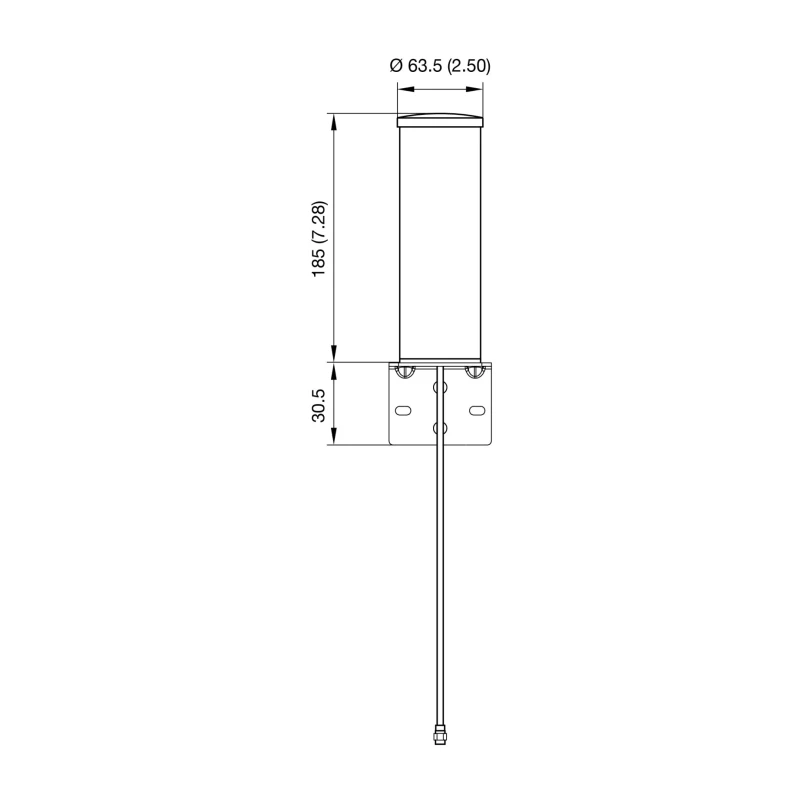

The antenna provides 5 dB gain with an omni-directional radiation pattern and vertical polarization to ensure reliable signal transmission and reception. Its compact design with dimensions of 185 mm height and 60 mm diameter, along with a weight of 400 grams, allows discrete and flexible installation. Constructed with a durable aluminium radiator and a UV resistant PVC radome, the antenna is suitable for outdoor environments and resists weathering effects.

Mounting options include wall or pole installations, aided by the supplied aluminium bracket and clamp. The 10 meter LMR195 cable with SMA male connector offers low loss signal feed and compatibility with various radio equipment. The unit is RoHS compliant and can handle a maximum input power of 50 watts, accommodating typical wireless applications in industrial, commercial, and public wireless systems.

Operating temperature ranges from -40 to 70 degrees Celsius, ensuring performance in harsh climatic conditions. This antenna supports integrated wireless network protocols for cellular, data, IoT, and private system use cases such as RFID and ISM band communications.

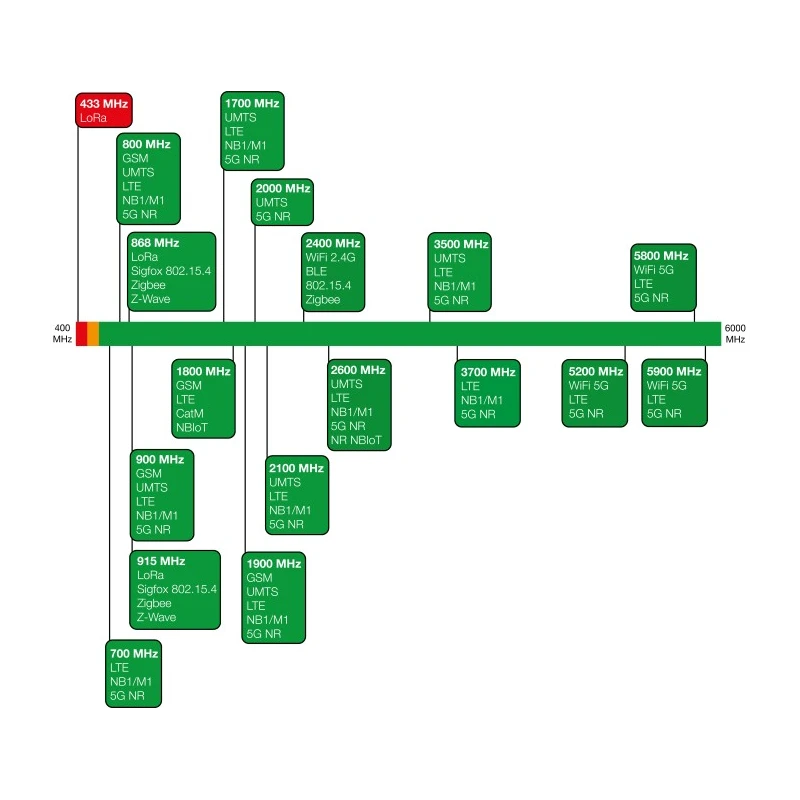

Supports 5G NR, 4G LTE, 3G UMTS, 2G GSM/GPRS quad-band. Compatible with dual band Wi-Fi 2.4 GHz and 5 GHz signals. Supports Bluetooth, ZigBee, IEEE 802.15.4, LoRaWAN, Sigfox, ISM 868 MHz/915 MHz. Compact omnidirectional whip antenna suitable for discrete installations.

Durable housing with aluminium radiator and UV protected PVC radome. Wall or pole mountable with supplied bracket and clamp. Low VSWR, high radiation efficiency, and consistent signal performance. Rated for 50 W max input power and 50 Ohm impedance.

Operating temperature -40 to 70 °C with storage from -50 to 75 °C.

This antenna is ideal for industrial, commercial, and public wireless communication systems including cellular networks, IoT applications, Wi-Fi bridging, and RFID deployments. Its multi-band design makes it a versatile solution for modern radio equipment needs.
