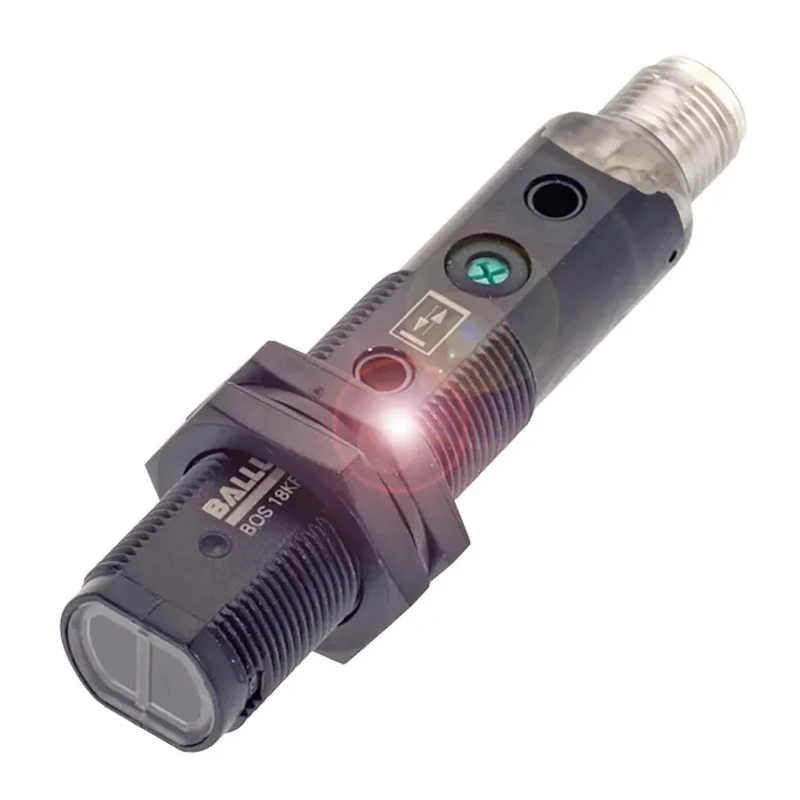

BALLUFF Light Intensity Sensor Infrared 700 mm, PNP Output, 100 mA, IP67, 30V BOS 18KF 124-3791

Free Delivery in India | Lowest Global Shipping Charges

BALLUFF Light Intensity Sensor Infrared 700 mm, PNP Output, 100 mA, IP67, 30V BOS 18KF 124-3791

Name: BALLUFF Light Intensity Sensor Infrared 700 mm, PNP Output, 100 mA, IP67, 30V BOS 18KF 124-3791
Brand: BALLUFF
SKU: 141993
Price: 160.19 USD
Availability: InStock



Category Sensor Brand BALLUFF Condition New

Specifications

Country of Origin	Italy
Brand	BALLUFF
Light Source	Infrared
Model	124-3791
IP Rating	IP67
Mount Type	Flush
Housing Material	Polybutylene Terephthalate
Output type	PNP
Series	BOS 18KF
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-25°C
Maximum Current	100mA
Switching Frequency	1kHz
Terminal type	4-Pin Connector
Standards/Approvals	RoHS, IEC, CE, cULus
Maximum Supply Voltage	30V
Maximum Detection	700mm

Key Features

The sensor features an infrared light source ensuring accurate light intensity detection up to 700 mm.
Equipped with a PNP output type supporting a maximum current of 100 mA for reliable signal transmission.
Built with a durable polybutylene terephthalate housing and offers an IP67 rating for robust protection against dust and water.
Includes a 4-pin connector terminal with LED status display for easy installation and monitoring.
Operates efficiently within a temperature range of -25°C to 55°C, suitable for harsh environments.
Complies with RoHS, IEC, CE, and cULus standards ensuring safety and quality.
Flush mount type provides seamless integration in machinery and systems.
Powered by a maximum supply voltage of 30V, supporting stable and consistent performance.

Product Description

BALLUFF 124-3791 Light Intensity Sensor Infrared 700 mm, PNP output sensor offers high precision and durability for industrial and automation use cases. Designed to detect light intensity with infrared technology, it provides dependable performance for manufacturing, control gear applications, and automation systems.

The sensor incorporates a polybutylene terephthalate housing material, which ensures resistance to wear and environmental stress. Rated IP67, it offers complete protection against dust ingress and is waterproof, supporting deployment in demanding industrial settings.

Equipped with a 4-pin connector and LED status display, the sensor allows for straightforward installation and quick operational status checks. The flush mount type supports seamless integration within control panels and automated equipment.

The sensor supports a maximum current of 100 mA with a PNP output and operates on a maximum supply voltage of 30V. It functions reliably across a wide temperature range from -25°C to 55°C, making it suitable for diverse industrial environments.

Compliance with international standards such as RoHS, IEC, CE, and cULus affirms the sensor's safety, environmental friendliness, and quality assurance. This makes it ideal for industrial, manufacturing, automation, and control system applications.

The sensor features an infrared light source ensuring accurate light intensity detection up to 700 mm. Equipped with a PNP output type supporting a maximum current of 100 mA for reliable signal transmission. Built with a durable polybutylene terephthalate housing and offers an IP67 rating for robust protection against dust and water.

Includes a 4-pin connector terminal with LED status display for easy installation and monitoring. Operates efficiently within a temperature range of -25°C to 55°C, suitable for harsh environments. Complies with RoHS, IEC, CE, and cULus standards ensuring safety and quality.

Flush mount type provides seamless integration in machinery and systems. Powered by a maximum supply voltage of 30V, supporting stable and consistent performance. Explore more in the Sensors category on EnvMart for advanced industrial and automation Sensor solutions.
